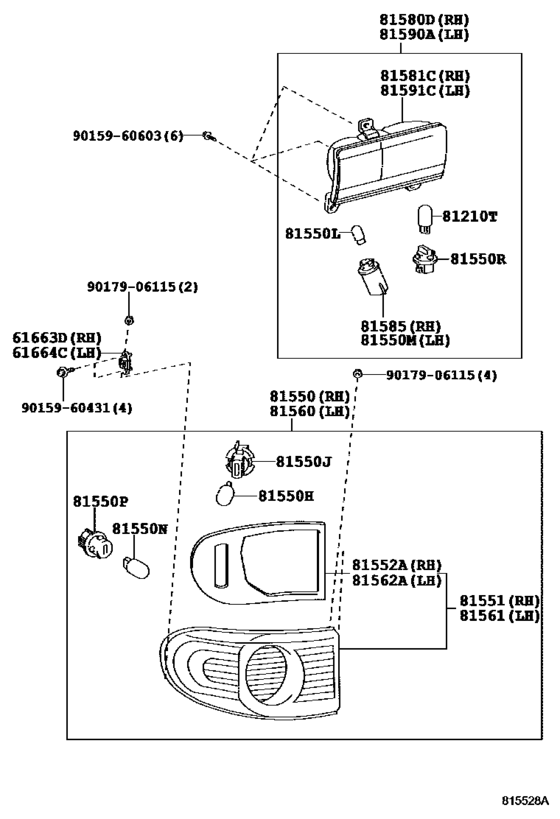

Rear Combination Lamp ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61663D
|
61663D
61663-35010 Support, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [11.2010 -] GSJ15 |
61663-35010 |
from US $9.26 |
||
|
61664C
|
61664C
61664-35010 Support, Rear Combination Lamp, Lh[11.2010 -] GSJ15 |
61664-35010 |
from US $10.31 |
||
|
81210T
|
81210T
90981-13043 Bulb (12V 21W)[11.2010 -] GSJ15 |
90981-13043 |
from US $1.50 |
||
|
81550
|
81550
81550-35351 Lamp Assy, Rear Combination, Rh[11.2010 -] GSJ15 |
81550-35351 |
US $282.46 |
||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[11.2010 -] GSJ15 |
90981-13044 |
from US $1.57 |
||
|
81550J
|
81550J
90075-60002 Socket, Tail & Stop Lamp[11.2010 -] GSJ15 |
90075-60002 |
from US $3.80 |
||
|
81550L
|
81550L
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[11.2010 -] GSJ15 |
90981-11059 |
from US $2.91 |
||
|
81550M
|
81550M
90075-60001 Socket And Wire, License Plate Lamp[11.2010 -] GSJ15 |
90075-60001 |
from US $6.19 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[11.2010 -] GSJ15 |
90981-11059 |
from US $2.91 |
||
|
81550P
|
81550P
90075-60021 Socket, Lamp[11.2010 -] GSJ15 |
90075-60021 |
from US $6.08 |
||
|
81550R
|
81550R
90075-60082 Socket, Rear Fog LampREAR FOG LAMP [11.2010 -] GSJ15 |
90075-60082 |
US $7.86 |
||
|
81551
|
81551
81551-35351 Lens, Rear Combination Lamp, Rh[11.2010 -] GSJ15 |
81551-35351 |
from US $113.77 |
||
|
81552A
|
81552A
81552-35341 Gasket, Rear Combination Lamp, Rh[11.2010 -] GSJ15 |
81552-35341 |
US $19.66 |
||
|
81560
|
81560
81560-35351 Lamp Assy, Rear Combination, Lh[11.2010 -] GSJ15 |
81560-35351 |
US $282.46 |
||
|
81561
|
81561
81561-35351 Lens, Rear Combination Lamp, Lh[11.2010 -] GSJ15 |
81561-35351 |
from US $113.77 |
||
|
81562A
|
81562A
81562-35301 Gasket, Rear Combination Lamp, Lh[11.2010 -] GSJ15 |
81562-35301 |
US $21.14 |
||
|
81580D
|
81580D
81580-35021
Lamp Assy, Rear, Rh
[11.2010 -] GSJ15 |
81580-35021 |
— | ||
|
81581C
|
81581C
81581-35021 Lens And Body, Rear Lamp, Rh[11.2010 -] GSJ15 |
81581-35021 |
US $155.04 |
||
|
81585
|
81585
81585-35020 Socket & Wire, Rear LampREAR LAMP [11.2010 -] GSJ15 |
81585-35020 |
US $17.65 |
||
|
81590A
|
81590A
81590-35021
Lamp Assy, Rear, Lh
[11.2010 -] GSJ15 |
81590-35021 |
— | ||
|
81591C
|
81591C
81591-35021 Lens, Rear Lamp, Lh[11.2010 -] GSJ15 |
81591-35021 |
US $155.04 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.70 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.61 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.51 |
