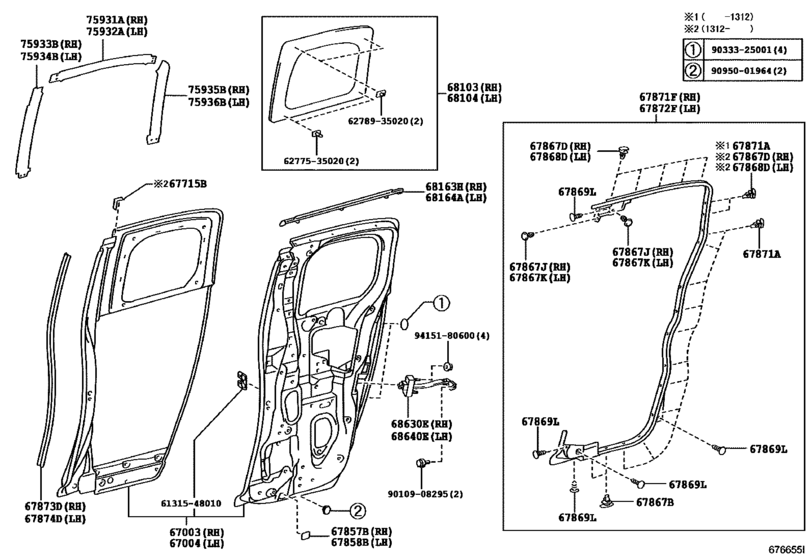

Rear Door Panel & Glass ([11.2010 - ] ﾄﾞｱﾊﾟﾈﾙ (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-35211 Panel Sub-Assy, Rear Door, RhREAR DOOR, RH [11.2010 - 01.2013] GSJ15 |
67003-35211 |
US $698.88 |
||
| replacement | |||||
|
67003
|
67003
67003-35212 Panel Sub-Assy, Rear Door, Rh[11.2010 - 01.2013] GSJ15 |
67003-35212 |
from US $502.72 |
||
|
67003
|
67003
67003-35212 Panel Sub-Assy, Rear Door, Rh[02.2013 -] GSJ15 |
67003-35212 |
from US $502.72 |
||
|
67004
|
67004
67004-35211 Panel Sub-Assy, Rear Door, LhREAR DOOR, LH [11.2010 - 01.2013] GSJ15 |
67004-35211 |
US $698.88 |
||
| replacement | |||||
|
67004
|
67004
67004-35212 Panel Sub-Assy, Rear Door, Lh[11.2010 - 01.2013] GSJ15 |
67004-35212 |
from US $562.27 |
||
|
67004
|
67004
67004-35212 Panel Sub-Assy, Rear Door, Lh[02.2013 -] GSJ15 |
67004-35212 |
from US $562.27 |
||
|
67715B
|
67715B
67715-35020 Pad, Rear Door Trim[12.2013 -] GSJ15 右側 |
67715-35020 |
US $5.38 |
||
|
67715B
|
67715B
67716-35010 Pad, Rear Door Trim[12.2013 -] GSJ15 左側 |
67716-35010 |
US $5.38 |
||
|
67857B
|
67857B
67857-35040 Protector, Rear Door Panel, Rh[11.2010 -] GSJ15 |
67857-35040 |
US $5.73 |
||
|
67858B
|
67858B
67857-35040 Protector, Rear Door Panel, Rh[11.2010 -] GSJ15 |
67857-35040 |
US $5.73 |
||
|
67867B
|
67867B
90467-04034 Clip[11.2010 -] GSJ15 |
90467-04034 |
US $1.08 |
||
|
67867D
|
67867D
67867-52040 Retainer(For Front Door Weatherstrip)[11.2010 - 12.2013] GSJ15 |
67867-52040 |
US $1.79 |
||
|
67867J
|
67867J
67869-26050 Clip, Door Weatherstrip[10.2014 -] GSJ15 |
67869-26050 |
US $1.79 |
||
|
67867J
|
67867J
90467-06084 Clip(For Headlamp Cover Seal)[11.2010 - 09.2014] GSJ15 |
90467-06084 |
from US $0.99 |
||
|
67867K
|
67867K
67869-26050 Clip, Door Weatherstrip[10.2014 -] GSJ15 |
67869-26050 |
US $1.79 |
||
|
67867K
|
67867K
90467-06084 Clip(For Headlamp Cover Seal)[11.2010 - 09.2014] GSJ15 |
90467-06084 |
from US $0.99 |
||
|
67868D
|
67868D
67867-52030 Retainer(For Front Door Weatherstrip)[11.2010 - 12.2013] GSJ15 |
67867-52030 |
US $1.79 |
||
|
67869L
|
67869L
67869-20030 Clip, Door Weatherstrip(For Front Door)[11.2010 -] GSJ15 |
67869-20030 |
from US $1.79 |
||
|
67871A
|
67871A
67867-12150 Clip(For Hood Air Intake Duct Seal)[12.2013 -] GSJ15 |
67867-12150 |
from US $1.79 |
||
|
67871F
|
67871F
67871-35071
Weatherstrip, Access Panel, Rh
[11.2010 - 05.2011] GSJ15 |
67871-35071 |
— | ||
| replacements | |||||
|
67871F
|
67871F
67715-35020 Pad, Rear Door Trim[11.2010 - 05.2011] GSJ15 |
67715-35020 |
US $5.38 |
||
|
67871F
|
67871F
67871-35074 Weatherstrip, Access Panel, Rh[11.2010 - 05.2011] GSJ15 |
67871-35074 |
from US $67.98 |
||
|
67871F
|
67871F
67871-35073
Weatherstrip, Access Panel, Rh
[11.2010 - 05.2011] GSJ15 |
67871-35073 |
— | ||
| replacements | |||||
|
67871F
|
67871F
67715-35020 Pad, Rear Door Trim[11.2010 - 05.2011] GSJ15 |
67715-35020 |
US $5.38 |
||
|
67871F
|
67871F
67871-35074 Weatherstrip, Access Panel, Rh[11.2010 - 05.2011] GSJ15 |
67871-35074 |
from US $67.98 |
||
|
67871F
|
67871F
67871-35072 Weatherstrip, Access Panel, Rh[06.2011 - 01.2013] GSJ15 |
67871-35072 |
US $81.54 |
||
| replacements | |||||
|
67871F
|
67871F
67715-35020 Pad, Rear Door Trim[06.2011 - 01.2013] GSJ15 |
67715-35020 |
US $5.38 |
||
|
67871F
|
67871F
67871-35074 Weatherstrip, Access Panel, Rh[06.2011 - 01.2013] GSJ15 |
67871-35074 |
from US $67.98 |
||
|
67871F
|
67871F
67871-35073
Weatherstrip, Access Panel, Rh
[02.2013 - 12.2013] GSJ15 |
67871-35073 |
— | ||
| replacements | |||||
|
67871F
|
67871F
67715-35020 Pad, Rear Door Trim[02.2013 - 12.2013] GSJ15 |
67715-35020 |
US $5.38 |
||
|
67871F
|
67871F
67871-35074 Weatherstrip, Access Panel, Rh[02.2013 - 12.2013] GSJ15 |
67871-35074 |
from US $67.98 |
||
|
67871F
|
67871F
67871-35074 Weatherstrip, Access Panel, Rh[12.2013 -] GSJ15 |
67871-35074 |
from US $67.98 |
||
|
67872F
|
67872F
67872-35071
Weatherstrip, Access Panel, Lh
[11.2010 - 05.2011] GSJ15 |
67872-35071 |
— | ||
| replacements | |||||
|
67872F
|
67872F
67716-35010 Pad, Rear Door Trim[11.2010 - 05.2011] GSJ15 |
67716-35010 |
US $5.38 |
||
|
67872F
|
67872F
67872-35074 Weatherstrip, Access Panel, Lh[11.2010 - 05.2011] GSJ15 |
67872-35074 |
from US $67.62 |
||
|
67872F
|
67872F
67872-35072
Weatherstrip, Access Panel, Lh
[06.2011 - 01.2013] GSJ15 |
67872-35072 |
— | ||
| replacements | |||||
|
67872F
|
67872F
67716-35010 Pad, Rear Door Trim[06.2011 - 01.2013] GSJ15 |
67716-35010 |
US $5.38 |
||
|
67872F
|
67872F
67872-35074 Weatherstrip, Access Panel, Lh[06.2011 - 01.2013] GSJ15 |
67872-35074 |
from US $67.62 |
||
|
67872F
|
67872F
67872-35073 Weatherstrip, Access Panel, Lh[02.2013 - 12.2013] GSJ15 |
67872-35073 |
US $67.56 |
||
| replacements | |||||
|
67872F
|
67872F
67716-35010 Pad, Rear Door Trim[02.2013 - 12.2013] GSJ15 |
67716-35010 |
US $5.38 |
||
|
67872F
|
67872F
67872-35074 Weatherstrip, Access Panel, Lh[02.2013 - 12.2013] GSJ15 |
67872-35074 |
from US $67.62 |
||
|
67872F
|
67872F
67872-35074 Weatherstrip, Access Panel, Lh[12.2013 -] GSJ15 |
67872-35074 |
from US $67.62 |
||
|
67873D
|
67873D
67873-35010 Weatherstrip, Access Panel, Rear RhACCESS PANEL, REAR RH [11.2010 -] GSJ15 |
67873-35010 |
from US $31.62 |
||
|
67874D
|
67874D
67874-35010 Weatherstrip, Access Panel, Rear LhACCESS PANEL, REAR LH [11.2010 -] GSJ15 |
67874-35010 |
from US $41.27 |
||
|
68103
|
68103
68103-35082
Glass Sub-Assy, Rear Door, Rh
[11.2010 -] GSJ15 ＊ＴＥＭ，厚さ＝３．１，プライバシー,バックガラス−プライバシ |
68103-35082 |
— | ||
|
68103
|
68103
68103-35092 Glass Sub-Assy, Rear Door, Rh[11.2010 -] GSJ15 ＊ＵＶＣＴ，厚さ＝３．１，グリーン |
68103-35092 |
US $103.40 |
||
|
68104
|
68104
68104-35082
Glass Sub-Assy, Rear Door, Lh
[11.2010 -] GSJ15 ＊ＴＥＭ，厚さ＝３．１，プライバシー,バックガラス−プライバシ |
68104-35082 |
— | ||
|
68104
|
68104
68104-35092 Glass Sub-Assy, Rear Door, Lh[11.2010 -] GSJ15 ＊ＵＶＣＴ，厚さ＝３．１，グリーン |
68104-35092 |
US $98.40 |
||
|
68163H
|
68163H
68163-35040
Weatherstrip, Rear Door Glass, Outer Rh
[11.2010 - 07.2011] GSJ15 |
68163-35040 |
— | ||
| replacement | |||||
|
68163H
|
68163H
68163-35041 Weatherstrip, Rear Door Glass, Outer Rh[11.2010 - 07.2011] GSJ15 |
68163-35041 |
from US $17.88 |
||
|
68163H
|
68163H
68163-35041 Weatherstrip, Rear Door Glass, Outer Rh[08.2011 -] GSJ15 |
68163-35041 |
from US $17.88 |
||
|
68164A
|
68164A
68164-35040
Weatherstrip, Rear Door Glass, Outer Lh
[11.2010 - 07.2011] GSJ15 |
68164-35040 |
— | ||
| replacement | |||||
|
68164A
|
68164A
68164-35041 Weatherstrip, Rear Door Glass, Outer Lh[11.2010 - 07.2011] GSJ15 |
68164-35041 |
from US $18.13 |
||
|
68164A
|
68164A
68164-35041 Weatherstrip, Rear Door Glass, Outer Lh[08.2011 -] GSJ15 |
68164-35041 |
from US $18.13 |
||
|
68630E
|
68630E
68640-35030 Check Assy, Access Panel, RhACCESS PANEL, RH [11.2010 -] GSJ15 |
68640-35030 |
from US $51.91 |
||
|
68640E
|
68640E
68640-35030 Check Assy, Access Panel, RhACCESS PANEL, RH [11.2010 -] GSJ15 |
68640-35030 |
from US $51.91 |
||
|
75931A
|
75931A
75931-35010 Tape, Black Out, Outer Upper RhBLACK OUT, OUTER UPPER RH [11.2010 -] GSJ15 |
75931-35010 |
from US $12.80 |
||
|
75932A
|
75932A
75932-35010 Tape, Black Out, Outer Upper LhBLACK OUT, OUTER UPPER LH [11.2010 -] GSJ15 |
75932-35010 |
from US $13.55 |
||
|
75933B
|
75933B
75933-35010 Tape, Black Out, Outer Front RhBLACK OUT, OUTER FRONT RH [11.2010 -] GSJ15 |
75933-35010 |
from US $16.74 |
||
|
75934B
|
75934B
75934-35010 Tape, Black Out, Outer Front LhBLACK OUT, OUTER FRONT LH [11.2010 -] GSJ15 |
75934-35010 |
from US $13.26 |
||
|
75935B
|
75935B
75935-35010 Tape, Black Out, Outer Rear RhBLACK OUT, OUTER REAR RH [11.2010 -] GSJ15 |
75935-35010 |
from US $15.01 |
||
|
75936B
|
75936B
75936-35010 Tape, Black Out, Outer Rear LhBLACK OUT, OUTER REAR LH [11.2010 -] GSJ15 |
75936-35010 |
from US $14.46 |
||
|
6131548010
|
6131548010
61315-48010 Retainer, Door Lock Striker |
61315-48010 |
US $4.69 |
||
|
6277535020
|
6277535020
62775-35020 Clip, Quarter Window |
62775-35020 |
US $3.94 |
||
|
6278935020
|
6278935020
62789-35020 Sash, Quarter Window, Rear Lh |
62789-35020 |
US $3.40 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.76 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.25 |
||
|
9095001964
|
9095001964
90950-01964 PLUG HOLE |
90950-01964 |
from US $1.92 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
