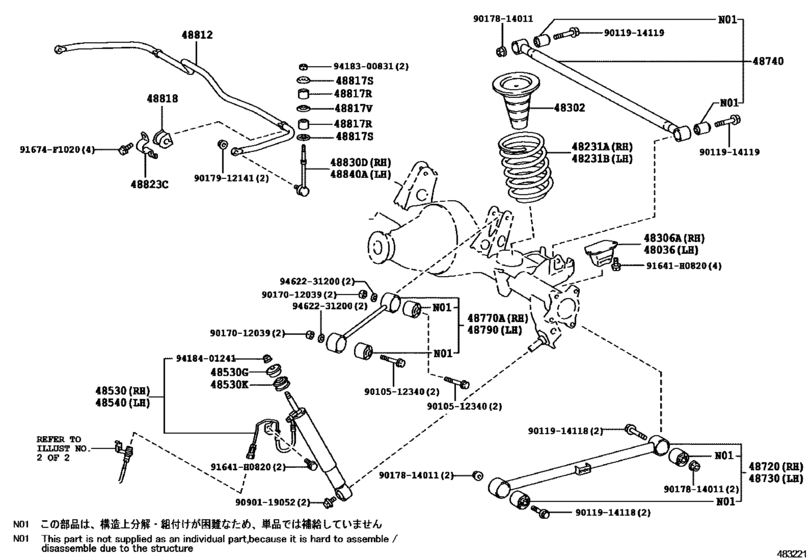

Rear Spring & Shock Absorber ([11.2010 - ] X-REAS (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48036
|
48036
48306-60180 Bumper Sub-Assy, Rear Spring, LhREAR SPRING, LH [11.2010 -] GSJ15 |
48306-60180 |
from US $28.83 |
||
|
48231A
|
48231A
48231-35420 Spring, Coil, Rear RhCOIL, REAR RH [11.2010 -] GSJ15 |
48231-35420 |
from US $108.33 |
||
|
48231B
|
48231B
48231-35420 Spring, Coil, Rear RhCOIL, REAR RH [11.2010 -] GSJ15 |
48231-35420 |
from US $108.33 |
||
|
48302
|
48302
48302-35040 Spring Sub-Assy, HollowHOLLOW [11.2010 -] GSJ15 |
48302-35040 |
from US $45.88 |
||
|
48306A
|
48306A
48306-60180 Bumper Sub-Assy, Rear Spring, LhREAR SPRING, LH [11.2010 -] GSJ15 |
48306-60180 |
from US $28.83 |
||
|
48530
|
48530
48530-09U20 Absorber Assy, Shock, Rear Rh[11.2010 -] GSJ15 マーク ４８５３０−０Ｗ０４０,オフロードパッケージ |
48530-09U20 |
US $155.04 |
||
|
48530
|
48530
48530-80537 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [11.2010 - 03.2012] GSJ15 マーク ４８５３０−３５２１０ |
48530-80537 |
US $94.64 |
||
| replacement | |||||
|
48530
|
48530
48530-80607 Absorber Assy, Shock, Rear Rh[11.2010 - 03.2012] GSJ15 マーク ４８５３０−３５２１０ |
48530-80607 |
US $102.96 |
||
|
48530
|
48530
48530-80577 Absorber Assy, Shock, Rear Rh[11.2010 -] GSJ15 マーク ４８５３０−３５２６０,アーバンパッケージ |
48530-80577 |
US $712.77 |
||
|
48530
|
48530
48530-80607 Absorber Assy, Shock, Rear Rh[03.2012 - 08.2013] GSJ15 マーク ４８５３０−３５２１１ |
48530-80607 |
US $102.96 |
||
|
48530
|
48530
48530-80687 Absorber Assy, Shock, Rear Rh[08.2013 -] GSJ15 マーク ４８５３０−３５２１２ |
48530-80687 |
US $70.76 |
||
|
48530G
|
48530G
48505-60090 Cushion, Rear Shock Absorber, No.1REAR SHOCK ABSORBER, NO.1 [11.2010 -] GSJ15 |
48505-60090 |
from US $7.57 |
||
|
48530G
|
48530G
48505-60110 Cushion, Rear Shock Absorber, No.1REAR SHOCK ABSORBER, NO.1 [11.2010 -] GSJ15 アーバンパッケージ |
48505-60110 |
from US $7.57 |
||
|
48530K
|
48530K
48505-60100 Cushion, Rear Shock Absorber, No.2REAR SHOCK ABSORBER, NO.2 [11.2010 -] GSJ15 |
48505-60100 |
from US $8.67 |
||
|
48530K
|
48530K
48505-60120 Cushion, Rear Shock Absorber, No.2REAR SHOCK ABSORBER, NO.2 [11.2010 -] GSJ15 アーバンパッケージ |
48505-60120 |
from US $10.60 |
||
|
48540
|
48540
48530-09U20 Absorber Assy, Shock, Rear Rh[11.2010 -] GSJ15 マーク ４８５３０−０Ｗ０４０,オフロードパッケージ |
48530-09U20 |
US $155.04 |
||
|
48540
|
48540
48530-80537 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [11.2010 - 03.2012] GSJ15 マーク ４８５３０−３５２１０ |
48530-80537 |
US $94.64 |
||
| replacement | |||||
|
48540
|
48540
48530-80607 Absorber Assy, Shock, Rear Rh[11.2010 - 03.2012] GSJ15 マーク ４８５３０−３５２１０ |
48530-80607 |
US $102.96 |
||
|
48540
|
48540
48530-80607 Absorber Assy, Shock, Rear Rh[03.2012 - 08.2013] GSJ15 マーク ４８５３０−３５２１１ |
48530-80607 |
US $102.96 |
||
|
48540
|
48540
48530-80687 Absorber Assy, Shock, Rear Rh[08.2013 -] GSJ15 マーク ４８５３０−３５２１２ |
48530-80687 |
US $70.76 |
||
|
48540
|
48540
48540-39885 Absorber Assy, Shock, Rear Lh[11.2010 -] GSJ15 マーク ４８５４０−３５０８０,アーバンパッケージ |
48540-39885 |
US $569.30 |
||
|
48720
|
48720
48720-35061 Arm Assy, Lower Control[11.2010 -] GSJ15 |
48720-35061 |
from US $84.48 |
||
|
48730
|
48730
48720-35061 Arm Assy, Lower Control[11.2010 -] GSJ15 |
48720-35061 |
from US $84.48 |
||
|
48740
|
48740
48740-60160 Rod Assy, Rear Lateral ControlREAR LATERAL CONTROL [11.2010 -] GSJ15 |
48740-60160 |
from US $96.36 |
||
|
48770A
|
48770A
48710-35050 Arm Assy, Upper Control[11.2010 -] GSJ15 |
48710-35050 |
from US $51.71 |
||
|
48790
|
48790
48710-35050 Arm Assy, Upper Control[11.2010 -] GSJ15 |
48710-35050 |
from US $51.71 |
||
|
48812
|
48812
48812-60240 Bar, Stabilizer, RearSTABILIZER, REAR [11.2010 -] GSJ15 |
48812-60240 |
US $111.82 |
||
|
48817R
|
48817R
48817-36011 Cushion, Stabilizer Link[11.2010 -] GSJ15 |
48817-36011 |
from US $1.41 |
||
|
48817S
|
48817S
90948-02126 Retainer, Cushion, No.1(For Rear Shock Absorber)[11.2010 -] GSJ15 |
90948-02126 |
from US $2.61 |
||
|
48817V
|
48817V
90948-02127 Retainer, Cushion, No.2(For Rear Shock Absorber)[11.2010 -] GSJ15 |
90948-02127 |
from US $2.20 |
||
|
48818
|
48818
48818-60030 Bush, Stabilizer, RearSTABILIZER, REAR [11.2010 -] GSJ15 |
48818-60030 |
from US $9.63 |
||
|
48823C
|
48823C
48823-60050 Cover, Rear Stabilizer BracketREAR STABILIZER BRACKET [11.2010 -] GSJ15 |
48823-60050 |
from US $6.60 |
||
|
48830D
|
48830D
48830-60030 Link Assy, Rear Stabilizer[11.2010 -] GSJ15 |
48830-60030 |
from US $43.68 |
||
|
48840A
|
48840A
48830-60030 Link Assy, Rear Stabilizer[11.2010 -] GSJ15 |
48830-60030 |
from US $43.68 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.76 |
||
|
91674F1020
|
91674F1020
91674-F1020 BOLT FLANGE |
91674-F1020 |
US $1.51 |
||
|
9010512340
|
9010512340
90105-12340 BOLT FLANGE |
90105-12340 |
from US $2.47 |
||
|
9011914118
|
9011914118
90119-14118 BOLT WWASHER |
90119-14118 |
from US $3.14 |
||
|
9011914119
|
9011914119
90119-14119 BOLT WWASHER |
90119-14119 |
US $4.54 |
||
|
9017012039
|
9017012039
90170-12039 NUT HEXAGON |
90170-12039 |
from US $0.84 |
||
|
9017814011
|
9017814011
90178-14011 Nut(For Suspension Lower Arm Shaft) |
90178-14011 |
from US $1.35 |
||
|
9017912141
|
9017912141
90179-12141 Nut(For Front Stabilizer Link) |
90179-12141 |
from US $0.87 |
||
|
9090119052
|
9090119052
90901-19052 BOLT WWASHER |
90901-19052 |
from US $3.85 |
||
|
9418300831
|
9418300831
94183-00831 NUT LOCK |
94183-00831 |
from US $0.63 |
||
|
9418401241
|
9418401241
94184-01241 Nut(For Front Support To Front Shock Absorber) |
94184-01241 |
from US $0.86 |
||
|
9462231200
|
9462231200
94622-31200 WASHER PLATE |
94622-31200 |
from US $1.06 |
||
