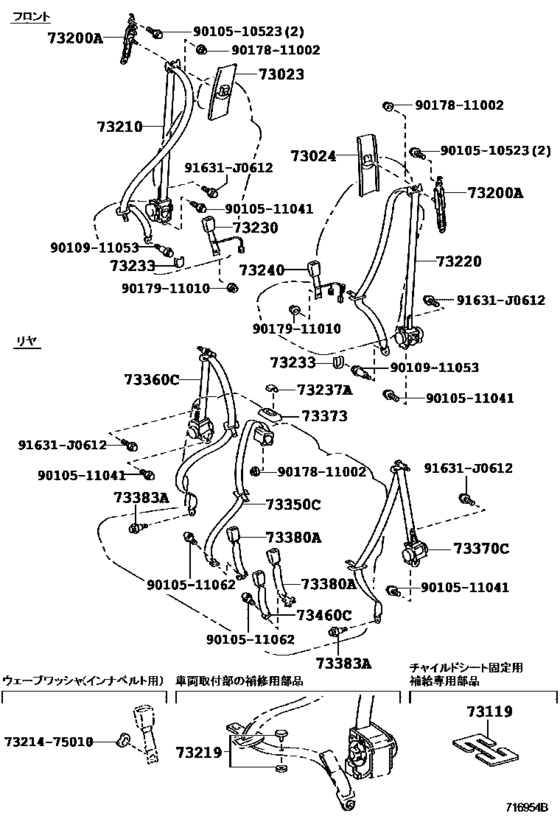

Seat Belt ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73023
|
73023
73023-35020-B0 Plate Sub-Assy, Front Shoulder Belt Anchor, RhFRONT SHOULDER BELT ANCHOR, RH [11.2010 -] GSJ15 LT.GRAY,TRIM1# |
73023-35020-B0 |
US $20.53 |
||
|
73024
|
73024
73024-35020-B0 Plate Sub-Assy, Front Shoulder Belt Anchor, LhFRONT SHOULDER BELT ANCHOR, LH [11.2010 -] GSJ15 LT.GRAY,TRIM1# |
73024-35020-B0 |
US $20.53 |
||
|
73119
|
73119
73119-22010 Plate, Seat Belt Webbing Clip[11.2010 -] GSJ15 |
73119-22010 |
from US $13.22 |
||
|
73200A
|
73200A
73200-12070 Adjuster Assy, Front Shoulder Belt Anchor[01.2013 -] GSJ15 |
73200-12070 |
from US $38.36 |
||
|
73200A
|
73200A
73200-53010 Adjuster Assy, Front Shoulder Belt Anchor[11.2010 - 12.2012] GSJ15 |
73200-53010 |
US $36.16 |
||
|
73210
|
73210
73210-35A50-C0 Belt Assy, Front Seat Outer, Rh[11.2010 -] GSJ15 BLACK,TRIM1# |
73210-35A50-C0 |
US $332.99 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[11.2010 -] GSJ15 ブラック |
73219-33010 |
from US $0.84 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[11.2010 -] GSJ15 グレー |
73219-33020 |
from US $0.87 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[11.2010 -] GSJ15 ベージュ |
73219-33030 |
from US $0.87 |
||
|
73220
|
73220
73220-35830-C0 Belt Assy, Front Seat Outer, Lh[11.2010 -] GSJ15 BLACK,TRIM1# |
73220-35830-C0 |
US $320.32 |
||
|
73230
|
73230
73230-35A20-C0 Belt Assy, Front Seat Inner, Rh[11.2010 -] GSJ15 BLACK,TRIM1# |
73230-35A20-C0 |
US $48.19 |
||
|
73233
|
73233
73233-60010-B1 Cover, Lap Belt Outer Anchor[11.2010 -] GSJ15 DK.GRAY,TRIM1# |
73233-60010-B1 |
US $3.84 |
||
|
73237A
|
73237A
73237-60040-B1 Cover, Shoulder Belt Anchor[11.2010 -] GSJ15 DK.GRAY,TRIM1# |
73237-60040-B1 |
US $3.14 |
||
|
73240
|
73240
73240-35550-C0 Belt Assy, Front Seat Inner, Lh[11.2010 -] GSJ15 BLACK,TRIM1# |
73240-35550-C0 |
US $48.19 |
||
|
73350C
|
73350C
73350-35210-C0 Belt Assy, Rear Seat, Outer Center[11.2010 -] GSJ15 BLACK,TRIM1# |
73350-35210-C0 |
US $200.93 |
||
|
73360C
|
73360C
73360-35380-C0 Belt Assy, Rear No.1 Seat, Outer Rh[11.2010 -] GSJ15 BLACK,TRIM1# |
73360-35380-C0 |
US $200.93 |
||
|
73370C
|
73370C
73370-35310-C0 Belt Assy, Rear No.1 Seat, Outer Lh[11.2010 -] GSJ15 BLACK,TRIM1# |
73370-35310-C0 |
US $200.93 |
||
|
73373
|
73373
73373-60090-B1 Cover, Rear Seat Shoulder Belt[11.2010 -] GSJ15 DK.GRAY,TRIM1# |
73373-60090-B1 |
US $20.68 |
||
|
73380A
|
73380A
73380-35170-C2 Belt Assy, Rear Seat, InnerREAR SEAT, INNER [11.2010 -] GSJ15 BLACK,TRIM1# |
73380-35170-C2 |
US $32.18 |
||
|
73383A
|
73383A
73383-60010 Hook, Rr Seat Belt[11.2010 -] GSJ15 |
73383-60010 |
US $2.27 |
||
|
73460C
|
73460C
73460-35010-C2 Belt Assy, Rear Seat Center, InnerREAR SEAT CENTER, INNER [11.2010 -] GSJ15 BLACK,TRIM1# |
73460-35010-C2 |
US $32.18 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.68 |
||
|
7321475010
|
7321475010
73214-75010 Plate, Front Seat Belt Anchor |
73214-75010 |
US $2.06 |
||
|
9010510523
|
9010510523
90105-10523 BOLT FLANGE |
90105-10523 |
from US $1.01 |
||
|
9010511041
|
9010511041
90105-11041 New Genuine Part |
90105-11041 |
US $1.24 |
||
|
9010511062
|
9010511062
90105-11062 New Genuine Part |
90105-11062 |
US $0.76 |
||
|
9010911053
|
9010911053
90109-11053 New Genuine Part |
90109-11053 |
US $4.02 |
||
|
9017811002
|
9017811002
90178-11002 NUT FLANGE |
90178-11002 |
US $1.24 |
||
|
9017911010
|
9017911010
90179-11010 NUT |
90179-11010 |
US $1.38 |
