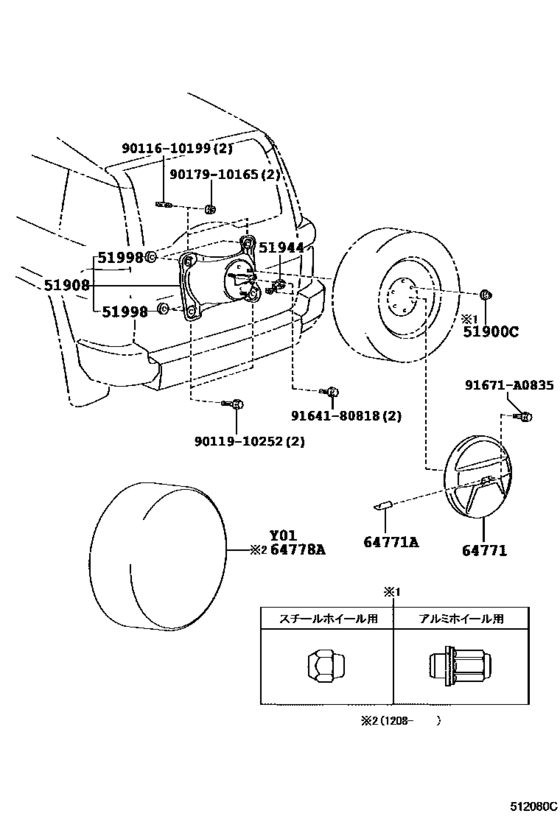

Spare Wheel Carrier ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900C
|
51900C
90942-01058 Wheel Nut[11.2010 -] GSJ15 タイヤ ＆ ディスクホイール−Ｐ２６５／７０Ｒ１７ アルミ,アルミホイール用 |
90942-01058 |
from US $5.02 |
||
|
51900C
|
51900C
90942-01104 Nut, Hub (For Axle)[11.2010 -] GSJ15 スチールホイール用 |
90942-01104 |
from US $3.76 |
||
|
51908
|
51908
51908-35040 Bracket Sub-Assy, Spare Wheel CarrierSPARE WHEEL CARRIER [11.2010 -] GSJ15 |
51908-35040 |
from US $99 |
||
|
51944
|
51944
51944-35040 Bracket, Spare Wheel Carrier, No.2SPARE WHEEL CARRIER, NO.2 [11.2010 -] GSJ15 |
51944-35040 |
from US $17.12 |
||
|
51998
|
51998
51998-35020 Pad, Spare Wheel Bracket[11.2010 -] GSJ15 |
51998-35020 |
US $0.69 |
||
|
64771
|
64771
64771-35032 Cover, Spare Wheel[11.2010 -] GSJ15 |
64771-35032 |
from US $164.56 |
||
|
64771
|
64771
64771-35040 Cover, Spare WheelSPARE WHEEL [12.2011 -] GSJ15 ブラックカラーパッケージ |
64771-35040 |
US $149.60 |
||
|
64771A
|
64771A
64773-35012 Cover, Spare Wheel[11.2010 -] GSJ15 |
64773-35012 |
from US $9.01 |
||
|
64771A
|
64771A
64773-35020 Cover, Spare WheelSPARE WHEEL [12.2011 -] GSJ15 ブラックカラーパッケージ |
64773-35020 |
US $8.53 |
||
|
64778A
|
64778A
64778-35020 Protector, Spare Wheel[08.2012 -] GSJ15 |
64778-35020 |
US $160.16 |
||
|
91671A0835
|
91671A0835
91671-A0835 BOLT FLANGE |
91671-A0835 |
from US $0.87 |
||
|
9011610199
|
9011610199
90116-10199 BOLT STUD |
90116-10199 |
US $1.51 |
||
|
9011910252
|
9011910252
90119-10252 BOLT |
90119-10252 |
US $2.75 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.91 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
US $0.96 |
