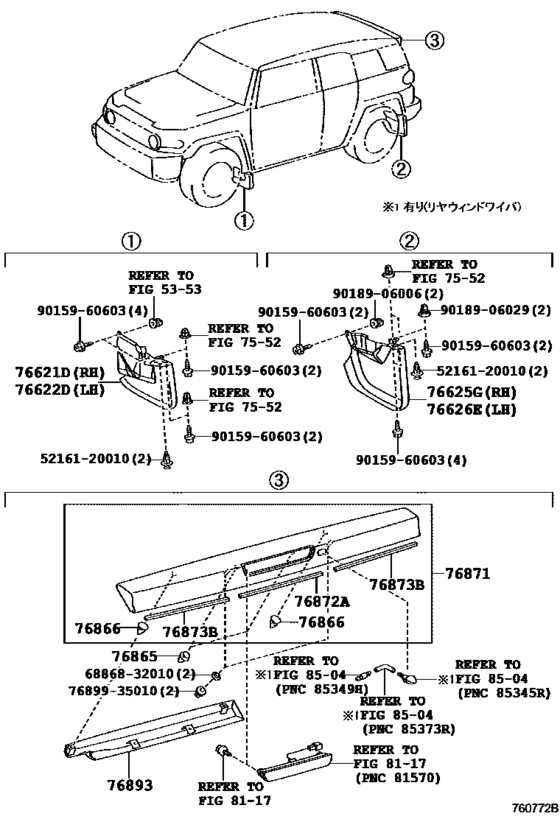

Spoiler & Side Mudguard ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76621D
|
76621D
76603-35042 Mudguard, Front Fender, Rh[11.2010 -] GSJ15 |
76603-35042 |
from US $26.07 |
||
|
76622D
|
76622D
76604-35042 Mudguard, Front Fender, Lh[11.2010 -] GSJ15 |
76604-35042 |
from US $25.50 |
||
|
76625G
|
76625G
76607-35101 Mudguard, Quarter Panel, Rear Rh[11.2010 -] GSJ15 |
76607-35101 |
from US $25.97 |
||
|
76626E
|
76626E
76608-35101 Mudguard, Quarter Panel, Rear Lh[11.2010 -] GSJ15 |
76608-35101 |
from US $26.09 |
||
|
76865
|
76865
76865-35030 Retainer, Rear Spoiler, No.1REAR SPOILER, NO.1 [11.2010 -] GSJ15 |
76865-35030 |
US $0.55 |
||
|
76866
|
76866
76866-35020 Retainer, Rear Spoiler, No.2REAR SPOILER, NO.2 [11.2010 -] GSJ15 |
76866-35020 |
US $0.55 |
||
|
76871
|
76871
76871-35090
Spoiler, Rear
[11.2010 - 06.2011] GSJ15 リヤウィンドウワイパ−有り |
76871-35090 |
— | ||
| replacement | |||||
|
76871
|
76871
76871-35091 Spoiler, Rear[11.2010 - 06.2011] GSJ15 リヤウィンドウワイパ−有り |
76871-35091 |
US $254.80 |
||
|
76871
|
76871
76871-35091 Spoiler, Rear[07.2011 -] GSJ15 リヤウィンドウワイパ−有り |
76871-35091 |
US $254.80 |
||
|
76871
|
76871
76871-35100 Spoiler, RearREAR [11.2010 - 06.2011] GSJ15 |
76871-35100 |
US $337.79 |
||
| replacement | |||||
|
76871
|
76871
76871-35101 Spoiler, Rear[11.2010 - 06.2011] GSJ15 |
76871-35101 |
US $254.80 |
||
|
76871
|
76871
76871-35101 Spoiler, Rear[07.2011 -] GSJ15 |
76871-35101 |
US $254.80 |
||
|
76872A
|
76872A
76872-35020 Protector, Rear Spoiler, No.1[11.2010 -] GSJ15 |
76872-35020 |
US $2.18 |
||
|
76873B
|
76873B
76873-35050 Protector, Rear Spoiler, No.2[11.2010 - 08.2011] GSJ15 |
76873-35050 |
US $3.06 |
||
| replacement | |||||
|
76873B
|
76873B
76873-35051 Protector, Rear Spoiler, No.2[11.2010 - 08.2011] GSJ15 |
76873-35051 |
US $2.18 |
||
|
76873B
|
76873B
76873-35051 Protector, Rear Spoiler, No.2[09.2011 -] GSJ15 |
76873-35051 |
US $2.18 |
||
|
76893
|
76893
76893-35041 Cover, Rear Spoiler, No.1[11.2010 -] GSJ15 |
76893-35041 |
US $21.26 |
||
|
5216120010
|
5216120010
52161-20010 Piece, Front Bumper |
52161-20010 |
from US $1.63 |
||
|
6886832010
|
6886832010
68868-32010 Seal, Back Door Hinge |
68868-32010 |
US $1.93 |
||
|
7689935010
|
7689935010
76899-35010 Protector, Rear Spoiler, Side No.6 |
76899-35010 |
US $10.77 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.61 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.91 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
US $1.24 |
||
