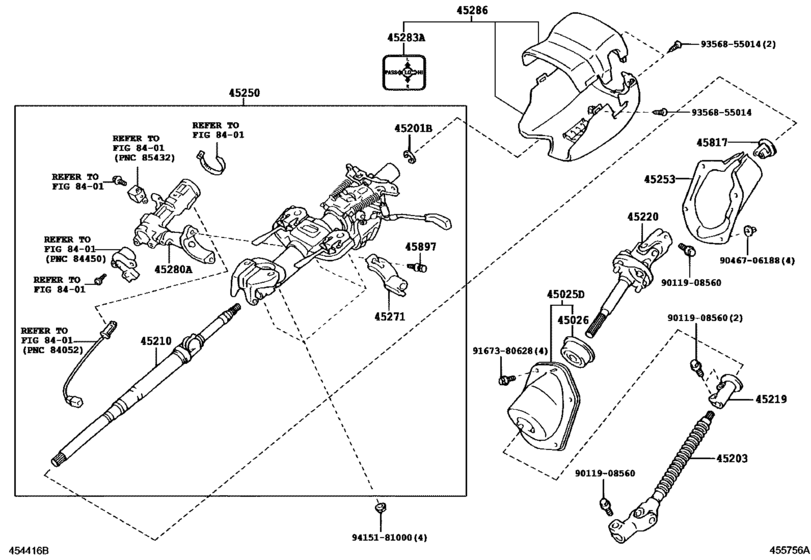

Steering Column & Shaft ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-35400 Cover Sub-Assy, Steering Column Hole, No.1[11.2010 -] GSJ15 |
45025-35400 |
US $54.22 |
||
|
45026
|
45026
45026-35060 Cover Sub-Assy, Steering Column Hole, No.2[11.2010 -] GSJ15 |
45026-35060 |
from US $23.24 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[11.2010 -] GSJ15 厚さ＝１．２０ |
90520-17042 |
from US $0.80 |
||
|
45203
|
45203
45203-35350 Shaft Sub-Assy, Steering Intermediate, No.2[11.2010 -] GSJ15 |
45203-35350 |
US $138.03 |
||
|
45210
|
45210
45210-35240 Shaft Assy, Steering Main[11.2010 -] GSJ15 |
45210-35240 |
from US $233.92 |
||
|
45219
|
45219
45219-35220 Yoke, Steering Sliding[11.2010 -] GSJ15 |
45219-35220 |
US $12.81 |
||
|
45220
|
45220
45220-35200 Shaft Assy, Steering Intermediate[11.2010 -] GSJ15 |
45220-35200 |
US $114.85 |
||
|
45250
|
45250
45250-35A40 Column Assy, Steering[11.2010 -] GSJ15 |
45250-35A40 |
US $728 |
||
|
45253
|
45253
45253-35360 Cover, Steering Column Hole[11.2010 -] GSJ15 |
45253-35360 |
US $21.40 |
||
|
45271
|
45271
45271-12060 Clamp, Steering Column, Upper[11.2010 -] GSJ15 |
45271-12060 |
US $10.60 |
||
|
45280A
|
45280A
45280-35380 Bracket Assy, Steering Column, Upper[11.2010 -] GSJ15 |
45280-35380 |
from US $129.02 |
||
|
45283A
|
45283A
45283-22010 Plate, Safety Caution[11.2010 -] GSJ15 |
45283-22010 |
US $1.51 |
||
|
45286
|
45286
45286-35916-B0 Cover, Steering Column[11.2010 -] GSJ15 DK.GRAY,TRIM1# |
45286-35916-B0 |
US $38.88 |
||
|
45817
|
45817
45817-35050 Stopper, Steering Shaft Thrust[11.2010 -] GSJ15 |
45817-35050 |
US $6.64 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[11.2010 -] GSJ15 |
45897-12020 |
from US $2.51 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.06 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
from US $1.69 |
||
|
9167380628
|
9167380628
91673-80628 New Genuine Part |
91673-80628 |
US $1.16 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.24 |
