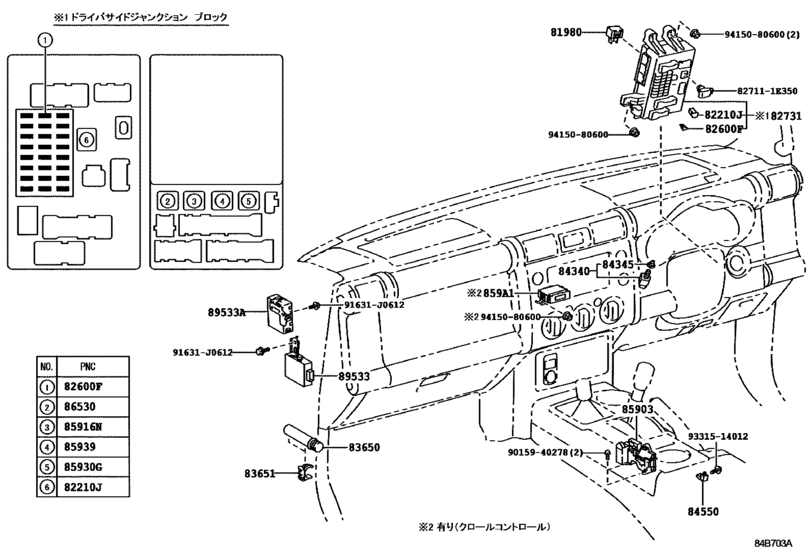

Switch & Relay & Computer ([11.2010 - ] ｶｳﾙ (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
859A1
|
859A1
859A1-35010 Computer, Driving Support Switch Control[08.2012 -] GSJ15 ＶＳＣ−有り（Ａ−ＴＲＣ ＆ クロールコントロール） |
859A1-35010 |
US $176.18 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[11.2010 -] GSJ15 |
81980-50030 |
from US $50.96 |
||
|
82210J
|
82210J
90982-08202 Fusible Link[11.2010 -] GSJ15 ６０Ａ，オス端子 |
90982-08202 |
from US $8.81 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[11.2010 -] GSJ15 １２０Ａ，オス端子 |
90982-08274 |
from US $6.05 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[11.2010 -] GSJ15 ３０Ａ，メス端子,インストルメントパネルＪ／Ｂ |
90982-08280 |
from US $3.82 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[11.2010 -] GSJ15 ４０Ａ，メス端子 |
90982-08281 |
from US $7.43 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[11.2010 -] GSJ15 ５０Ａ，メス端子 |
90982-08282 |
from US $5.50 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[11.2010 -] GSJ15 ３０Ａ，メス端子,エンジンル−ム Ｒ／Ｂ |
90982-08283 |
from US $5.50 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[11.2010 -] GSJ15 ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[11.2010 -] GSJ15 １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[11.2010 -] GSJ15 １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[11.2010 -] GSJ15 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[11.2010 -] GSJ15 ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.83 |
||
|
82731
|
82731
82730-35431 Block, Driver Side Junction[11.2010 - 08.2011] GSJ15 |
82730-35431 |
US $451.36 |
||
|
82731
|
82731
82730-35432 Block, Driver Side Junction[08.2011 - 08.2012] GSJ15 |
82730-35432 |
US $451.36 |
||
|
82731
|
82731
82730-35470 Block, Driver Side Junction[08.2012 - 08.2014] GSJ15 |
82730-35470 |
US $519.79 |
||
|
82731
|
82731
82730-35471 Block, Driver Side Junction[08.2014 -] GSJ15 |
82730-35471 |
US $1,240.51 |
||
|
83650
|
83650
90986-01005
Fusee
[11.2010 -] GSJ15 |
90986-01005 |
— | ||
|
83651
|
83651
90468-25003 Clip, Instrument Panel, No.2[11.2010 -] GSJ15 |
90468-25003 |
US $1.93 |
||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[09.2011 - 05.2017] GSJ15 |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[09.2011 - 05.2017] GSJ15 |
84340-19026 |
from US $16.72 |
||
|
84340
|
84340
84340-69025 Switch Assy, Stop Lamp[11.2010 - 09.2011] GSJ15 |
84340-69025 |
from US $21.93 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[11.2010 -] GSJ15 |
84345-51010 |
from US $2.75 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[11.2010 -] GSJ15 |
84550-33010 |
from US $14.52 |
||
|
85903
|
85903
85903-60010 Computer Sub-Assy, Shift Lock Control[11.2010 -] GSJ15 |
85903-60010 |
US $145.02 |
||
|
85916N
|
85916N
90987-02027 Relay[11.2010 -] GSJ15 |
90987-02027 |
from US $35.12 |
||
|
85930G
|
85930G
90987-02027 Relay[11.2010 -] GSJ15 |
90987-02027 |
from US $35.12 |
||
|
85939
|
85939
90987-02027 Relay[11.2010 -] GSJ15 |
90987-02027 |
from US $35.12 |
||
|
86530
|
86530
90987-02027 Relay[11.2010 -] GSJ15 |
90987-02027 |
from US $35.12 |
||
|
89533
|
89533
89533-35280 Computer, 4 Wheel Drive Control[11.2010 - 01.2017] GSJ15 |
89533-35280 |
US $151.42 |
||
|
89533
|
89533
89533-35300 Computer, 4 Wheel Drive Control[01.2017 -] GSJ15 |
89533-35300 |
US $151.42 |
||
|
89533A
|
89533A
89533-35260 Computer, 4 Wheel Drive Control, No.2FOUR WHEEL DRIVE CONTROL [11.2010 -] GSJ15 ディファレンシャルロック−有り |
89533-35260 |
US $146.76 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.68 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $1.96 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.72 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.63 |
||
