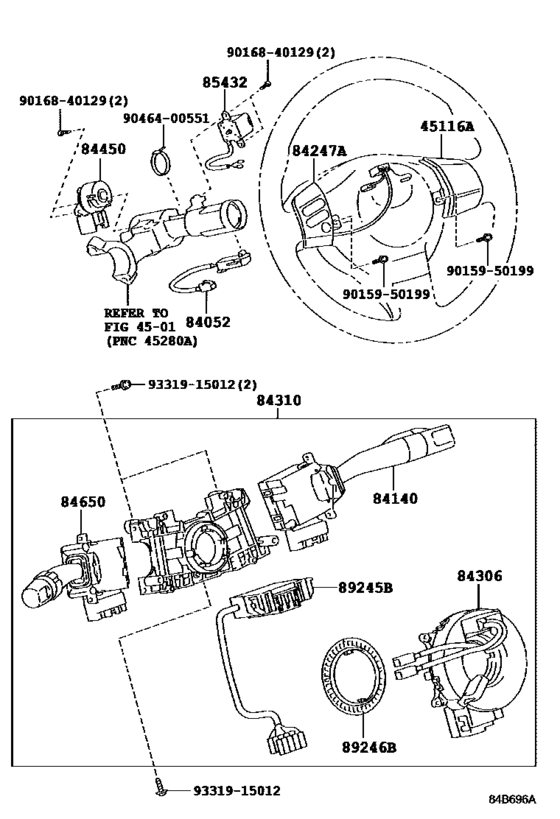

Switch & Relay & Computer ([11.2010 - ] ｽﾃｱﾘﾝｸﾞ (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45116A
|
45116A
45116-35010 Ornament, Steering Wheel, No.1STEERING WHEEL, NO.1 [11.2010 -] GSJ15 |
45116-35010 |
US $14.12 |
||
|
84052
|
84052
84052-22050 Switch Assy, Un-Lock Warning[11.2010 -] GSJ15 |
84052-22050 |
from US $14.26 |
||
|
84140
|
84140
84140-20440 Switch Assy, Headlamp Dimmer[11.2010 - 03.2013] GSJ15 |
84140-20440 |
US $108.33 |
||
|
84140
|
84140
84140-26150 Switch Assy, Headlamp Dimmer[08.2014 - 07.2016] GSJ15 |
84140-26150 |
US $75.71 |
||
| replacement | |||||
|
84140
|
84140
84140-26151 Switch Assy, Headlamp Dimmer[08.2014 - 07.2016] GSJ15 |
84140-26151 |
from US $65.78 |
||
|
84140
|
84140
84140-26151 Switch Assy, Headlamp Dimmer[08.2016 -] GSJ15 |
84140-26151 |
from US $65.78 |
||
|
84140
|
84140
84140-26170 Switch Assy, Headlamp Dimmer[03.2013 - 08.2014] GSJ15 |
84140-26170 |
from US $54.70 |
||
|
84247A
|
84247A
84247-35020 Switch, Steering Pad, LhSTEERING PAD, LH [11.2010 -] GSJ15 |
84247-35020 |
US $110.66 |
||
|
84247A
|
84247A
84247-35030 Switch, Steering Pad, LhSTEERING PAD, LH [11.2010 -] GSJ15 コンビニエンスＰＫＧ |
84247-35030 |
US $110.66 |
||
|
84306
|
84306
84306-60080 Cable Sub-Assy, Spiral[11.2010 -] GSJ15 |
84306-60080 |
from US $155.99 |
||
|
84310
|
84310
84310-35B20 Switch Assy, Turn Signal[11.2010 - 03.2013] GSJ15 リヤウィンドウワイパ−有り |
84310-35B20 |
US $487.76 |
||
|
84310
|
84310
84310-35B50 Switch Assy, Turn Signal[11.2010 - 03.2013] GSJ15 |
84310-35B50 |
US $477.57 |
||
|
84310
|
84310
84310-35C10 Switch Assy, Turn Signal[03.2013 - 08.2014] GSJ15 リヤウィンドウワイパ−有り |
84310-35C10 |
US $394.58 |
||
| replacement | |||||
|
84310
|
84310
84310-35C11 Switch Assy, Turn Signal[03.2013 - 08.2014] GSJ15 リヤウィンドウワイパ−有り |
84310-35C11 |
US $358.18 |
||
|
84310
|
84310
84310-35C11 Switch Assy, Turn Signal[08.2016 -] GSJ15 リヤウィンドウワイパ−有り＆フロントフォグランプ−無し |
84310-35C11 |
US $358.18 |
||
|
84310
|
84310
84310-35C20 Switch Assy, Turn Signal[03.2013 - 08.2014] GSJ15 |
84310-35C20 |
US $378.56 |
||
| replacement | |||||
|
84310
|
84310
84310-35C21 Switch Assy, Turn Signal[03.2013 - 08.2014] GSJ15 |
84310-35C21 |
US $343.62 |
||
|
84310
|
84310
84310-35C21 Switch Assy, Turn Signal[08.2016 -] GSJ15 フロントフォグランプ−無し |
84310-35C21 |
US $343.62 |
||
|
84310
|
84310
84310-35C80 Switch Assy, Turn Signal[08.2014 - 07.2016] GSJ15 |
84310-35C80 |
US $615.89 |
||
| replacement | |||||
|
84310
|
84310
84310-35C81 Switch Assy, Turn Signal[08.2014 - 07.2016] GSJ15 |
84310-35C81 |
US $559.10 |
||
|
84310
|
84310
84310-35C81 Switch Assy, Turn Signal[08.2016 -] GSJ15 |
84310-35C81 |
US $559.10 |
||
|
84310
|
84310
84310-6B580 Switch Assy, Turn Signal[08.2014 - 07.2016] GSJ15 リヤウィンドウワイパ−有り |
84310-6B580 |
US $438.26 |
||
| replacement | |||||
|
84310
|
84310
84310-6B581 Switch Assy, Turn Signal[08.2014 - 07.2016] GSJ15 リヤウィンドウワイパ−有り |
84310-6B581 |
US $397.49 |
||
|
84310
|
84310
84310-6B581 Switch Assy, Turn Signal[08.2016 -] GSJ15 リヤウィンドウワイパ−有り |
84310-6B581 |
US $397.49 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[11.2010 -] GSJ15 |
84450-12200 |
from US $38.88 |
||
|
84650
|
84650
84652-2D850 Switch Assy, Windshield Wiper[11.2010 - 03.2013] GSJ15 |
84652-2D850 |
US $128.13 |
||
|
84650
|
84650
84652-2D860 Switch Assy, Windshield Wiper[11.2010 - 03.2013] GSJ15 リヤウィンドウワイパ−有り |
84652-2D860 |
US $131.74 |
||
|
84650
|
84650
84652-35491
Switch Assy, Windshield Wiper
[03.2013 - 07.2016] GSJ15 リヤウィンドウワイパ−有り |
84652-35491 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-35492 Switch Assy, Windshield Wiper[03.2013 - 07.2016] GSJ15 リヤウィンドウワイパ−有り |
84652-35492 |
US $95.04 |
||
|
84650
|
84650
84652-35492 Switch Assy, Windshield Wiper[08.2016 -] GSJ15 リヤウィンドウワイパ−有り; GSJ15 リヤウィンドウワイパ−有り＆フロントフォグランプ−無し |
84652-35492 |
US $95.04 |
||
|
84650
|
84650
84652-47010 Switch Assy, Windshield Wiper[03.2013 - 07.2016] GSJ15 |
84652-47010 |
US $94.64 |
||
| replacement | |||||
|
84650
|
84650
84652-47011 Switch Assy, Windshield Wiper[03.2013 - 07.2016] GSJ15 |
84652-47011 |
US $85.90 |
||
|
84650
|
84650
84652-47011 Switch Assy, Windshield Wiper[08.2016 -] GSJ15 |
84652-47011 |
US $85.90 |
||
|
85432
|
85432
85432-14040 Solenoid, Key Inter Lock[11.2010 -] GSJ15 |
85432-14040 |
US $39.53 |
||
|
89245B
|
89245B
89245-33020 Sensor, Steering[03.2013 -] GSJ15 |
89245-33020 |
US $190.44 |
||
|
89245B
|
89245B
89245-35020 Sensor, SteeringSTEERING [11.2010 - 03.2013] GSJ15 |
89245-35020 |
from US $216.94 |
||
|
89246B
|
89246B
89246-22020 Disc, Sensor Steering[03.2013 -] GSJ15 |
89246-22020 |
US $69.71 |
||
|
89246B
|
89246B
89246-34010 Disc, Sensor SteeringSENSOR STEERING [11.2010 - 03.2013] GSJ15 |
89246-34010 |
US $96.10 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.72 |
||
|
9016840129
|
9016840129
90168-40129 New Genuine Part |
90168-40129 |
US $0.69 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $0.83 |
||
