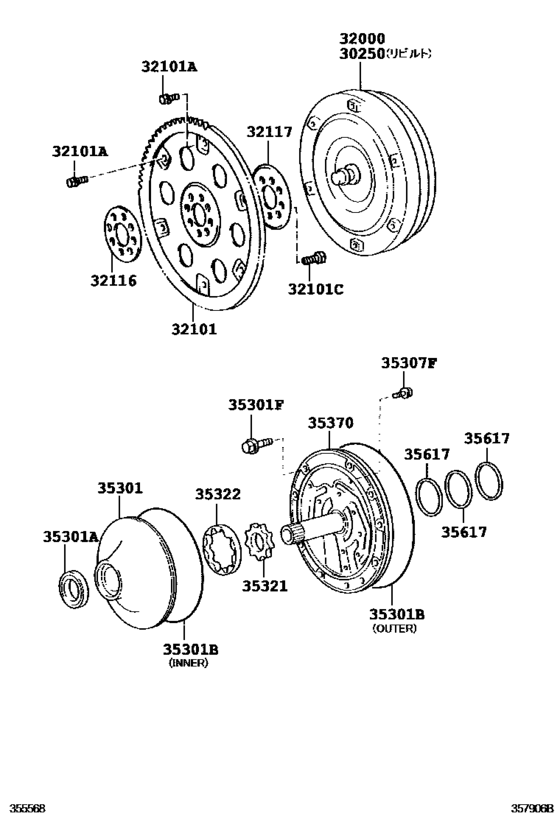

Torque Converter, Front Oil Pump & Chain (Atm) ([11.2010 - ] A750F (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30250
|
30250
30250-71020 Converter Assy, Torque, Rebuilt[11.2010 -] GSJ15 |
30250-71020 |
US $851.76 |
||
|
32000
|
32000
32000-04010 Converter Assy, TorqueTORQUE [11.2010 - 11.2015] GSJ15 （Ｌ） |
32000-04010 |
US $1,338.06 |
||
|
32000
|
32000
32000-71020 Converter Assy, Torque[11.2010 - 11.2015] GSJ15 （Ｊ） |
32000-71020 |
from US $1,196.83 |
||
|
32101
|
32101
32101-60060 Gear Sub-Assy, Drive Plate & Ring[11.2010 -] GSJ15 |
32101-60060 |
from US $193.65 |
||
|
32101A
|
32101A
90119-09026 Bolt(For Drive Plate & Torque Converter Setting)[11.2010 -] GSJ15 ＊９−１．２５ＰＸ１２．８−９,ブラック |
90119-09026 |
from US $0.76 |
||
|
32101A
|
32101A
90119-09027 Bolt(For Drive Plate & Torque Converter Setting)[11.2010 -] GSJ15 ＊９−１．２５ＰＸ１２．８−８．８,シルバ− ホワイト |
90119-09027 |
from US $0.76 |
||
|
32101C
|
32101C
90105-10543 Bolt, Hexagon(For Drive Plate Setting)[11.2010 -] GSJ15 ＊１０−１．２５ＰＸ２２−１５ |
90105-10543 |
US $0.79 |
||
|
32116
|
32116
32116-60050 Spacer, Drive Plate, Front[11.2010 -] GSJ15 |
32116-60050 |
from US $27.30 |
||
|
32117
|
32117
32117-60060 Spacer, Drive Plate, Rear[11.2010 -] GSJ15 |
32117-60060 |
US $12.67 |
||
|
35301
|
35301
35301-0C010
Body Sub-Assy, Front Oil Pump
[11.2010 - 11.2015] GSJ15 （Ｌ） |
35301-0C010 |
— | ||
|
35301
|
35301
35301-60030 Body Sub-Assy, Front Oil Pump[11.2010 -] GSJ15 （Ｊ） |
35301-60030 |
from US $169.48 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[11.2010 -] GSJ15 |
90311-38083 |
from US $3.99 |
||
|
35301B
|
35301B
35697-60010 Ring, O (For Front Oil Pump Body)[06.2014 - 11.2015] GSJ15 ＴＹＰＥ Ａ：３５−０１参照，外側 |
35697-60010 |
from US $3.67 |
||
|
35301B
|
35301B
90301-99139 Ring, O (For Front Oil Pump Body)[11.2010 - 06.2014] GSJ15 外側 |
90301-99139 |
from US $4.89 |
||
|
35301B
|
35301B
90301-99148 Ring, O (For Front Oil Pump Body)[11.2010 -] GSJ15 内側 |
90301-99148 |
from US $2.62 |
||
|
35301F
|
35301F
90105-08451 Bolt (For Front Oil Pump Setting)[11.2010 - 07.2013] GSJ15 ＊８−１．２５ＰＸ４０−３０ |
90105-08451 |
US $0.79 |
||
|
35301F
|
35301F
90105-A0307
Bolt (For Front Oil Pump Setting)
[07.2013 - 11.2015] GSJ15 ＊８−１．２５ＰＸ４０−３０,（Ｌ） |
90105-A0307 |
— | ||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[11.2010 -] GSJ15 |
90148-60079 |
from US $0.44 |
||
|
35321
|
35321
35321-0C010 Gear, Front Oil Pump Drive[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ０,（Ｌ） |
35321-0C010 |
US $40.77 |
||
|
35321
|
35321
35321-0C020 Gear, Front Oil Pump Drive[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク １,（Ｌ） |
35321-0C020 |
US $40.77 |
||
|
35321
|
35321
35321-0C030 Gear, Front Oil Pump Drive[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ２,（Ｌ） |
35321-0C030 |
US $40.77 |
||
|
35321
|
35321
35321-0C040 Gear, Front Oil Pump Drive[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ３,（Ｌ） |
35321-0C040 |
US $40.77 |
||
|
35321
|
35321
35321-0C050 Gear, Front Oil Pump Drive[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ４,（Ｌ） |
35321-0C050 |
US $40.77 |
||
|
35321
|
35321
35321-0C060 Gear, Front Oil Pump Drive[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ５,（Ｌ） |
35321-0C060 |
US $40.77 |
||
|
35321
|
35321
35321-0C070 Gear, Front Oil Pump Drive[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ６,（Ｌ） |
35321-0C070 |
US $40.77 |
||
|
35321
|
35321
35321-50010 Gear, Front Oil Pump Drive[11.2010 -] GSJ15 厚さ＝１０．７３６−１０．７４２,（Ｊ） |
35321-50010 |
US $38.44 |
||
|
35321
|
35321
35321-50020 Gear, Front Oil Pump Drive[11.2010 -] GSJ15 厚さ＝１０．７４３−１０．７４９,（Ｊ） |
35321-50020 |
US $39.60 |
||
|
35321
|
35321
35321-50030 Gear, Front Oil Pump Drive[11.2010 -] GSJ15 厚さ＝１０．７５０−１０．７５６,（Ｊ） |
35321-50030 |
US $39.60 |
||
|
35321
|
35321
35321-50040 Gear, Front Oil Pump Drive[11.2010 -] GSJ15 厚さ＝１０．７５７−１０．７６３,（Ｊ） |
35321-50040 |
from US $39.60 |
||
|
35321
|
35321
35321-50050 Gear, Front Oil Pump Drive[11.2010 -] GSJ15 厚さ＝１０．７６４−１０．７７０,（Ｊ） |
35321-50050 |
US $38.44 |
||
|
35321
|
35321
35321-50060 Gear, Front Oil Pump Drive[11.2010 -] GSJ15 厚さ＝１０．７７１−１０．７７７,（Ｊ） |
35321-50060 |
US $38.44 |
||
|
35321
|
35321
35321-50070 Gear, Front Oil Pump Drive[11.2010 -] GSJ15 厚さ＝１０．７７８−１０．７８４,（Ｊ） |
35321-50070 |
US $38.44 |
||
|
35322
|
35322
35322-0C010 Gear, Front Oil Pump Driven[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ０,（Ｌ） |
35322-0C010 |
US $40.77 |
||
|
35322
|
35322
35322-0C020 Gear, Front Oil Pump Driven[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク １,（Ｌ） |
35322-0C020 |
US $40.77 |
||
|
35322
|
35322
35322-0C030 Gear, Front Oil Pump Driven[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ２,（Ｌ） |
35322-0C030 |
US $40.77 |
||
|
35322
|
35322
35322-0C040 Gear, Front Oil Pump Driven[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ３,（Ｌ） |
35322-0C040 |
US $40.77 |
||
|
35322
|
35322
35322-0C050 Gear, Front Oil Pump Driven[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ４,（Ｌ） |
35322-0C050 |
US $40.77 |
||
|
35322
|
35322
35322-0C060 Gear, Front Oil Pump Driven[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ５,（Ｌ） |
35322-0C060 |
US $40.77 |
||
|
35322
|
35322
35322-0C070 Gear, Front Oil Pump Driven[11.2010 - 11.2015] GSJ15 厚さ＝１０．７６，マーク ６,（Ｌ） |
35322-0C070 |
US $40.77 |
||
|
35322
|
35322
35322-50010 Gear, Front Oil Pump Driven[11.2010 -] GSJ15 厚さ＝１０．７３６−１０．７４２,（Ｊ） |
35322-50010 |
from US $32.67 |
||
|
35322
|
35322
35322-50020 Gear, Front Oil Pump Driven[11.2010 -] GSJ15 厚さ＝１０．７４３−１０．７４９,（Ｊ） |
35322-50020 |
US $33.63 |
||
|
35322
|
35322
35322-50030 Gear, Front Oil Pump Driven[11.2010 -] GSJ15 厚さ＝１０．７５０−１０．７５６,（Ｊ） |
35322-50030 |
US $33.63 |
||
|
35322
|
35322
35322-50040 Gear, Front Oil Pump Driven[11.2010 -] GSJ15 厚さ＝１０．７５７−１０．７６３,（Ｊ） |
35322-50040 |
US $33.63 |
||
|
35322
|
35322
35322-50050 Gear, Front Oil Pump Driven[11.2010 -] GSJ15 厚さ＝１０．７６４−１０．７７０,（Ｊ） |
35322-50050 |
US $32.67 |
||
|
35322
|
35322
35322-50060 Gear, Front Oil Pump Driven[11.2010 -] GSJ15 厚さ＝１０．７７１−１０．７７７,（Ｊ） |
35322-50060 |
US $33.63 |
||
|
35322
|
35322
35322-50070 Gear, Front Oil Pump Driven[11.2010 -] GSJ15 厚さ＝１０．７７８−１０．７８４,（Ｊ） |
35322-50070 |
US $33.63 |
||
|
35370
|
35370
35370-0C010 Shaft Assy, Stator[11.2010 - 11.2015] GSJ15 （Ｌ） |
35370-0C010 |
US $200.93 |
||
|
35370
|
35370
35370-50030 Shaft Assy, Stator[11.2010 -] GSJ15 （Ｊ） |
35370-50030 |
from US $195.69 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[11.2010 -] GSJ15 |
35617-50030 |
from US $3.67 |
