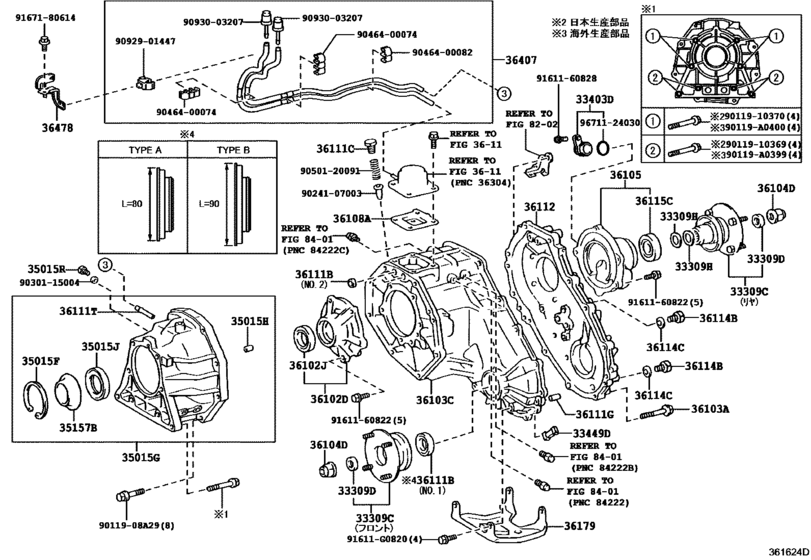

Transfer Case & Extension Housing ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33309C
|
33309C
33309-35111
Flange Sub-Assy, Output Shaft Companion
[11.2010 - 11.2014] GSJ15 ＦＲＯＮＴ，ＰＮＣ３６１１１Ｂ＝Ｔ／ＰＡ |
33309-35111 |
— | ||
| replacements | |||||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[11.2010 - 11.2014] GSJ15 ＦＲＯＮＴ，ＰＮＣ３６１１１Ｂ＝Ｔ／ＰＡ |
33309-35112 |
— | ||
| replacement | |||||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[11.2010 - 11.2014] GSJ15 ＦＲＯＮＴ，ＰＮＣ３６１１１Ｂ＝Ｔ／ＰＡ |
33309-35113 |
from US $67.32 |
||
|
33309C
|
33309C
90311-41017 Seal, Oil (For Transfer Case)[11.2010 - 11.2014] GSJ15 ＦＲＯＮＴ，ＰＮＣ３６１１１Ｂ＝Ｔ／ＰＡ |
90311-41017 |
from US $5.50 |
||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[11.2010 - 11.2014] GSJ15 ＦＲＯＮＴ，ＰＮＣ３６１１１Ｂ＝Ｔ／ＰＡ |
33309-35113 |
from US $67.32 |
||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[11.2014 -] GSJ15 ＦＲＯＮＴ，ＰＮＣ３６１１１Ｂ＝Ｔ／ＰＢ |
33309-35112 |
— | ||
| replacement | |||||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[11.2014 -] GSJ15 ＦＲＯＮＴ，ＰＮＣ３６１１１Ｂ＝Ｔ／ＰＢ |
33309-35113 |
from US $67.32 |
||
|
33309C
|
33309C
33309-35120 Flange Sub-Assy, Output Shaft Companion[11.2010 -] GSJ15 リヤ |
33309-35120 |
from US $67.32 |
||
|
33309D
|
33309D
90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)[11.2010 -] GSJ15 |
90312-23001 |
from US $1.65 |
||
|
33309H
|
33309H
36275-35010 Washer, Transfer Output Shaft[11.2010 -] GSJ15 歯数＝３０，外径＝３８ |
36275-35010 |
US $0.44 |
||
|
33403D
|
33403D
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[11.2010 -] GSJ15 |
33403-35230 |
from US $14.13 |
||
|
33449D
|
33449D
33449-32020 Magnet, Transmission[11.2010 -] GSJ15 |
33449-32020 |
US $8.26 |
||
|
35015F
|
35015F
90521-72001 Ring, Hole Snap(For Transfer Adapter)[11.2010 -] GSJ15 |
90521-72001 |
US $0.96 |
||
|
35015G
|
35015G
35015-0C010
Adapter, Transfer, Rear
[11.2010 - 11.2015] GSJ15 （Ｌ） |
35015-0C010 |
— | ||
|
35015G
|
35015G
35015-35120 Adapter, Transfer, Rear[11.2010 -] GSJ15 （Ｊ） |
35015-35120 |
US $227.14 |
||
|
35015H
|
35015H
90250-11003 Pin, Ring(For Transfer Case)[11.2010 -] GSJ15 |
90250-11003 |
US $1.10 |
||
|
35015J
|
35015J
90311-43007 Seal, Oil(For Transfer Case Adapter Rear)[11.2010 -] GSJ15 |
90311-43007 |
from US $3.99 |
||
|
35015R
|
35015R
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[11.2010 -] GSJ15 |
90341-18059 |
from US $2.34 |
||
|
35157B
|
35157B
35157-60010 Receiver, Transfer Case Rear Adapter Oil[11.2010 -] GSJ15 |
35157-60010 |
US $11.07 |
||
|
36102D
|
36102D
36102-35060 Retainer Sub-Assy, Transfer Rh Bearing[11.2010 -] GSJ15 |
36102-35060 |
US $27.60 |
||
|
36102J
|
36102J
90311-43008 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)[11.2010 -] GSJ15 |
90311-43008 |
from US $5.50 |
||
|
36103A
|
36103A
90119-08A28 Bolt (For Transfer Case)[11.2010 -] GSJ15 ＊８−１．２５ＰＸ５５−３０ |
90119-08A28 |
from US $1.06 |
||
|
36103C
|
36103C
36111-60261 Case, Transfer, FrontTRANSFER, FRONT [11.2010 -] GSJ15 |
36111-60261 |
US $311.58 |
||
|
36104D
|
36104D
90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)[11.2010 -] GSJ15 |
90179-22016 |
from US $2.45 |
||
|
36105
|
36105
36105-35040 Housing Sub-Assy, Transfer Extension, Front[11.2010 -] GSJ15 |
36105-35040 |
US $76.35 |
||
|
36108A
|
36108A
36108-35060 Deflector Sub-Assy, Breather Oil[11.2010 -] GSJ15 |
36108-35060 |
from US $5.59 |
||
|
36111B
|
36111B
90311-15008 Seal, Oil (For Transfer Case)[11.2010 -] GSJ15 ＮＯ．２ |
90311-15008 |
from US $2.89 |
||
|
36111B
|
36111B
90311-41013 Seal, Oil (For Transfer Case)[11.2010 - 11.2014] GSJ15 ＮＯ．１，ＴＹＰＥ Ａ：イラスト参照 |
90311-41013 |
from US $5.50 |
||
|
36111B
|
36111B
90311-41017 Seal, Oil (For Transfer Case)[11.2014 -] GSJ15 ＮＯ．１，ＴＹＰＥ Ｂ：イラスト参照 |
90311-41017 |
from US $5.50 |
||
|
36111C
|
36111C
90341-14012 Plug (For Transfer Case)[11.2010 -] GSJ15 |
90341-14012 |
US $2.34 |
||
|
36111G
|
36111G
90250-10214 Pin, Straight(For End Plate)[11.2010 -] GSJ15 長さ＝１４，外径＝１０ |
90250-10214 |
from US $1.29 |
||
|
36111T
|
36111T
90441-05001 Tube (For Transfer Case)[11.2010 -] GSJ15 |
90441-05001 |
US $2.33 |
||
|
36112
|
36112
36112-35040 Case, Transfer, Rear[11.2010 -] GSJ15 |
36112-35040 |
from US $195.10 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[11.2010 -] GSJ15 |
90341-18006 |
from US $2.20 |
||
|
36114C
|
36114C
90430-18008 Gasket[11.2010 -] GSJ15 |
90430-18008 |
from US $0.82 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[11.2010 -] GSJ15 |
90430-T0021 |
— | ||
|
36115C
|
36115C
90311-41007
Seal, Oil (Transfer Extension Front Housing Sub-Assy)
[11.2010 -] GSJ15 |
90311-41007 |
— | ||
| replacement | |||||
|
36115C
|
36115C
90311-41020 Oil Seal (Transfer Extension Housing Sub-Assy)[11.2010 -] GSJ15 |
90311-41020 |
from US $5.37 |
||
|
36179
|
36179
36179-60030 Protector, Transfer Case LowerTRANSFER CASE LOWER [11.2010 -] GSJ15 |
36179-60030 |
US $20.79 |
||
|
36407
|
36407
36407-60230 Hose Sub-Assy, Transfer BreatherTRANSFER BREATHER [11.2010 -] GSJ15 |
36407-60230 |
US $36.25 |
||
|
36478
|
36478
36478-60060 Bracket, Transfer BreatherTRANSFER BREATHER [11.2010 -] GSJ15 |
36478-60060 |
US $6.99 |
||
|
90119A0399
|
90119A0399
90119-A0399
New Genuine Part
|
90119-A0399 |
— | ||
|
90119A0400
|
90119A0400
90119-A0400
New Genuine Part
|
90119-A0400 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.12 |
||
|
9011908A29
|
9011908A29
90119-08A29 Bolt(For Head To Camshaft Bearing Cap) |
90119-08A29 |
US $1.24 |
||
|
9011910369
|
9011910369
90119-10369 New Genuine Part |
90119-10369 |
US $0.87 |
||
|
9011910370
|
9011910370
90119-10370 New Genuine Part |
90119-10370 |
US $1.38 |
||
|
9024107003
|
9024107003
90241-07003 Pin, Slotted Spring (For Transfer Case) |
90241-07003 |
US $0.79 |
||
|
9030115004
|
9030115004
90301-15004 Ring, O(For Oil Cooler Tube Union) |
90301-15004 |
from US $1.46 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.51 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.16 |
||
|
9050120091
|
9050120091
90501-20091 Spring, Compression (For Transfer Case) |
90501-20091 |
US $0.87 |
||
|
9092901447
|
9092901447
90929-01447 New Genuine Part |
90929-01447 |
US $1.46 |
||
|
9093003207
|
9093003207
90930-03207
New Genuine Part
|
90930-03207 |
— | ||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.05 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
from US $0.89 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.61 |
||
|
9671124030
|
9671124030
96711-24030 Ring,o (For Speedometer Driven Hole Cover) |
96711-24030 |
from US $2.03 |
||
