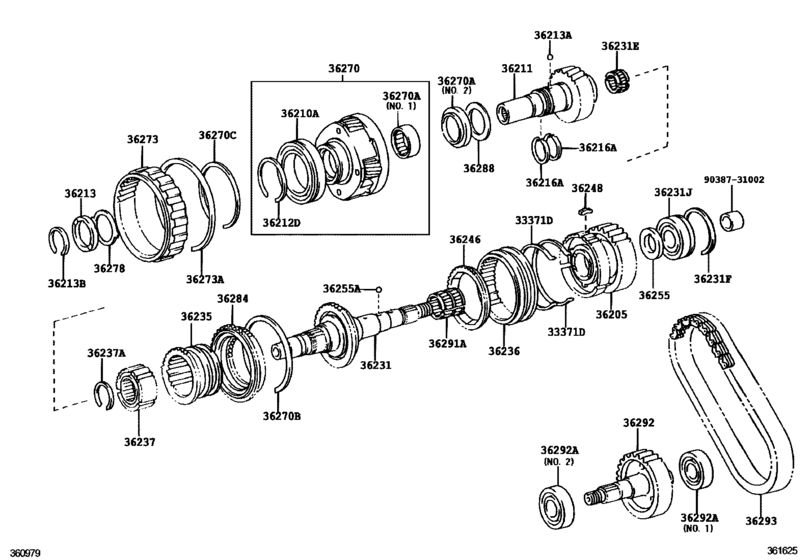

Transfer Gear ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33371D
|
33371D
33371-36030 Spring, Synchromesh Shifting Key, No.1[11.2010 -] GSJ15 |
33371-36030 |
from US $2.89 |
||
|
36205
|
36205
36205-35081 Sprocket Sub-Assy, Transfer DriveTRANSFER DRIVE [11.2010 - 07.2013] GSJ15 |
36205-35081 |
US $108.33 |
||
|
36205
|
36205
36205-35110 Sprocket Sub-Assy, Transfer Drive[07.2013 -] GSJ15 |
36205-35110 |
from US $68.72 |
||
|
36210A
|
36210A
90363-75001 Bearing (For Transfer Input Shaft)[11.2010 -] GSJ15 |
90363-75001 |
from US $26.56 |
||
|
36211
|
36211
36201-71010 Shaft, Transfer InputTRANSFER INPUT [11.2010 -] GSJ15 |
36201-71010 |
US $125.22 |
||
|
36212D
|
36212D
90520-72001 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15 厚さ＝１．４５，マーク １ |
90520-72001 |
US $1.05 |
||
|
36212D
|
36212D
90520-72002 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15 厚さ＝１．５０，マーク ２ |
90520-72002 |
US $1.75 |
||
|
36212D
|
36212D
90520-72003 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15 厚さ＝１．５５，マーク ３ |
90520-72003 |
US $1.75 |
||
|
36212D
|
36212D
90520-72004 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15 厚さ＝１．６０，マーク ４ |
90520-72004 |
US $1.75 |
||
|
36212D
|
36212D
90520-72005 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15 厚さ＝１．６５，マーク ５ |
90520-72005 |
US $1.75 |
||
|
36213
|
36213
36213-35020 Stopper, Transfer Input Gear[11.2010 -] GSJ15 |
36213-35020 |
from US $7.16 |
||
|
36213A
|
36213A
90360-05012 Ball, Reverse Shift Restrict[11.2010 -] GSJ15 |
90360-05012 |
from US $0.82 |
||
|
36213B
|
36213B
90520-44003 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．１０−２．１５，マーク Ａ |
90520-44003 |
US $1.05 |
||
|
36213B
|
36213B
90520-44004 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．１５−２．２０，マーク Ｂ |
90520-44004 |
US $1.75 |
||
|
36213B
|
36213B
90520-44005 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．２０−２．２５，マーク Ｃ |
90520-44005 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44006 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．２５−２．３０，マーク Ｄ |
90520-44006 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44007 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．３０−２．３５，マーク Ｅ |
90520-44007 |
US $1.75 |
||
|
36213B
|
36213B
90520-44008 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．３５−２．４０，マーク Ｆ |
90520-44008 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44009 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．４０−２．４５，マーク Ｇ |
90520-44009 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44010 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．４５−２．５０，マーク Ｈ |
90520-44010 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44011 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．５０−２．５５，マーク Ｊ |
90520-44011 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44012 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．５５−２．６０，マーク Ｋ |
90520-44012 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44013 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．６０−２．６５，マーク Ｌ |
90520-44013 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44014 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．６５−２．７０，マーク Ｍ |
90520-44014 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44015 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．７０−２．７５，マーク Ｎ |
90520-44015 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44016 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．７５−２．８０，マーク Ｐ |
90520-44016 |
US $1.75 |
||
|
36213B
|
36213B
90520-44017 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．８０−２．８５，マーク Ｑ |
90520-44017 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44018 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．８５−２．９０，マーク Ｒ |
90520-44018 |
US $1.75 |
||
|
36213B
|
36213B
90520-44019 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．９０−２．９５，マーク Ｓ |
90520-44019 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44020 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝２．９５−３．００，マーク Ｔ |
90520-44020 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44021 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15 厚さ＝３．００−３．０５，マーク Ｕ |
90520-44021 |
from US $1.75 |
||
|
36216A
|
36216A
36216-35012 Ring, Transfer Input Shaft Seal, No.1[11.2010 -] GSJ15 |
36216-35012 |
from US $1.93 |
||
|
36231
|
36231
36202-71010 Shaft, Transfer Output, RearTRANSFER OUTPUT, REAR [11.2010 -] GSJ15 |
36202-71010 |
US $155.79 |
||
|
36231E
|
36231E
90364-28004 Bearing, Needle Roller (For Transfer Output Shaft Front)[11.2010 -] GSJ15 |
90364-28004 |
from US $15.55 |
||
|
36231F
|
36231F
90520-71221 Ring, Shaft Snap (For Front Bearing)[11.2010 -] GSJ15 厚さ＝１．６５，内径＝７１．１ |
90520-71221 |
US $2.89 |
||
|
36231J
|
36231J
90363-32006 Bearing (For Transfer Counter Gear)[11.2010 -] GSJ15 |
90363-32006 |
US $27.86 |
||
|
36235
|
36235
36235-35021 Sleeve, Transfer High & Low Clutch[11.2010 - 02.2014] GSJ15 |
36235-35021 |
US $172.97 |
||
| replacements | |||||
|
36235
|
36235
36235-35H00 Piece, Transfer Low Planetary Gear Spline[11.2010 - 02.2014] GSJ15 |
36235-35H00 |
US $181.71 |
||
|
36235
|
36235
36235-35H01 Piece, Transfer Low Planetary Gear Spline[11.2010 - 02.2014] GSJ15 |
36235-35H01 |
US $181.71 |
||
|
36235
|
36235
36235-35022 Sleeve, Transfer High & Low Clutch[02.2014 -] GSJ15 |
36235-35022 |
from US $35.67 |
||
|
36236
|
36236
36236-35050 Sleeve, Front Drive Clutch[11.2010 -] GSJ15 |
36236-35050 |
US $34.59 |
||
|
36237
|
36237
36237-35030 Hub, Transfer Clutch[11.2010 -] GSJ15 |
36237-35030 |
US $27.61 |
||
|
36237A
|
36237A
90520-39004 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．１０−２．１５，マーク Ａ |
90520-39004 |
US $1.31 |
||
|
36237A
|
36237A
90520-39005 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．１５−２．２０，マーク Ｂ |
90520-39005 |
US $1.31 |
||
|
36237A
|
36237A
90520-39006 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．２０−２．２５，マーク Ｃ |
90520-39006 |
US $1.31 |
||
|
36237A
|
36237A
90520-39007 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．２５−２．３０，マーク Ｄ |
90520-39007 |
from US $1.31 |
||
|
36237A
|
36237A
90520-39008 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．３０−２．３５，マーク Ｅ |
90520-39008 |
from US $1.31 |
||
|
36237A
|
36237A
90520-39009 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．３５−２．４０，マーク Ｆ |
90520-39009 |
US $1.31 |
||
|
36237A
|
36237A
90520-39010 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．４０−２．４５，マーク Ｇ |
90520-39010 |
from US $1.31 |
||
|
36237A
|
36237A
90520-39011 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．４５−２．５０，マーク Ｈ |
90520-39011 |
from US $1.31 |
||
|
36237A
|
36237A
90520-39012 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．５０−２．５５，マーク Ｊ |
90520-39012 |
from US $1.31 |
||
|
36237A
|
36237A
90520-39013 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．００−２．０５，マーク Ｋ |
90520-39013 |
from US $1.31 |
||
|
36237A
|
36237A
90520-39014 Ring, Shaft Snap (For Transfer Clutch Hub)[11.2010 -] GSJ15 厚さ＝２．０５−２．１０，マーク Ｌ |
90520-39014 |
US $1.31 |
||
|
36246
|
36246
36246-35060 Ring, Transfer Front Drive Synchronizer[11.2010 -] GSJ15 |
36246-35060 |
US $32.50 |
||
|
36248
|
36248
36248-35031 Key, Synchromesh Shifting, Transfer Drive, No.1SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 [11.2010 -] GSJ15 |
36248-35031 |
US $2.62 |
||
|
36255
|
36255
36255-35020 Spacer, Transfer Output Shaft, No.1[11.2010 -] GSJ15 |
36255-35020 |
US $9.90 |
||
|
36255A
|
36255A
90360-05012 Ball, Reverse Shift Restrict[11.2010 -] GSJ15 |
90360-05012 |
from US $0.82 |
||
|
36270
|
36270
36270-35900 Gear Assy, Transfer Low Planetary[11.2010 -] GSJ15 |
36270-35900 |
US $569.59 |
||
|
36270A
|
36270A
90364-47001
Bearing (For Transfer Input Shaft)
[11.2010 -] GSJ15 ＮＯ．１ |
90364-47001 |
— | ||
| replacement | |||||
|
36270A
|
36270A
90364-47013 Bearing (For Transfer Input Shaft)[11.2010 -] GSJ15 ＮＯ．１ |
90364-47013 |
from US $18.35 |
||
|
36270A
|
36270A
90374-49001 Bearing, Thrust (For Transfer Input Shaft)[11.2010 -] GSJ15 ＮＯ．２ |
90374-49001 |
from US $14.13 |
||
|
36270B
|
36270B
90521-99056 Ring, Shaft Snap (For Transfer Low Planetary Gear)[11.2010 -] GSJ15 厚さ＝１．８ |
90521-99056 |
US $3.14 |
||
|
36270C
|
36270C
90520-99072 Ring, Shaft Snap(For Transfer Low Planetary Gear Bearing)[11.2010 -] GSJ15 |
90520-99072 |
US $2.62 |
||
|
36273
|
36273
36273-35030 Gear, Transfer Low Planetary Ring[11.2010 -] GSJ15 |
36273-35030 |
from US $45.08 |
||
|
36273A
|
36273A
90520-99078 Ring, Shaft Snap (For Transfer Low Planetary Gear)[11.2010 -] GSJ15 |
90520-99078 |
US $4.02 |
||
|
36278
|
36278
36278-35020 Washer, Manual Transfer Planetary Carrier[11.2010 -] GSJ15 厚さ＝０．９５−１．０５ |
36278-35020 |
from US $2.97 |
||
|
36284
|
36284
36284-35021
Piece, Transfer Low Planetary Gear Spline
[11.2010 - 02.2014] GSJ15 |
36284-35021 |
— | ||
| replacement | |||||
|
36284
|
36284
36235-35H01 Piece, Transfer Low Planetary Gear Spline[11.2010 - 02.2014] GSJ15 |
36235-35H01 |
US $181.71 |
||
|
36284
|
36284
36284-35022 Piece, Transfer Low Planetary Gear Spline[02.2014 -] GSJ15 |
36284-35022 |
US $35.53 |
||
|
36288
|
36288
36288-28010 Race, Transfer Thrust Bearing, No.1[11.2010 -] GSJ15 |
36288-28010 |
from US $6.05 |
||
|
36291A
|
36291A
90364-37013 Bearing (For Transfer Drive Sprocket)[11.2010 -] GSJ15 |
90364-37013 |
US $13.28 |
||
|
36292
|
36292
36292-35050 Sprocket, Transfer Driven[11.2010 - 07.2013] GSJ15 |
36292-35050 |
from US $143.39 |
||
|
36292
|
36292
36292-35070 Sprocket, Transfer Driven[07.2013 -] GSJ15 |
36292-35070 |
US $108.33 |
||
|
36292A
|
36292A
90363-28004 Bearing, Radial Ball (For Transfer Input Gear)[11.2010 -] GSJ15 ＮＯ．１ |
90363-28004 |
from US $18.17 |
||
|
36292A
|
36292A
90363-32037 Bearing (For Transfer Driven Sprocket)[11.2010 -] GSJ15 ＮＯ．２ |
90363-32037 |
from US $21.64 |
||
|
36293
|
36293
36293-35040 Chain, Transfer Front Drive[11.2010 - 07.2013] GSJ15 |
36293-35040 |
from US $313.73 |
||
|
36293
|
36293
36293-35050 Chain, Transfer Front Drive[07.2013 -] GSJ15 |
36293-35050 |
from US $284.83 |
||
|
9038731002
|
9038731002
90387-31002 COLLAR |
90387-31002 |
US $7.69 |
||
