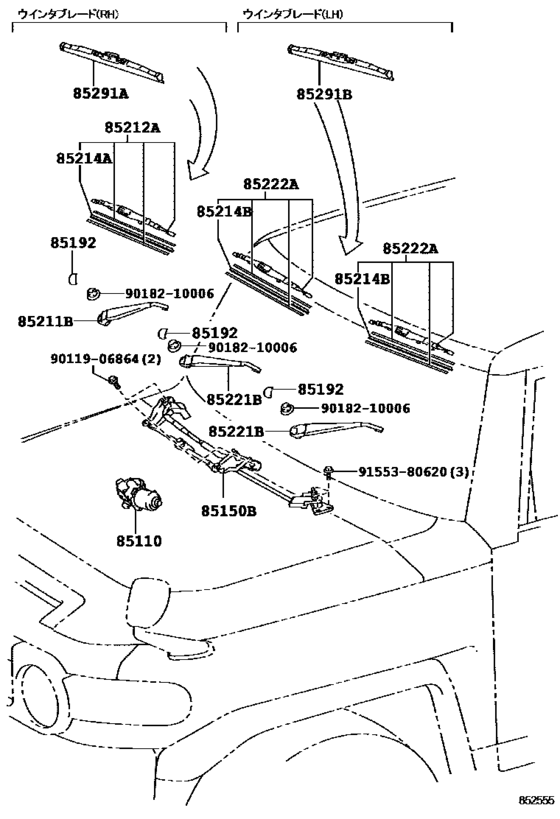

Windshield Wiper ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-60370 Motor Assy, Windshield Wiper[11.2010 -] GSJ15 |
85110-60370 |
US $262.48 |
||
|
85150B
|
85150B
85150-35240 Link Assy, Wiper[11.2010 - 10.2013] GSJ15 |
85150-35240 |
US $101.92 |
||
| replacement | |||||
|
85150B
|
85150B
85150-35241 Link Assy, Wiper[11.2010 - 10.2013] GSJ15 |
85150-35241 |
US $91.73 |
||
|
85150B
|
85150B
85150-35241 Link Assy, Wiper[11.2013 -] GSJ15 |
85150-35241 |
US $91.73 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[11.2010 -] GSJ15 |
85292-13010 |
from US $3.16 |
||
|
85211B
|
85211B
85211-35170 Arm, Front Wiper, Rh[11.2010 -] GSJ15 |
85211-35170 |
US $22.19 |
||
|
85212A
|
85212A
85222-58021 Blade, Fr Wiper, Rh[11.2010 -] GSJ15 |
85222-58021 |
US $21.25 |
||
|
85214A
|
85214A
85214-50061 Rubber, Wiper, Rh[11.2010 -] GSJ15 |
85214-50061 |
from US $7.26 |
||
|
85214B
|
85214B
85214-68011 Rubber, Wiper, Lh[11.2010 -] GSJ15 |
85214-68011 |
from US $6.82 |
||
|
85221B
|
85221B
85221-35150 Arm, Front Wiper, Lh[11.2010 -] GSJ15 |
85221-35150 |
US $22.19 |
||
|
85222A
|
85222A
85222-35140 Blade, Fr Wiper, Lh[11.2010 -] GSJ15 |
85222-35140 |
US $17.37 |
||
|
85291A
|
85291A
85291-35090 Blade, Front Wiper, Winter, Rh[11.2010 -] GSJ15 ウィンタブレード（ＤＯＰ） |
85291-35090 |
US $62.90 |
||
|
85291B
|
85291B
85291-28120 Blade Assy, Rear Wiper[11.2010 -] GSJ15 ウィンタブレード（ＤＯＰ） |
85291-28120 |
US $38.88 |
||
|
9011906864
|
9011906864
90119-06864 BOLT WWASHER |
90119-06864 |
US $0.96 |
||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
from US $0.82 |
||
|
9155380620
|
9155380620
91553-80620 BOLT FLANGE |
91553-80620 |
US $0.69 |
||
