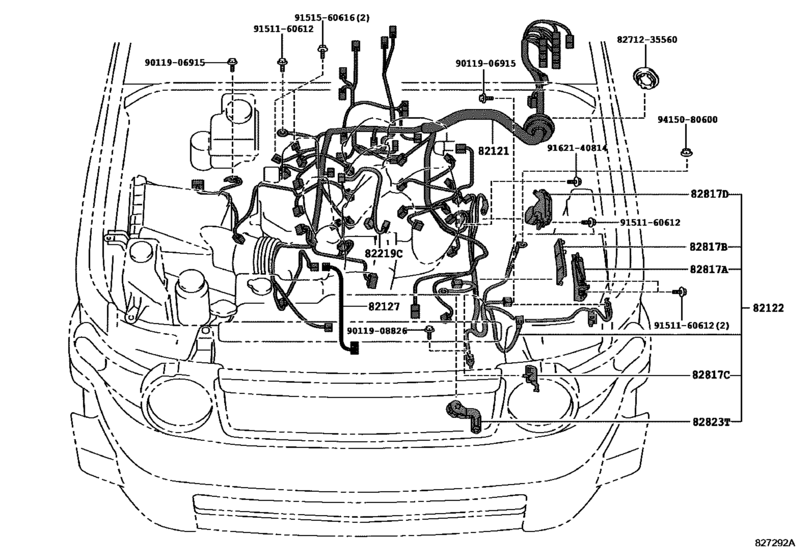

Wiring & Clamp ([11.2010 - ] ｴﾝｼﾞﾝ (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-35C90 Wire, Engine[11.2010 - 08.2011] GSJ15 |
82121-35C90 |
US $991.54 |
||
|
82121
|
82121
82121-35D40 Wire, Engine[08.2011 - 08.2012] GSJ15 |
82121-35D40 |
US $991.54 |
||
|
82121
|
82121
82121-35E10 Wire, Engine[08.2012 -] GSJ15 |
82121-35E10 |
US $749.84 |
||
|
82122
|
82122
82122-35A80 Wire, Engine, No.2ENGINE, NO.2 [11.2010 -] GSJ15 |
82122-35A80 |
US $88.82 |
||
|
82127
|
82127
82127-35260 Wire, Differential[11.2010 -] GSJ15 |
82127-35260 |
US $11.71 |
||
|
82219C
|
82219C
82219-35020 Wire, Sensor[11.2010 -] GSJ15 |
82219-35020 |
from US $13.62 |
||
|
82817A
|
82817A
82817-60G70 Protector, Wiring Harness, No.2WIRING HARNESS, NO.2 [11.2010 -] GSJ15 |
82817-60G70 |
US $9.32 |
||
|
82817B
|
82817B
82817-60G80 Protector, Wiring Harness, No.3WIRING HARNESS, NO.3 [11.2010 -] GSJ15 |
82817-60G80 |
US $4.37 |
||
|
82817C
|
82817C
82817-60G90 Protector, Wiring Harness, No.4WIRING HARNESS, NO.4 [11.2010 -] GSJ15 |
82817-60G90 |
US $1.75 |
||
|
82817D
|
82817D
82817-60M70 Protector, Wiring Harness, No.5WIRING HARNESS, NO.5 [11.2010 -] GSJ15 |
82817-60M70 |
US $10.19 |
||
|
82823T
|
82823T
82823-60060 Cap, Alternator TerminalTERMINAL, NO.3 [11.2010 - 03.2011] GSJ15 |
82823-60060 |
US $16.45 |
||
| replacement | |||||
|
82823T
|
82823T
82823-60061 Cap, Alternator Terminal[11.2010 - 03.2011] GSJ15 |
82823-60061 |
US $12.38 |
||
|
82823T
|
82823T
82823-60061 Cap, Alternator Terminal[03.2011 -] GSJ15 |
82823-60061 |
US $12.38 |
||
|
8271235560
|
8271235560
82712-35560
Hose, Suction
|
82712-35560 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.61 |
||
|
9011908826
|
9011908826
90119-08826 BOLT |
90119-08826 |
US $0.70 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.38 |
||
|
9151560616
|
9151560616
91515-60616 BOLT FLANGE |
91515-60616 |
US $0.69 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $0.96 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.63 |
||
