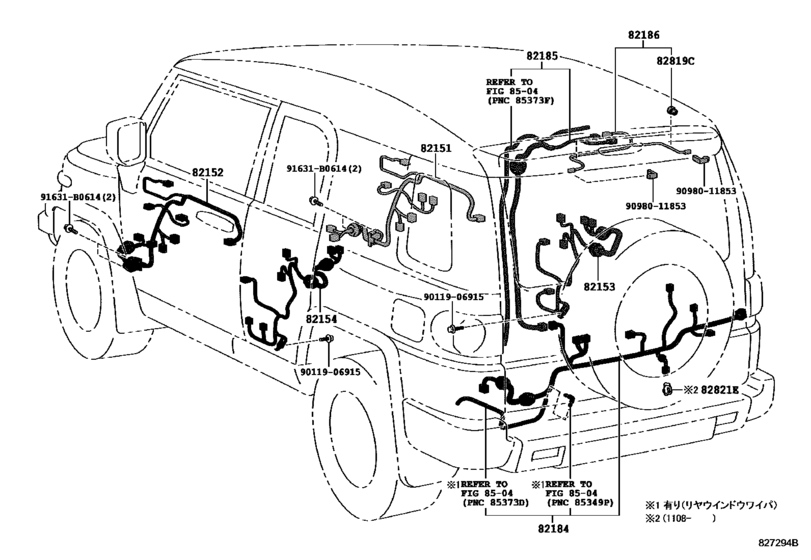

Wiring & Clamp ([11.2010 - ] ﾄﾞｱ (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-35520 Wire, Front Door, Rh[11.2010 -] GSJ15 |
82151-35520 |
US $120.85 |
||
|
82152
|
82152
82152-35440 Wire, Front Door, Lh[11.2010 -] GSJ15 |
82152-35440 |
US $103.38 |
||
|
82153
|
82153
82153-35260 Wire, Rear Door, No.1[11.2010 - 02.2014] GSJ15 |
82153-35260 |
US $39.75 |
||
| replacement | |||||
|
82153
|
82153
82153-35261 Wire, Rear Door, No.1[11.2010 - 02.2014] GSJ15 |
82153-35261 |
US $36.11 |
||
|
82153
|
82153
82153-35261 Wire, Rear Door, No.1[03.2014 -] GSJ15 |
82153-35261 |
US $36.11 |
||
|
82154
|
82154
82154-35100 Wire, Rear Door, No.2[11.2010 - 02.2014] GSJ15 |
82154-35100 |
US $47.61 |
||
| replacement | |||||
|
82154
|
82154
82154-35101 Wire, Rear Door, No.2[11.2010 - 02.2014] GSJ15 |
82154-35101 |
US $43.24 |
||
|
82154
|
82154
82154-35101 Wire, Rear Door, No.2[03.2014 -] GSJ15 |
82154-35101 |
US $43.24 |
||
|
82184
|
82184
82184-35400 Wire, Back Door, No.1[11.2010 - 08.2011] GSJ15 |
82184-35400 |
US $138.32 |
||
|
82184
|
82184
82184-35401 Wire, Back Door, No.1[08.2011 - 08.2014] GSJ15 |
82184-35401 |
US $133.95 |
||
|
82184
|
82184
82184-35402 Wire, Back Door, No.1[08.2014 - 08.2016] GSJ15 |
82184-35402 |
US $133.95 |
||
|
82184
|
82184
82184-35403 Wire, Back Door, No.1[08.2016 -] GSJ15 |
82184-35403 |
US $120.85 |
||
|
82184
|
82184
82184-35410 Wire, Back Door, No.1[11.2010 - 08.2011] GSJ15 リヤウィンドウワイパ−有り |
82184-35410 |
US $115.02 |
||
|
82184
|
82184
82184-35420 Wire, Back Door, No.1[08.2011 - 08.2014] GSJ15 リヤウィンドウワイパ−有り |
82184-35420 |
US $149.97 |
||
|
82184
|
82184
82184-35421 Wire, Back Door, No.1[08.2014 - 08.2016] GSJ15 リヤウィンドウワイパ−有り |
82184-35421 |
US $149.97 |
||
|
82184
|
82184
82184-35422 Wire, Back Door, No.1[08.2016 -] GSJ15 リヤウィンドウワイパ−有り |
82184-35422 |
US $135.41 |
||
|
82185
|
82185
82185-35120 Wire, Back Door, No.2BACK DOOR, NO.2 [11.2010 -] GSJ15 |
82185-35120 |
US $50.52 |
||
|
82186
|
82186
82186-35010 Wire, Rear Window, No.1REAR WINDOW, NO.1 [11.2010 -] GSJ15 |
82186-35010 |
US $7.28 |
||
|
82819C
|
82819C
82819-35320 Grommet, Wiring HarnessWIRING HARNESS [11.2010 -] GSJ15 |
82819-35320 |
US $4.80 |
||
|
82821E
|
82821E
82821-35160 Cover, Connector[08.2011 -] GSJ15 |
82821-35160 |
US $4.80 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.68 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.61 |
||
|
9098011853
|
9098011853
90980-11853 New Genuine Part |
90980-11853 |
US $2.62 |
||
