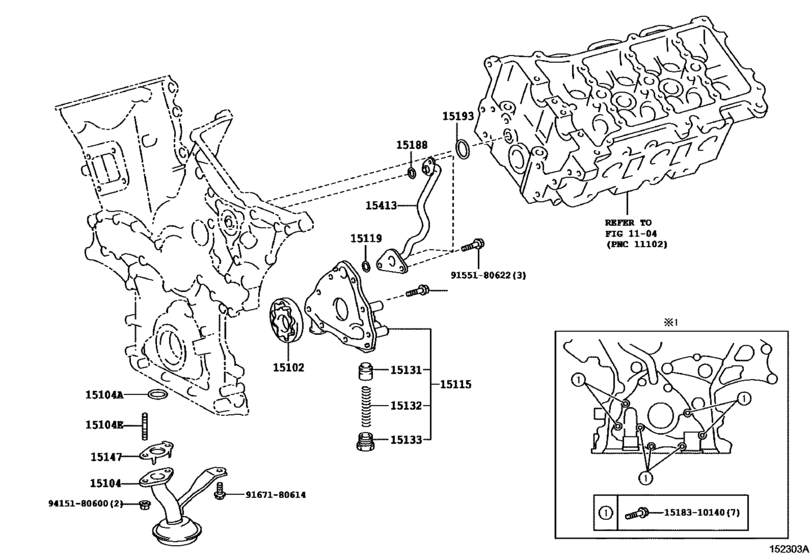

Engine Oil Pump ([12.2015 - ] (1512- )1GRFE) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GGN155
- body
- THSUV
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 01.2016
- Gear Shift Type
- 6FC
- Model Mark
- S
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15102
|
15102
15103-31050 Rotor Set, Oil Pump[12.2015 -] 1GRFE..GGN155,165 |
15103-31050 |
from US $36.62 |
||
|
15104
|
15104
15104-31110 Strainer Sub-Assy, OilOIL [12.2015 -] 1GRFE..GGN155,165 |
15104-31110 |
US $36.21 |
||
|
15104A
|
15104A
96722-24030 Ring, O(For Oil Strainer)[12.2015 -] 1GRFE..GGN155,165 |
96722-24030 |
from US $2.24 |
||
|
15104E
|
15104E
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe)[12.2015 -] 1GRFE..GGN155,165 |
90126-06029 |
from US $0.68 |
||
| replacement | |||||
|
15104E
|
15104E
90126-A0014 Bolt, Stud(For Oil Strainer)[12.2015 -] 1GRFE..GGN155,165 |
90126-A0014 |
US $1.77 |
||
|
15115
|
15115
15115-31050 Cover, Oil Pump[12.2015 -] 1GRFE..GGN155,165 |
15115-31050 |
from US $20.69 |
||
|
15119
|
15119
15119-31050 Gasket, Oil Pump Cover[12.2015 -] 1GRFE..GGN155,165 |
15119-31050 |
from US $4.39 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[12.2015 -] 1KDFTV..KUN156..L,M,S;1KDFTV..KUN156..LHD..H; 1GRFE..GGN155,165 |
15131-46040 |
US $4.96 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[12.2015 -] 1GRFE..GGN155,165 |
15132-46020 |
from US $1.48 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[12.2015 -] 1GRFE..GGN155,165 |
15133-28020 |
US $3.67 |
||
|
15147
|
15147
15147-46010 Gasket, Oil Strainer[12.2015 -] 1GRFE..GGN155,165 |
15147-46010 |
US $4.80 |
||
|
15188
|
15188
15188-31050 Gasket, Oil Pump[12.2015 -] 1GRFE..GGN155,165 |
15188-31050 |
from US $2.18 |
||
|
15193
|
15193
15193-31010 Gasket, Oil Pump[12.2015 -] 1GRFE..GGN155,165 |
15193-31010 |
from US $2.38 |
||
|
15413
|
15413
15413-31020 Pipe, Oil Pump Outlet[12.2015 -] 1GRFE..GGN155,165 |
15413-31020 |
US $15.20 |
||
|
1518310140
|
1518310140
15183-10140 Bolt, Union(For Oil Pump) |
15183-10140 |
US $2.62 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $0.96 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
