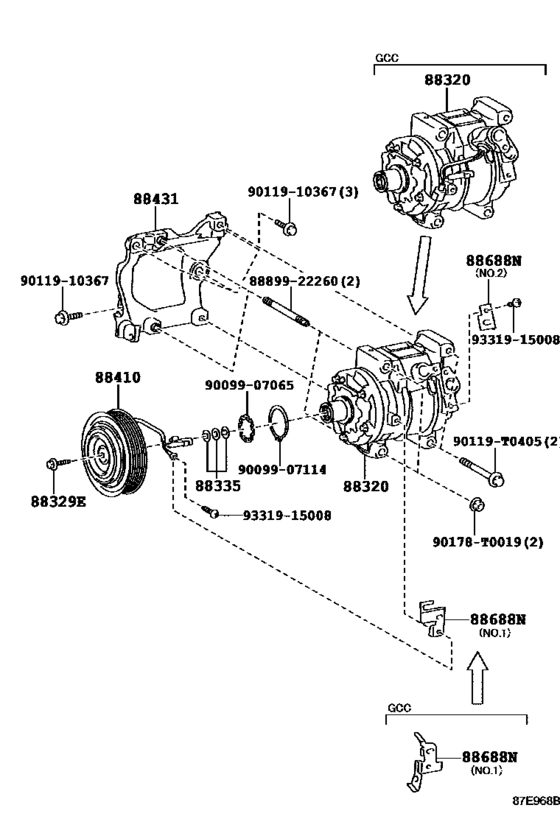

Heating & Air Conditioning - Compressor ([07.2015 - ] (1507- )GUN15#,16#..AGTSU,IDNSU,INDSU,MASUV,T HSUV) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GUN155
- body
- THSUV
- ENGINE
- 2GDFTV
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 01.2016
- Gear Shift Type
- 6FC
- Model Mark
- S
- Driver's Position
- LHD
- Fuel Induction
- HDCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-0K640
Compressor Assy, Cooler
[01.2016 -] GUN155,165..GCC |
88320-0K640 |
— | ||
|
88329E
|
88329E
90099-04349 Bolt, Magnet Clutch Setting[07.2015 -] KUN156..AGTSU;GGN155,165,GUN15#,16#,TGN156,16#..AGTSU,EPTSU,IDNSU,INDSU,MASUV,THSU V |
90099-04349 |
from US $0.70 |
||
|
88335
|
88335
88335-14020 Washer[07.2015 -] KUN156..L,M;KUN156..LHD..H;GGN155,165,GUN15#,16#,TGN156,16#..AGTSU,EPTSU,IDNSU,IND SU,MASUV,THSUV |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-0K680 Clutch Assy, Magnet[01.2016 -] GUN155,165..GCC |
88410-0K680 |
US $332.71 |
||
|
88431
|
88431
88431-0K140
Bracket, Compressor Mounting, No.1
[07.2015 -] GUN15#,16#..THSUV |
88431-0K140 |
— | ||
|
88688N
|
88688N
88849-0K020
Bracket, Cooler
[07.2015 -] GUN15#,16#..AGTSU,IDNSU,INDSU,MASUV,THSUV NO.2 |
88849-0K020 |
— | ||
|
88688N
|
88688N
88849-0K030
Bracket, Cooler
[01.2016 -] GUN155,165..GCC NO.1; GGN155,165..EPT,GCC |
88849-0K030 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.82 |
||
|
8889922260
|
8889922260
88899-22260
Cover, Evaporator
|
88899-22260 |
— | ||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9011910367
|
9011910367
90119-10367 BOLT |
90119-10367 |
US $1.76 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
