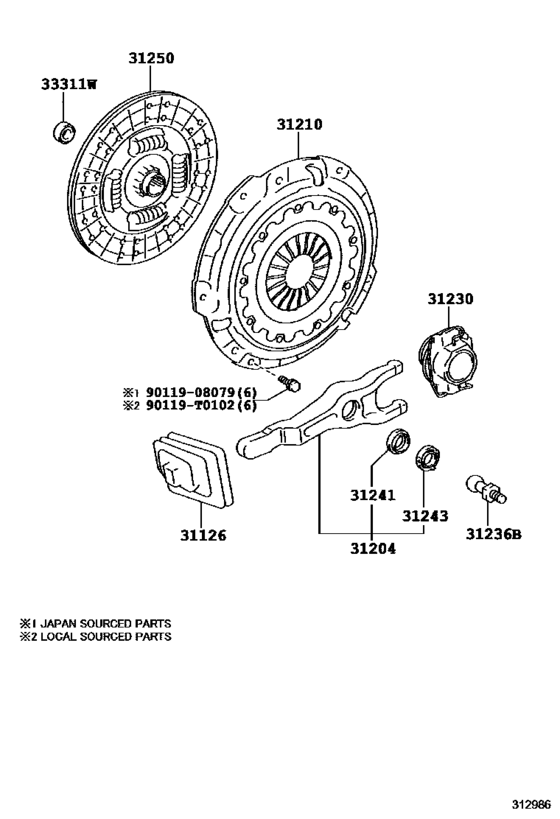

Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GUN165
- body
- IDNSU
- ENGINE
- 2GDFTV
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 01.2016
- Gear Shift Type
- 6F
- Model Mark
- S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-0K080 Boot, Clutch Release Fork[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) |
31126-0K080 |
from US $8.48 |
||
|
31204
|
31204
31204-0K110 Fork Sub-Assy, Clutch Release[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31204-0K110 |
from US $49.25 |
||
|
31210
|
31210
31210-0K280 Cover Assy, Clutch[07.2015 -] GUN156,16#..(IDNSU,INDSU,THSUV)..6F |
31210-0K280 |
US $257.71 |
||
| replacement | |||||
|
31210
|
31210
31210-0K281 COVER ASSY, CLUTCH[07.2015 -] GUN156,16#..(IDNSU,INDSU,THSUV)..6F |
31210-0K281 |
from US $213.92 |
||
|
31230
|
31230
31230-71050
Bearing Assy, Clutch Release
[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31230-71050 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-71052 BEARING ASSY CLUTCH[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31230-71052 |
from US $50.16 |
||
|
31236B
|
31236B
31236-0K010 Support, Release Fork[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31236-0K010 |
from US $7.52 |
||
|
31241
|
31241
31241-71010 Boot, Clutch Release Fork Support[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31241-71010 |
from US $0.55 |
||
|
31243
|
31243
31243-0K010 Collar, Clutch Release Fork[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31243-0K010 |
from US $1.28 |
||
|
31250
|
31250
31250-0K280 Disc Assy, Clutch[07.2015 - 04.2017] GUN156,16#,KUN156..(IDNSU,INDSU,THSUV)..6F |
31250-0K280 |
US $294.11 |
||
|
33311W
|
33311W
90363-T0006 Bearing (For Input Shaft)[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) |
90363-T0006 |
from US $4.64 |
||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[07.2015 -] GUN156..RHD..6F;GUN16#,KUN156..6F;GUN156..6F..(BZAGT,LA) |
90363-12024 |
from US $5.91 |
||
|
90119T0102
|
90119T0102
90119-T0102
Bolt (For Transmission Control Cable Bracket)
|
90119-T0102 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
