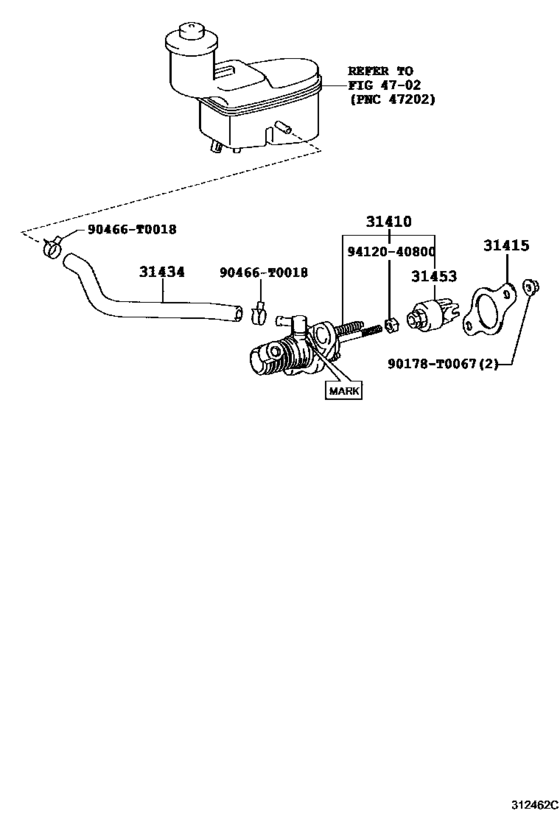

Clutch Master Cylinder ([07.2011 - ] (1107- )LAN50,TGN51,61..5F ; (1107- )KUN60 ..5F..GEN,IDN,PHL,VN) Diagram Toyota FORTUNER
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN60
- grade
- SR
- body
- IDSUV
- ENGINE
- 2KDFTV
- DESTINATION
- PHL
- From
- 07.2011
- To
- 10.2015
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31410
|
31410
31420-0K013
Cylinder Assy, Clutch Master
[07.2011 - 08.2012] KUN60..5F..(IDN,PHL) |
31420-0K013 |
— | ||
| replacement | |||||
|
31410
|
31410
31420-0K014 CYLINDER ASSY MASTE[07.2011 - 08.2012] KUN60..5F..(IDN,PHL) |
31420-0K014 |
US $87.79 |
||
|
31410
|
31410
31420-0K030 Cylinder Assy, Clutch MasterCLUTCH MASTER [08.2012 - 06.2013] KUN60..5F..(IDN,PHL) |
31420-0K030 |
US $77.14 |
||
|
31410
|
31410
31420-0K050
Cylinder Assy, Clutch Master
[07.2013 - 11.2014] KUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,IND,SA);KUN60..5F..(IDN,PHL,SA,TH,VN) MARK = 5/8 |
31420-0K050 |
— | ||
|
31410
|
31410
31420-0K080
Cylinder Assy, Clutch Master
[11.2014 - 11.2016] KUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,SA);KUN60..5F..(IDN,PHL,SA,TH,VN) MARK = 3/4 |
31420-0K080 |
— | ||
|
31415
|
31415
31415-0K010 Gasket, Clutch Master CylinderCLUTCH MASTER CYLINDER [07.2011 - 03.2017] GGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) |
31415-0K010 |
US $1.31 |
||
|
31434
|
31434
31434-71020
Tube, Clutch Reservoir
[07.2011 - 08.2012] KUN60..5F..PHL |
31434-71020 |
— | ||
|
31434
|
31434
31434-71040 Tube, Clutch ReservoirCLUTCH RESERVOIR [08.2012 - 11.2016] KUN60..5F..PHL |
31434-71040 |
US $17.18 |
||
|
31453
|
31453
31404-0K010
Clevis, Clutch Master Cylinder Push Rod
[07.2011 - 07.2013] KUN51,61..5F..(GEN,IND,SA);KUN60..5F..(IDN,PHL,SA,TH,VN) |
31404-0K010 |
— | ||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[07.2013 - 11.2013] KUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,IND,SA);KUN60..5F..(IDN,PHL,SA,TH,VN) |
31453-35010 |
US $6.64 |
||
|
31453
|
31453
31453-71010
Clevis, Clutch Master Cylinder Push Rod
[12.2013 - 11.2016] KUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,SA);KUN60..5F..(IDN,PHL,SA,TH,VN) |
31453-71010 |
— | ||
|
90178T0067
|
90178T0067
90178-T0067
New Genuine Part
|
90178-T0067 |
— | ||
|
90466T0018
|
90466T0018
90466-T0018
Clip(For Union To Connector Tube Hose)
|
90466-T0018 |
— | ||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
