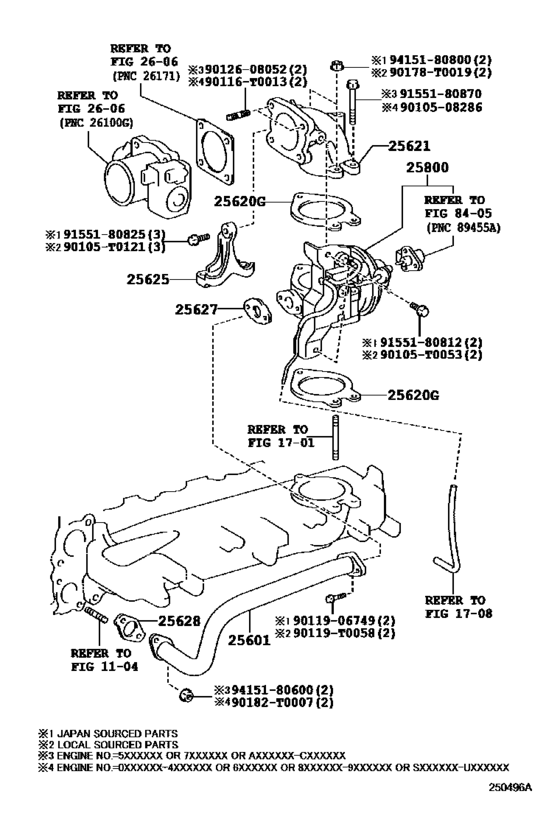

Exhaust Gas Recirculation System ([07.2011 - 08.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) Diagram Toyota FORTUNER
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN60
- grade
- SR
- body
- IDSUV
- ENGINE
- 2KDFTV
- DESTINATION
- PHL
- From
- 07.2011
- To
- 10.2015
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-0L010
Pipe Sub-Assy, Egr, No.1
[07.2011 - 10.2015] 2KDFTV..KUN50,60..IDSUV;1KDFTV..KUN51..IDSUV..5F;1KDFTV..KUN51..IDSUV..4FC..(LA,PH L) *130 |
25601-0L010 |
— | ||
|
25601
|
25601
25601-30070
Pipe Sub-Assy, Egr, No.1
[07.2011 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL);1KDFTV,2KDFTV..KUN51,60..IDSUV..5F..(GEN,LA);1KDFT V,2KDFTV..KUN5#..IDSUV..4FC..(IDN,LA,PHL) *360 |
25601-30070 |
— | ||
|
25620G
|
25620G
26171-0L010 Gasket, Intake Air ConnectorINTAKE AIR CONNECTOR [07.2011 - 08.2012] 2KDFTV..KUN60..TH *130,NO.1; 2KDFTV..KUN60..IDN,PHL *130 |
26171-0L010 |
US $3.79 |
||
|
25620G
|
25620G
26171-0L030
Gasket, Diesel Throttle
[08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *130,NO.2 |
26171-0L030 |
— | ||
|
25620G
|
25620G
26171-30030 Gasket, Intake Air Connector[07.2011 - 08.2012] 2KDFTV..KUN60..IDN,PHL *360 |
26171-30030 |
from US $3.39 |
||
|
25620G
|
25620G
26171-30050 Gasket, Diesel ThrottleINTAKE AIR CONNECTOR [08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *360,NO.2 |
26171-30050 |
US $6.08 |
||
|
25621
|
25621
17861-0L010
Connector, Intake Air(For Gasket)
[07.2011 - 12.2011] 1KDFTV..KUN51..THSUV;2KDFTV..KUN50,60..IDN,MA,PHL;1KDFTV..KUN51,61..CO,PHL,SA,TH *130 |
17861-0L010 |
— | ||
|
25621
|
25621
17861-0L030
Connector, Intake Air(For Gasket)
[08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *130 |
17861-0L030 |
— | ||
|
25621
|
25621
17861-30070
Connector, Intake Air(For Gasket)
[07.2011 - 08.2012] 2KDFTV..KUN60..IDN,PHL *360 |
17861-30070 |
— | ||
|
25621
|
25621
17861-30090
Connector, Intake Air(For Gasket)
[08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *360 |
17861-30090 |
— | ||
|
25625
|
25625
26127-0L010
Bracket, Intake Air Connector, No.2
[07.2011 - 08.2012] 2KDFTV..KUN60..IDN,PHL *130 |
26127-0L010 |
— | ||
|
25625
|
25625
26127-0L020
Bracket, Egr Valve
[08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *130 |
26127-0L020 |
— | ||
|
25625
|
25625
26127-30020
Bracket, Intake Air Connector, No.2
[07.2011 - 08.2012] 2KDFTV..KUN60..IDN,PHL *360 |
26127-30020 |
— | ||
|
25625
|
25625
26127-30030
Bracket, Egr Valve
[08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *360 |
26127-30030 |
— | ||
|
25627
|
25627
25627-0L010 Gasket, Egr ValveEGR VALVE [07.2011 - 08.2012] 2KDFTV..KUN60..TH *130,NO.1; 2KDFTV..KUN60..IDN,PHL *130 |
25627-0L010 |
US $2.48 |
||
|
25627
|
25627
25627-30030 Gasket, Egr ValveEGR VALVE [07.2011 - 08.2012] 2KDFTV..KUN60..IDN,PHL *360 |
25627-30030 |
US $3.32 |
||
|
25627
|
25627
25627-30060 Gasket, Egr ValveEGR VALVE [08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *360,NO.2,*130,NO.2 |
25627-30060 |
US $4.32 |
||
|
25628
|
25628
25628-0L010
Gasket, Egr Inlet
[07.2011 - 10.2015] 2KDFTV..KUN50,60..IDSUV;1KDFTV..KUN51..IDSUV..5F;1KDFTV..KUN51..IDSUV..4FC..(LA,PH L) *130 |
25628-0L010 |
— | ||
|
25628
|
25628
25628-30020 Gasket, Egr InletEGR INLET [07.2011 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL);1KDFTV,2KDFTV..KUN51,60..IDSUV..5F..(GEN,LA);1KDFT V,2KDFTV..KUN5#..IDSUV..4FC..(IDN,LA,PHL) *360 |
25628-30020 |
US $2.62 |
||
|
25800
|
25800
25800-0L020
Valve Assy, Electric Egr Control
[07.2011 - 08.2012] 2KDFTV..KUN60..IDN,PHL *130,*360 |
25800-0L020 |
— | ||
|
25800
|
25800
25800-0L080
Valve Assy, Electric Egr Control
[08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *130 |
25800-0L080 |
— | ||
|
25800
|
25800
25800-30120 Valve Assy, Electric Egr ControlELECTRIC EGR CONTROL [08.2012 - 10.2015] 2KDFTV..KUN60..IDSUV..(IDN,PHL) *360 |
25800-30120 |
from US $251.73 |
||
|
90105T0053
|
90105T0053
90105-T0053
New Genuine Part
|
90105-T0053 |
— | ||
|
90105T0121
|
90105T0121
90105-T0121
New Genuine Part
|
90105-T0121 |
— | ||
|
90116T0013
|
90116T0013
90116-T0013
New Genuine Part
|
90116-T0013 |
— | ||
|
90119T0058
|
90119T0058
90119-T0058
New Genuine Part
|
90119-T0058 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.82 |
||
|
90182T0007
|
90182T0007
90182-T0007
New Genuine Part
|
90182-T0007 |
— | ||
|
9010508286
|
9010508286
90105-08286 New Genuine Part |
90105-08286 |
US $4.16 |
||
|
9011906749
|
9011906749
90119-06749 BOLT WWASHER |
90119-06749 |
US $1.44 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.90 |
||
|
9155180812
|
9155180812
91551-80812 BOLT FLANGE |
91551-80812 |
US $1.28 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9155180870
|
9155180870
91551-80870 Bolt(For Cylinder Head Cover) |
91551-80870 |
US $1.60 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
