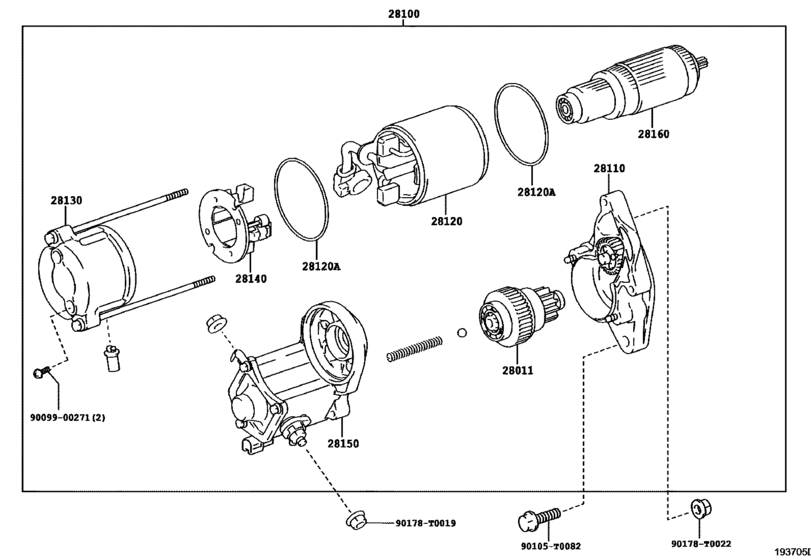

Starter ([07.2011 - ] 12V 2.0KW (1107- )2KDFTV..KUN60..5F) Diagram Toyota FORTUNER
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN60
- grade
- SR
- body
- IDSUV
- ENGINE
- 2KDFTV
- DESTINATION
- PHL
- From
- 07.2011
- To
- 10.2015
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-30040 Clutch Sub-Assy, Starter[07.2011 - 10.2015] 2KDFTV..KUN60..IDSUV..5F |
28011-30040 |
from US $128.82 |
||
|
28100
|
28100
28100-0L041
Starter Assy
[07.2011 - 07.2013] 2KDFTV..KUN60..5F 12V 2.0KW |
28100-0L041 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-0L042 Starter Assy[07.2011 - 07.2013] 2KDFTV..KUN60..5F 12V 2.0KW |
28100-0L042 |
US $520.51 |
||
|
28100
|
28100
28100-0L042 Starter Assy[08.2013 - 10.2015] 2KDFTV..KUN60..IDSUV..5F 12V 2.0KW |
28100-0L042 |
US $520.51 |
||
|
28110
|
28110
28110-30040
Housing Assy, Starter Drive
[07.2011 - 08.2013] 2KDFTV..KUN60..5F |
28110-30040 |
— | ||
|
28120
|
28120
28120-YE010
Yoke Assy, Starter
[07.2011 - 10.2015] 2KDFTV..KUN60..IDSUV..5F |
28120-YE010 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[07.2011 - 10.2015] 2TRFE..TGN51,61..IDSUV..GCC;1GRFE,2KDFTV..GGN50,KUN60..IDSUV..(5F,5FC)..(GCC,GEN,I DN,PHL) |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-30040
Frame Assy, Starter Commutator End
[07.2011 - 08.2013] 2KDFTV..KUN60..5F |
28130-30040 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[07.2011 - 10.2015] 2KDFTV..KUN60..IDSUV..5F |
28140-54380 |
from US $53.46 |
||
|
28150
|
28150
28150-0L041 Switch Assy, Magnet StarterMAGNET STARTER [07.2011 - 10.2015] 2KDFTV..KUN60..IDSUV..5F |
28150-0L041 |
US $167.90 |
||
|
28160
|
28160
28160-YE010
Armature Assy, Starter
[07.2011 - 10.2015] 2KDFTV..KUN60..IDSUV..5F |
28160-YE010 |
— | ||
|
90105T0082
|
90105T0082
90105-T0082
BOLT FLANGE
|
90105-T0082 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.82 |
||
|
90178T0022
|
90178T0022
90178-T0022
NUT FLANGE
|
90178-T0022 |
— | ||
|
9009900271
|
9009900271
90099-00271
Screw, Starter
|
90099-00271 |
— | ||
