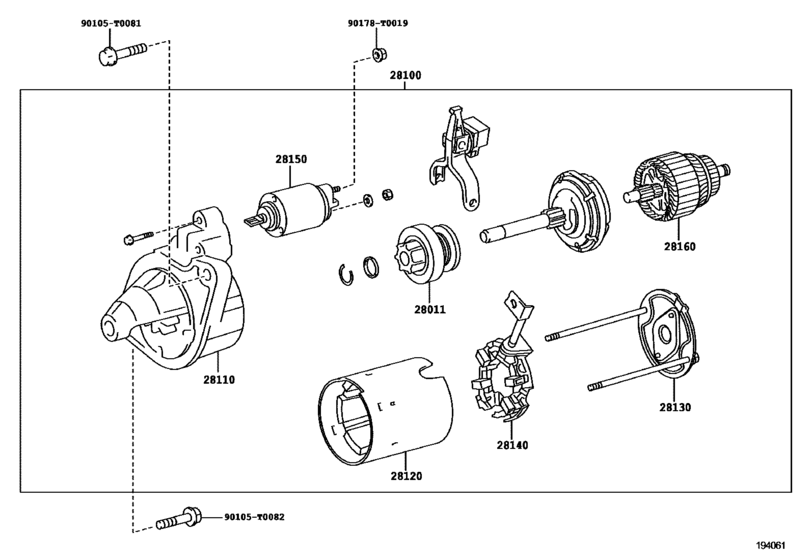

Starter ([09.2005 - ] 12V 2.2KW (0509- )1KDFTV..5F..LA) Diagram Toyota FORTUNER
- Year
- 2005 - 2011
- Sales region
- General
- Frame
- KUN61
- grade
- DLX
- body
- SUVW
- ENGINE
- 1KDFTV
- DESTINATION
- LA
- From
- 09.2005
- To
- 10.2011
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-0L070
Clutch Sub-Assy, Starter
[09.2005 - 03.2007] 1KDFTV..KUN51,61..5F..LA |
28011-0L070 |
— | ||
| replacements | |||||
|
28011
|
28011
28011-0L071
Clutch Sub-Assy, Starter
[09.2005 - 03.2007] 1KDFTV..KUN51,61..5F..LA |
28011-0L071 |
— | ||
|
28011
|
28011
28110-0L071
Housing Assy, Starter Drive
[09.2005 - 03.2007] 1KDFTV..KUN51,61..5F..LA |
28110-0L071 |
— | ||
|
28011
|
28011
28011-0L071
Clutch Sub-Assy, Starter
[10.2008 - 10.2011] 1KDFTV..KUN51,61..5F..LA |
28011-0L071 |
— | ||
|
28100
|
28100
28100-0L070
Starter Assy
[09.2005 - 02.2007] 1KDFTV..KUN51,61..5F..LA 12V 2.2KW |
28100-0L070 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-0L072
Starter Assy
[09.2005 - 02.2007] 1KDFTV..KUN51,61..5F..LA 12V 2.2KW |
28100-0L072 |
— | ||
|
28100
|
28100
28100-0L071
Starter Assy
[03.2007 - 10.2008] 1KDFTV..KUN51,61..5F..LA 12V 2.2KW |
28100-0L071 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-0L072
Starter Assy
[03.2007 - 10.2008] 1KDFTV..KUN51,61..5F..LA 12V 2.2KW |
28100-0L072 |
— | ||
|
28110
|
28110
28110-0L071
Housing Assy, Starter Drive
[10.2008 - 10.2011] 1KDFTV..KUN51,61..5F..LA |
28110-0L071 |
— | ||
|
28120
|
28120
28120-0L070
Yoke Assy, Starter
[09.2005 - 10.2008] 1KDFTV..KUN51,61..5F..LA |
28120-0L070 |
— | ||
|
28130
|
28130
28130-0L070
Frame Assy, Starter Commutator End
[10.2008 - 10.2011] 1KDFTV..KUN51,61..5F..LA |
28130-0L070 |
— | ||
|
28140
|
28140
28140-0L070
Holder Assy, Starter Brush
[09.2005 - 10.2008] 1KDFTV..KUN51,61..LHD..SUVW..5F |
28140-0L070 |
— | ||
|
28150
|
28150
28150-0L070
Switch Assy, Magnet Starter
[09.2005 - 03.2007] 1KDFTV..KUN51,61..5F..LA |
28150-0L070 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-0L071
Switch Assy, Magnet Starter
[09.2005 - 03.2007] 1KDFTV..KUN51,61..5F..LA |
28150-0L071 |
— | ||
|
28150
|
28150
28150-0L071
Switch Assy, Magnet Starter
[03.2007 - 10.2008] 1KDFTV..KUN51,61..LHD..SUVW..5F |
28150-0L071 |
— | ||
|
28160
|
28160
28160-0L070
Armature Assy, Starter
[09.2005 - 10.2008] 1KDFTV..KUN51,61..LHD..SUVW..5F |
28160-0L070 |
— | ||
|
90105T0081
|
90105T0081
90105-T0081
Bolt, Rear Differential Bearing Cap
|
90105-T0081 |
— | ||
|
90105T0082
|
90105T0082
90105-T0082
BOLT FLANGE
|
90105-T0082 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.82 |
||
