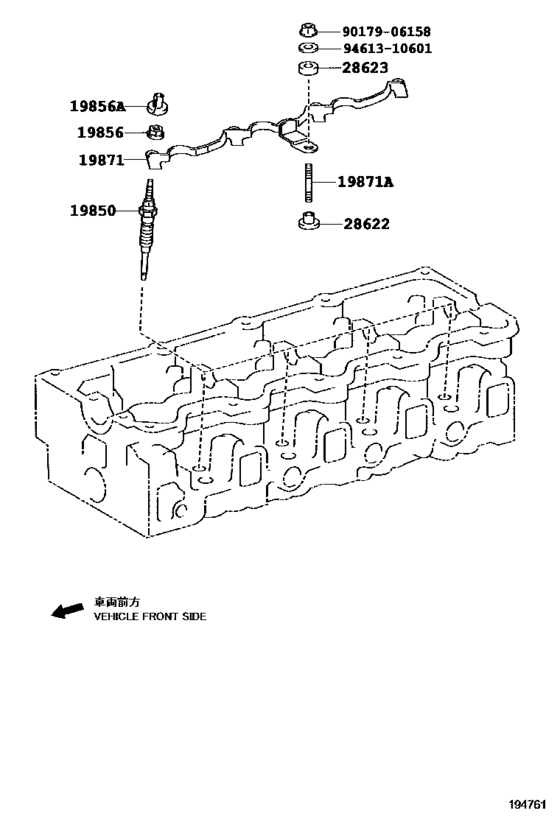

Ignition Coil & Spark Plug ([03.2016 - ] (1603- )5LE) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- LAN155
- body
- SASUV
- ENGINE
- 5LE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 03.2016
- Gear Shift Type
- 5F
- Model Mark
- S
- Driver's Position
- LHD
- Fuel Induction
- DEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19850
|
19850
19850-54140 Plug Assy, GlowGLOW [03.2016 -] 5LE..LAN155 *BV-GV=12V-11V |
19850-54140 |
from US $31.24 |
||
|
19856
|
19856
90179-04030 Nut, Connecting(For Glow Plug)[03.2016 -] 5LE..LAN155 |
90179-04030 |
US $0.96 |
||
|
19856A
|
19856A
90189-04024 Grommet, Screw(For Glow Plug)[03.2016 -] 5LE..LAN155 |
90189-04024 |
from US $0.72 |
||
|
19871
|
19871
19871-54020 Connector, Glow Plug No.1[03.2016 -] 5LE..LAN155 |
19871-54020 |
from US $10.28 |
||
| replacement | |||||
|
19871
|
19871
19871-05010
Connector, Glow Plug No.1
[03.2016 -] 5LE..LAN155 |
19871-05010 |
— | ||
|
19871A
|
19871A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[03.2016 -] 5LE..LAN155 |
90116-06095 |
US $1.44 |
||
|
28622
|
28622
28622-57010 Insulator, Glow Plug Resistor, No.1[03.2016 -] 5LE..LAN155 |
28622-57010 |
from US $1.40 |
||
|
28623
|
28623
28623-54010 Insulator, Glow Plug Resistor, No.2[03.2016 -] 5LE..LAN155 |
28623-54010 |
from US $1.40 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
