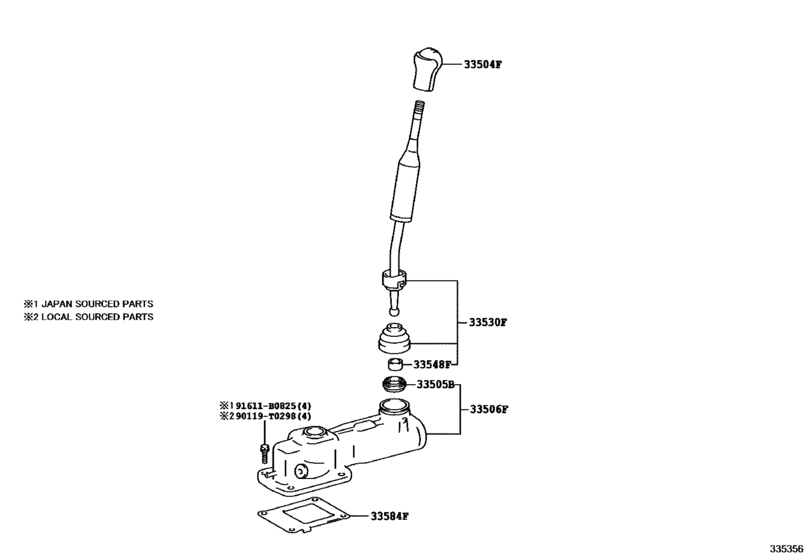

Shift Lever & Retainer ([01.2016 - ] (1601- )LAN155,TGN156..5F) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- LAN155
- body
- SASUV
- ENGINE
- 5LE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 03.2016
- Gear Shift Type
- 5F
- Model Mark
- S
- Driver's Position
- LHD
- Fuel Induction
- DEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-0K050-C0 Knob Sub-Assy, Shift Lever[03.2016 -] LAN155 BLACK,TRIM4# |
33504-0K050-C0 |
US $131.22 |
||
|
33505B
|
33505B
33505-0K010 Seat Sub-Assy, Shift LeverSHIFT LEVER [07.2015 -] KUN156..6F;GUN156..RHD..6F;GUN156..6F..(BZAGT,LA) TYPE A:REFER 33-01; GUN16#,LAN155..MTM; GUN156,KUN156,TGN156,16#..(AGTSU,IDNSU,INDSU,SASUV,THSUV)..MTM TYPE B:REFER 33-01 |
33505-0K010 |
from US $32.68 |
||
|
33506F
|
33506F
33570-0K070
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[03.2016 -] LAN155 |
33570-0K070 |
— | ||
|
33530F
|
33530F
33530-0K780
Lever Assy, Shift (For Floor Shift)
[03.2016 -] LAN155 |
33530-0K780 |
— | ||
|
33548F
|
33548F
33548-04010 Bush, No.1, Shift Lever (For Floor Shift)[01.2016 -] LAN155,TGN156,16#..5F |
33548-04010 |
US $2.32 |
||
| replacement | |||||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[01.2016 -] LAN155,TGN156,16#..5F |
33548-31010 |
from US $3.89 |
||
|
33584F
|
33584F
33584-60070
Gasket, Control Shift Lever Retainer (For Floor Shift)
[03.2016 -] LAN155 |
33584-60070 |
— | ||
|
90119T0298
|
90119T0298
90119-T0298
New Genuine Part
|
90119-T0298 |
— | ||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
