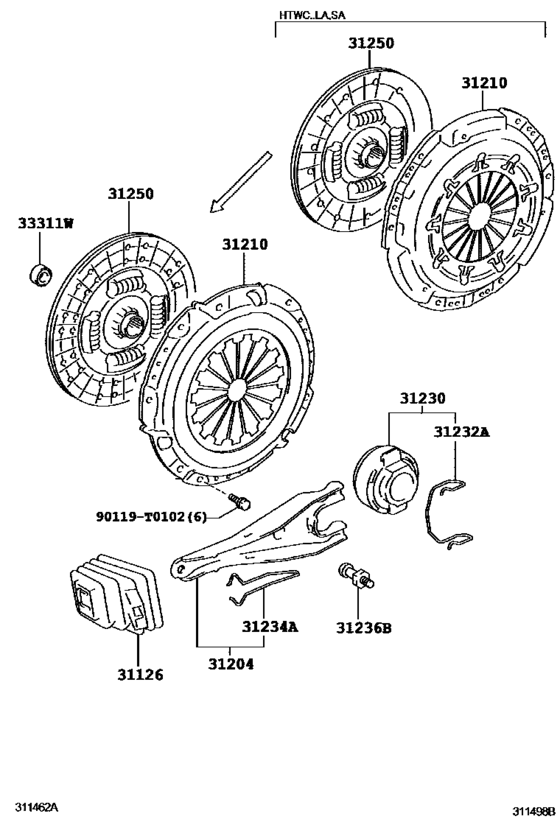

Clutch & Release Fork ([07.2005 - ] (0507- )TGN51,61..5F) Diagram Toyota FORTUNER
- Year
- 2007 - 2011
- Sales region
- General
- Frame
- TGN61
- grade
- SR
- body
- IDSUV
- ENGINE
- 2TRFE
- DESTINATION
- GCC
- From
- 08.2007
- To
- 07.2011
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-0K070
Boot, Clutch Release Fork
[08.2008 - 10.2011] TGN51,61..5F TYPE D:REFER 33-01 |
31126-0K070 |
— | ||
|
31126
|
31126
31126-36080 Boot, Clutch Release Fork[09.2005 - 10.2008] TGN61..5F;TGN51..SA;TGN51..IDSUV..5F |
31126-36080 |
from US $10.08 |
||
|
31204
|
31204
31204-0K020 Fork Sub-Assy, Clutch Release[09.2005 - 10.2008] TGN51,61..LA,SA;TGN51,61..IDSUV..5F |
31204-0K020 |
from US $32.03 |
||
|
31204
|
31204
31204-35031 Fork Sub-Assy, Clutch Release[08.2008 - 10.2011] TGN51,61..5F TYPE D:REFER 33-01 |
31204-35031 |
from US $21.89 |
||
|
31210
|
31210
31210-0K131 Cover Assy, Clutch[04.2007 - 08.2008] TGN51,61..5F..GCC |
31210-0K131 |
US $169.34 |
||
|
31230
|
31230
31230-71020 Bearing Assy, Clutch Release[09.2005 - 10.2008] TGN61..5F;TGN51..SA;TGN51..IDSUV..5F |
31230-71020 |
US $86.81 |
||
|
31232A
|
31232A
31232-71020 Clip, Release Bearing HubRELEASE BEARING HUB [09.2005 - 10.2008] TGN61..5F;TGN51..SA;TGN51..IDSUV..5F |
31232-71020 |
US $1.89 |
||
|
31234A
|
31234A
31234-35011 Spring, Release Fork SupportRELEASE FORK SUPPORT [09.2005 - 10.2008] TGN61..5F;TGN51..SA;TGN51..IDSUV..5F |
31234-35011 |
US $0.87 |
||
|
31236B
|
31236B
31236-35030 Ball, Release Fork[09.2005 - 10.2008] TGN61..5F;TGN51..SA;TGN51..IDSUV..5F |
31236-35030 |
from US $5.28 |
||
|
31236B
|
31236B
31236-71030 Support, Release ForkRELEASE FORK [11.2009 - 10.2011] TGN51,61..5F TYPE C:REFER 33-01,TYPE D:REFER 33-01 |
31236-71030 |
US $16.61 |
||
|
31250
|
31250
31250-0K150
Disc Assy, Clutch
[08.2007 - 08.2008] TGN51,61..5F..GCC |
31250-0K150 |
— | ||
| replacements | |||||
|
31250
|
31250
31250-0K152 Disc Assy, Clutch[08.2007 - 08.2008] TGN51,61..5F..GCC |
31250-0K152 |
US $204.03 |
||
|
31250
|
31250
31250-60500
Disc Assy, Clutch
[08.2007 - 08.2008] TGN51,61..5F..GCC |
31250-60500 |
— | ||
|
31250
|
31250
31250-0K151
Disc Assy, Clutch
[08.2010 - 07.2011] TGN51,61..5F..GCC |
31250-0K151 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K152 Disc Assy, Clutch[08.2010 - 07.2011] TGN51,61..5F..GCC |
31250-0K152 |
US $204.03 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[04.2006 - 10.2008] TGN61..LA;TGN51,61..IDSUV..5F;KUN51,TGN51..LHD..SA (J) |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[04.2006 - 10.2008] TGN61..LA;TGN51,61..IDSUV..5F;KUN51,TGN51..LHD..SA (J) |
90363-12024 |
from US $5.91 |
||
|
33311W
|
33311W
90363-T0019 Bearing (For Input Shaft)[09.2005 - 10.2008] TGN51,61..LA,SA;TGN51,61..IDSUV..5F (L) |
90363-T0019 |
US $8.70 |
||
|
90119T0102
|
90119T0102
90119-T0102
Bolt (For Transmission Control Cable Bracket)
|
90119-T0102 |
— | ||
