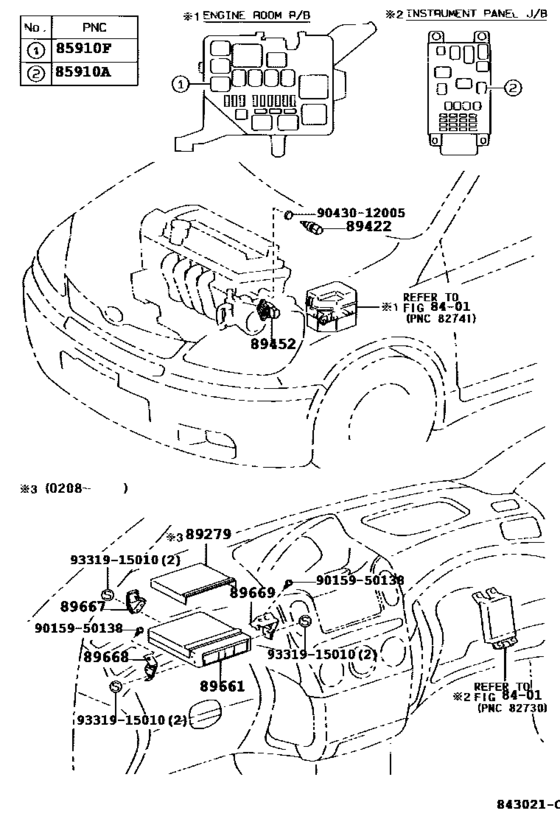

Electronic Fuel Injection System ([08.1999 - ] (9908- )) Diagram Toyota FUN CARGO
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP20
- grade
- J
- ENGINE
- 2NZFE
- From
- 08.1999
- To
- 09.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[08.1999 - 08.2002] NCP2# |
90987-02012 |
from US $26.54 |
||
|
85910A
|
85910A
90987-02027 Relay[12.2002 - 09.2005] NCP2# |
90987-02027 |
from US $47.11 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[08.1999 - 12.2001] NCP2# |
90987-02012 |
from US $26.54 |
||
|
85910F
|
85910F
90987-02022 Relay, Starter Cut[12.2001 - 08.2002] NCP2# |
90987-02022 |
from US $51.50 |
||
|
85910F
|
85910F
90987-02027 Relay[12.2002 - 09.2005] NCP2# |
90987-02027 |
from US $47.11 |
||
|
89279
|
89279
89279-52100 Cover, Engine Control Computer[08.2002 - 09.2005] NCP2# |
89279-52100 |
US $3.64 |
||
|
89422
|
89422
89422-16010 Sensor, Water Temperature (For E.f.i.)[08.1999 - 09.1999] NCP2# |
89422-16010 |
from US $40.49 |
||
|
89422
|
89422
89422-22030 Sensor, Water Temperature (For E.f.i.)[09.1999 - 08.2002] NCP2# ＮＴＣ |
89422-22030 |
from US $50.04 |
||
|
89452
|
89452
89452-20130 Sensor, Throttle Position (For E.f.i.)[08.1999 - 08.2002] NCP2# |
89452-20130 |
from US $64.68 |
||
|
89661
|
89661
89661-52360 Computer, Engine Control[08.1999 - 08.2000] NCP20 |
89661-52360 |
US $1,514.24 |
||
|
89661
|
89661
89661-52361 Computer, Engine Control[08.2000 - 08.2002] NCP20 |
89661-52361 |
US $1,514.24 |
||
|
89661
|
89661
89666-52130 Computer, Engine Control[08.2002 - 09.2005] NCP20 |
89666-52130 |
US $1,499.68 |
||
|
89667
|
89667
89667-52010 Bracket, Engine Control Computer[08.1999 - 08.2002] NCP2# |
89667-52010 |
US $5.53 |
||
|
89668
|
89668
89668-52010 Bracket, Engine Control Computer, No.2[08.1999 - 08.2002] NCP2# |
89668-52010 |
US $7.28 |
||
|
89668
|
89668
89668-52120 Bracket, Engine Control Computer, No.2[08.2002 - 09.2005] NCP2# |
89668-52120 |
US $5.24 |
||
|
89669
|
89669
89669-52010 Bracket, Engine Control Computer, No.3[08.1999 - 08.2002] NCP2# |
89669-52010 |
US $17.33 |
||
|
89669
|
89669
89669-52070 Bracket, Engine Control Computer, No.3[08.2002 - 09.2005] NCP2# |
89669-52070 |
US $9.17 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
