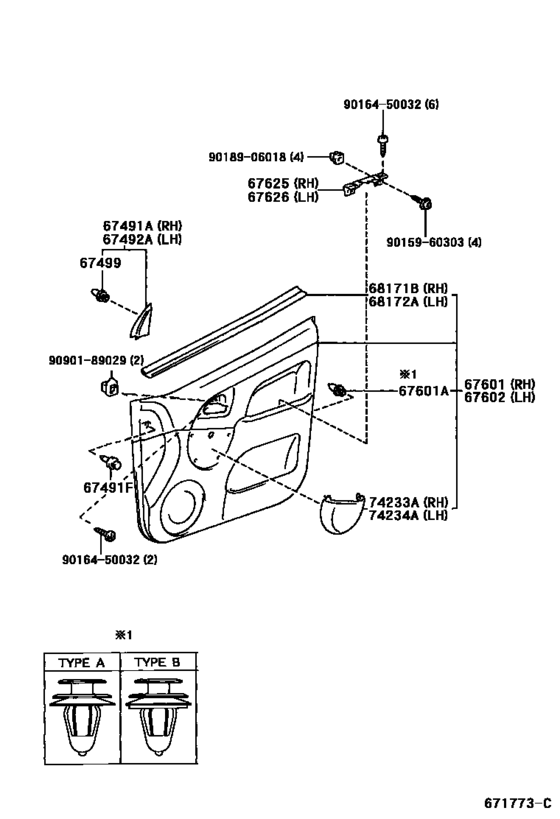

Front Door Panel & Glass ([08.1999 - ] (9908- )) Diagram Toyota FUN CARGO
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP20
- grade
- J
- ENGINE
- 2NZFE
- From
- 08.1999
- To
- 09.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-52030 Garnish, Front Door Lower Frame Bracket, Rh[08.1999 - 08.2002] NCP2# |
67491-52030 |
US $13.98 |
||
|
67491F
|
67491F
90467-07190-B0
Clip(For Door Trim)
[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
90467-07190-B0 |
— | ||
| replacement | |||||
|
67491F
|
67491F
90467-07190-B2 Clip(For Door Trim)[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
90467-07190-B2 |
US $4.12 |
||
|
67491F
|
67491F
90467-07190-B2 Clip(For Door Trim)[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
90467-07190-B2 |
US $4.12 |
||
|
67491F
|
67491F
90467-07190-H0 Clip(For Door Trim)[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
90467-07190-H0 |
US $3.06 |
||
|
67492A
|
67492A
67492-52030 Garnish, Front Door Lower Frame Bracket, Lh[08.1999 - 08.2002] NCP2# |
67492-52030 |
US $13.98 |
||
|
67499
|
67499
67771-30070 Retainer(For Deck Side Trim Panel)[08.1999 - 08.2002] NCP2# |
67771-30070 |
US $3.40 |
||
|
67601
|
67601
67610-52810-B0 Board Sub-Assy, Front Door Trim, Rh[08.2002 - 09.2005] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DARK GRAY,TRIM10 |
67610-52810-B0 |
US $273.73 |
||
|
67601
|
67601
67610-52810-B1 Board Sub-Assy, Front Door Trim, Rh[08.2002 - 09.2005] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK. GRAY,TRIM10 |
67610-52810-B1 |
US $273.73 |
||
|
67601
|
67601
67610-52810-H0 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 08.2002] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
67610-52810-H0 |
US $273.73 |
||
| replacement | |||||
|
67601
|
67601
67610-52670-H0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1999 - 08.2002] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
67610-52670-H0 |
US $273.73 |
||
|
67601
|
67601
67610-52810-K0 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 08.2002] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM9# |
67610-52810-K0 |
US $273.73 |
||
| replacement | |||||
|
67601
|
67601
67610-52670-K0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1999 - 08.2002] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM9# |
67610-52670-K0 |
US $273.73 |
||
|
67601A
|
67601A
67771-12050 Clip, Radiator Grille[11.1999 - 08.2002] NCP2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
67771-12050 |
from US $1.48 |
||
|
67601A
|
67601A
67771-28020 Retainer, Lower Back Finish Panel[11.1999 - 08.2002] NCP2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
67771-28020 |
US $3.94 |
||
|
67602
|
67602
67620-52800-B0 Board Sub-Assy, Front Door Trim, Lh[08.2002 - 09.2005] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DARK GRAY,TRIM10 |
67620-52800-B0 |
US $273.73 |
||
|
67602
|
67602
67620-52800-B1 Board Sub-Assy, Front Door Trim, Lh[08.2002 - 09.2005] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK. GRAY,TRIM10 |
67620-52800-B1 |
US $273.73 |
||
|
67602
|
67602
67620-52800-H0 Board Sub-Assy, Front Door Trim, Lh[08.1999 - 08.2002] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
67620-52800-H0 |
US $273.73 |
||
| replacement | |||||
|
67602
|
67602
67620-52670-H0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.1999 - 08.2002] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
67620-52670-H0 |
US $273.73 |
||
|
67602
|
67602
67620-52800-K0 Board Sub-Assy, Front Door Trim, Lh[08.1999 - 08.2002] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM9# |
67620-52800-K0 |
US $273.73 |
||
| replacement | |||||
|
67602
|
67602
67620-52670-K0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.1999 - 08.2002] NCP20,25..J ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM9# |
67620-52670-K0 |
US $273.73 |
||
|
67625
|
67625
67625-52020 Bracket, Front Door Trim, Rh[08.1999 - 08.2002] NCP2# |
67625-52020 |
US $9.17 |
||
|
67626
|
67626
67625-52020 Bracket, Front Door Trim, Rh[08.1999 - 08.2002] NCP2# |
67625-52020 |
US $9.17 |
||
|
68171B
|
68171B
68171-52050 Weatherstrip, Front Door Glass, Inner Rh[08.1999 - 08.2002] NCP2# |
68171-52050 |
US $27.08 |
||
|
68172A
|
68172A
68172-52030 Weatherstrip, Front Door Glass, Inner Lh[08.1999 - 08.2002] NCP2# |
68172-52030 |
US $29.35 |
||
|
74233A
|
74233A
74233-52010-B0 Panel, Front Door Armrest Base, Lower Rh[08.1999 - 08.2002] NCP2# MD.GRAY,TRIM9# |
74233-52010-B0 |
US $28.54 |
||
| replacement | |||||
|
74233A
|
74233A
74233-52010-B1 Panel, Front Door Armrest Base, Lower Rh[08.1999 - 08.2002] NCP2# MD.GRAY,TRIM9# |
74233-52010-B1 |
US $28.83 |
||
|
74233A
|
74233A
74233-52010-B1 Panel, Front Door Armrest Base, Lower Rh[08.2002 - 09.2005] NCP20,25..J,X DK.GRAY,TRIM1# |
74233-52010-B1 |
US $28.83 |
||
|
74233A
|
74233A
74233-52010-G0 Panel, Front Door Armrest Base, Lower Rh[08.1999 - 08.2002] NCP2# MIST GREEN,TRIM7# |
74233-52010-G0 |
US $28.54 |
||
|
74234A
|
74234A
74234-52010-B0 Panel, Front Door Armrest Base, Lower Lh[08.1999 - 08.2002] NCP2# MD.GRAY,TRIM9# |
74234-52010-B0 |
US $28.54 |
||
| replacement | |||||
|
74234A
|
74234A
74234-52010-B1 Panel, Front Door Armrest Base, Lower Lh[08.1999 - 08.2002] NCP2# MD.GRAY,TRIM9# |
74234-52010-B1 |
US $28.83 |
||
|
74234A
|
74234A
74234-52010-B1 Panel, Front Door Armrest Base, Lower Lh[08.2002 - 09.2005] NCP20,25..J,X DK.GRAY,TRIM1# |
74234-52010-B1 |
US $28.83 |
||
|
74234A
|
74234A
74234-52010-G0 Panel, Front Door Armrest Base, Lower Lh[08.1999 - 08.2002] NCP2# MIST GREEN,TRIM7# |
74234-52010-G0 |
US $28.54 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.61 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9090189029
|
9090189029
90901-89029 GROMMET SCREW |
90901-89029 |
US $1.05 |
||
