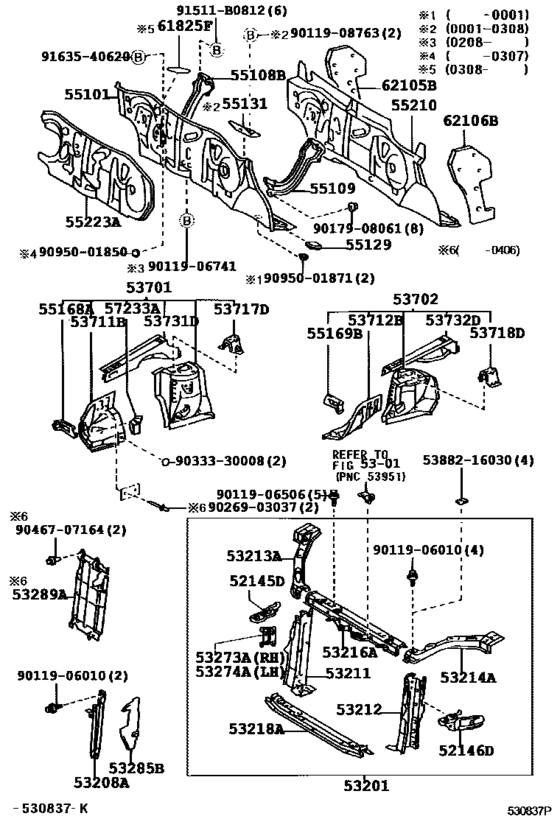

Front Fender Apron & Dash Panel ([08.1999 - ] (9908- )) Diagram Toyota FUN CARGO
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP20
- grade
- J
- ENGINE
- 2NZFE
- From
- 08.1999
- To
- 09.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52145D
|
52145D
52145-52020 Bracket, Front Bumper Side Mounting, Rh[08.1999 - 08.2002] NCP2# |
52145-52020 |
US $15.29 |
||
|
52146D
|
52146D
52146-52020 Bracket, Front Bumper Side Mounting, Lh[08.1999 - 08.2002] NCP2# |
52146-52020 |
US $15.29 |
||
|
53201
|
53201
53210-52020 Support Sub-Assy, Radiator[08.2002 - 09.2005] NCP2# |
53210-52020 |
from US $370.68 |
||
|
53201
|
53201
53210-52180 Support Sub-Assy, Radiator[08.1999 - 08.2002] NCP2# |
53210-52180 |
from US $346.13 |
||
|
53208A
|
53208A
53208-52020 Support Sub-Assy, Hood Lock[08.1999 - 11.1999] NCP2# |
53208-52020 |
US $35.38 |
||
| replacement | |||||
|
53208A
|
53208A
53208-52021 Support Sub-Assy, Hood Lock[08.1999 - 11.1999] NCP2# |
53208-52021 |
US $35.38 |
||
|
53208A
|
53208A
53208-52021 Support Sub-Assy, Hood Lock[11.1999 - 08.2002] NCP2# |
53208-52021 |
US $35.38 |
||
|
53208A
|
53208A
53208-52080 Support Sub-Assy, Hood Lock[08.2002 - 09.2005] NCP2# |
53208-52080 |
US $35.38 |
||
|
53211
|
53211
53211-52010 Support, Radiator, Rh[08.1999 - 08.2002] NCP2# |
53211-52010 |
US $51.98 |
||
|
53212
|
53212
53212-52010 Support, Radiator, Lh[08.1999 - 08.2002] NCP2# |
53212-52010 |
US $51.98 |
||
|
53213A
|
53213A
53213-52020 Support, Radiator, Upper Rh[08.1999 - 08.2002] NCP2# |
53213-52020 |
from US $37.07 |
||
|
53214A
|
53214A
53214-52020 Support, Radiator, Upper Lh[08.1999 - 08.2002] NCP2# |
53214-52020 |
US $41.06 |
||
|
53216A
|
53216A
53216-52020 Support, Radiator, Upper[08.2002 - 09.2005] NCP2# |
53216-52020 |
from US $84.22 |
||
|
53216A
|
53216A
53216-52090 Support, Radiator, Upper[08.1999 - 08.2002] NCP2# |
53216-52090 |
US $91.73 |
||
|
53218A
|
53218A
53218-52010 Support, Radiator, Lower[08.1999 - 08.2002] NCP2# |
53218-52010 |
US $132.84 |
||
|
53273A
|
53273A
53273-52010 Reinforcement, Radiator Support, Rh[08.1999 - 08.2002] NCP2# |
53273-52010 |
US $11.56 |
||
|
53274A
|
53274A
53273-52010 Reinforcement, Radiator Support, Rh[08.1999 - 08.2002] NCP2# |
53273-52010 |
US $11.56 |
||
|
53285B
|
53285B
53285-52010 Seal, Radiator Side Air, No.1[08.1999 - 12.1999] NCP2# |
53285-52010 |
US $21.55 |
||
| replacement | |||||
|
53285B
|
53285B
53285-52011 Seal, Radiator Side Air, No.1[08.1999 - 12.1999] NCP2# |
53285-52011 |
US $21.55 |
||
|
53285B
|
53285B
53285-52011 Seal, Radiator Side Air, No.1[12.1999 - 08.2002] NCP2# |
53285-52011 |
US $21.55 |
||
|
53285B
|
53285B
53285-52120 Seal, Radiator Side Air, No.1[08.2002 - 09.2005] NCP2# |
53285-52120 |
US $22.57 |
||
|
53289A
|
53289A
53289-52010 Cover, Radiator Support Opening[08.1999 - 08.2002] NCP2# |
53289-52010 |
US $54.17 |
||
|
53701
|
53701
53701-52020 Apron Sub-Assy, Front Fender, Rh[08.1999 - 08.2002] NCP2# |
53701-52020 |
US $203.84 |
||
|
53702
|
53702
53702-52020 Apron Sub-Assy, Front Fender, Lh[08.1999 - 08.2002] NCP2# |
53702-52020 |
US $203.84 |
||
|
53711B
|
53711B
53711-52010 Apron, Front Fender, Front Rh[08.1999 - 08.2002] NCP2# |
53711-52010 |
US $40.37 |
||
|
53712B
|
53712B
53712-52010 Apron, Front Fender, Front Lh[08.1999 - 08.2002] NCP2# |
53712-52010 |
US $38.16 |
||
|
53717D
|
53717D
53717-52010 Gusset, Fender Apron, Rh[08.1999 - 08.2002] NCP2# |
53717-52010 |
US $11.21 |
||
|
53718D
|
53718D
53718-52010 Gusset, Fender Apron, Lh[08.1999 - 08.2002] NCP2# |
53718-52010 |
US $11.21 |
||
|
53731D
|
53731D
53731-52010 Member, Front Apron To Cowl Side, Upper Rh[08.1999 - 08.2002] NCP2# |
53731-52010 |
from US $32.61 |
||
|
53732D
|
53732D
53732-52010 Member, Front Apron To Cowl Side, Upper Lh[08.1999 - 08.2002] NCP2# |
53732-52010 |
US $32.61 |
||
|
55101
|
55101
55101-52060 Panel Sub-Assy, Dash[08.1999 - 01.2000] NCP2# |
55101-52060 |
US $339.25 |
||
| replacements | |||||
|
55101
|
55101
55101-52061 Panel Sub-Assy, Dash[08.1999 - 01.2000] NCP2# |
55101-52061 |
US $339.25 |
||
|
55101
|
55101
90333-30002 Cover, Front Floor Hole[08.1999 - 01.2000] NCP2# |
90333-30002 |
from US $1.07 |
||
|
55101
|
55101
55101-52061 Panel Sub-Assy, Dash[01.2000 - 08.2002] NCP2# |
55101-52061 |
US $339.25 |
||
|
55101
|
55101
55101-52250 Panel Sub-Assy, Dash[08.2002 - 08.2003] NCP20,21 |
55101-52250 |
US $339.25 |
||
|
55101
|
55101
55101-52441 Panel Sub-Assy, Dash[08.2003 - 09.2005] NCP20,21 |
55101-52441 |
US $340.70 |
||
|
55108B
|
55108B
55108-52030 Brace Sub-Assy, Dash To Frame, Rh[08.1999 - 08.2002] NCP2# |
55108-52030 |
US $53.29 |
||
|
55109
|
55109
55109-52030 Brace Sub-Assy, Dash To Frame, Lh[08.1999 - 08.2002] NCP2# |
55109-52030 |
US $53.87 |
||
|
55129
|
55129
55129-52010 Cover, Dash Panel Hole[08.1999 - 08.2002] NCP2# |
55129-52010 |
US $8.74 |
||
|
55131
|
55131
55132-52010 Reinforcement, Dash Panel[01.2000 - 08.2001] NCP2# |
55132-52010 |
US $15.72 |
||
|
55131
|
55131
55132-52020 Reinforcement, Dash Panel[08.2001 - 08.2002] NCP2# |
55132-52020 |
US $19.51 |
||
|
55168A
|
55168A
55168-52020 Bracket, Front Fender Mounting, Rh[08.1999 - 08.2002] NCP2# |
55168-52020 |
US $18.20 |
||
|
55169B
|
55169B
55169-52020 Bracket, Front Fender Mounting, Lh[08.1999 - 08.2002] NCP2# |
55169-52020 |
US $18.20 |
||
|
55210
|
55210
55210-52030 Insulator Assy, Dash Panel[08.1999 - 12.1999] NCP2# |
55210-52030 |
US $340.70 |
||
| replacement | |||||
|
55210
|
55210
55210-52033 Insulator Assy, Dash Panel[08.1999 - 12.1999] NCP2# |
55210-52033 |
US $343.62 |
||
|
55210
|
55210
55210-52031 Insulator Assy, Dash Panel[12.1999 - 08.2002] NCP2# |
55210-52031 |
US $340.70 |
||
| replacement | |||||
|
55210
|
55210
55210-52033 Insulator Assy, Dash Panel[12.1999 - 08.2002] NCP2# |
55210-52033 |
US $343.62 |
||
|
55210
|
55210
55210-52032 Insulator Assy, Dash Panel[08.2003 - 09.2005] NCP2# |
55210-52032 |
US $343.62 |
||
| replacement | |||||
|
55210
|
55210
55210-52033 Insulator Assy, Dash Panel[08.2003 - 09.2005] NCP2# |
55210-52033 |
US $343.62 |
||
|
55223A
|
55223A
55223-52010 Insulator, Dash Panel, Outer[08.1999 - 08.2002] NCP2# |
55223-52010 |
US $63.48 |
||
|
57233A
|
57233A
57233-52010 Retainer, Engine Front Support, Rh[08.1999 - 08.2002] NCP2# |
57233-52010 |
US $18.20 |
||
| replacement | |||||
|
57233A
|
57233A
57233-52011 Retainer, Engine Front Support, Rh[08.1999 - 08.2002] NCP2# |
57233-52011 |
US $12.38 |
||
|
57233A
|
57233A
57233-52011 Retainer, Engine Front Support, Rh[12.2004 - 09.2005] NCP2# |
57233-52011 |
US $12.38 |
||
|
61825F
|
61825F
61826-47010 Plate, Noise Control[08.2003 - 09.2005] NCP2# |
61826-47010 |
US $4.22 |
||
|
62105B
|
62105B
62105-52010 Insulator Sub-Assy, Cowl Side, Rh[08.1999 - 08.2002] NCP2# |
62105-52010 |
US $35.24 |
||
| replacement | |||||
|
62105B
|
62105B
62105-52011 Insulator Sub-Assy, Cowl Side, Rh[08.1999 - 08.2002] NCP2# |
62105-52011 |
US $35.24 |
||
|
62105B
|
62105B
62105-52011 Insulator Sub-Assy, Cowl Side, Rh[07.2003 - 09.2005] NCP2# |
62105-52011 |
US $35.24 |
||
|
62106B
|
62106B
62106-52010 Insulator Sub-Assy, Cowl Side, Lh[08.1999 - 08.2002] NCP2# |
62106-52010 |
US $36.69 |
||
|
62106B
|
62106B
62106-52011 Insulator Sub-Assy, Cowl Side, Lh[07.2003 - 09.2005] NCP2# |
62106-52011 |
US $36.69 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
5388216030
|
5388216030
53882-16030 Pad, Rear Bumper, Center |
53882-16030 |
from US $0.80 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.97 |
||
|
9011906506
|
9011906506
90119-06506 New Genuine Part |
90119-06506 |
US $2.15 |
||
|
9011906741
|
9011906741
90119-06741 New Genuine Part |
90119-06741 |
US $1.43 |
||
|
9011908763
|
9011908763
90119-08763 New Genuine Part |
90119-08763 |
US $3.40 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9026903037
|
9026903037
90269-03037 RIVET |
90269-03037 |
from US $1.19 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.15 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.21 |
||
|
9095001850
|
9095001850
90950-01850 PLUG HOLE |
90950-01850 |
US $0.72 |
||
|
9095001871
|
9095001871
90950-01871 PLUG |
90950-01871 |
from US $1.79 |
||
|
9163540620
|
9163540620
91635-40620 New Genuine Part |
91635-40620 |
US $1.08 |
||
