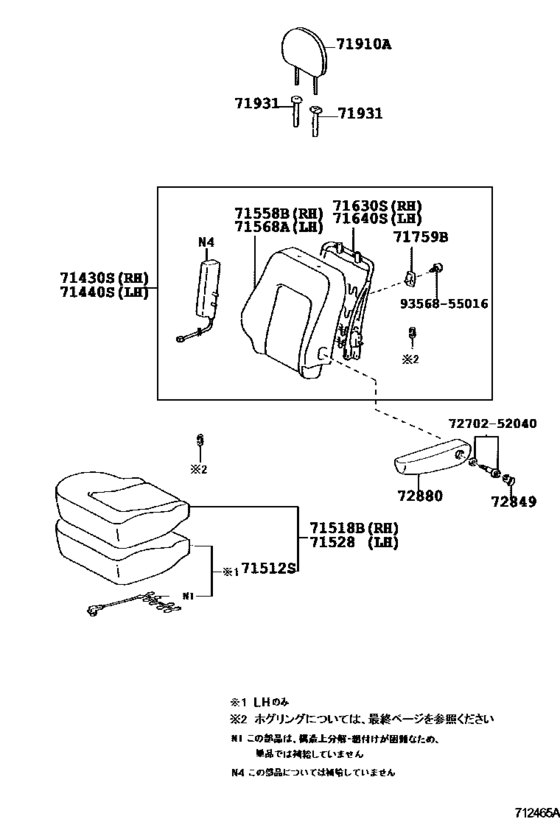

Front Seat & Seat Track ([08.2002 - ] ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) (0208- )) Diagram Toyota FUN CARGO
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP20
- grade
- J
- ENGINE
- 2NZFE
- From
- 08.1999
- To
- 09.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71430S
|
71430S
71430-52210-B0 Back Assy, Front Seat, Rh(For Separate Type)[08.1999 - 08.2002] NCP20,25..J ***,ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
71430-52210-B0 |
US $844.48 |
||
|
71430S
|
71430S
71430-52210-H0 Back Assy, Front Seat, Rh(For Separate Type)[08.1999 - 08.2002] NCP20,25..J ***,ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71430-52210-H0 |
US $844.48 |
||
|
71430S
|
71430S
71430-52230-B0 Back Assy, Front Seat, Rh(For Separate Type)[08.1999 - 08.2002] NCP20,25..J ***,ｼ-ﾄ = TYPE B-*104,GRAY,TRIM9# |
71430-52230-B0 |
US $891.07 |
||
|
71430S
|
71430S
71430-52230-H0 Back Assy, Front Seat, Rh(For Separate Type)[08.1999 - 08.2002] NCP20,25..J ***,ｼ-ﾄ = TYPE B-*104,TORQUOISE,TRIM7# |
71430-52230-H0 |
US $891.07 |
||
|
71430S
|
71430S
71430-52890-B0 Back Assy, Front Seat, Rh(For Separate Type)[08.2002 - 09.2005] NCP20,25..J,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DARK GRAY,TRIM1# |
71430-52890-B0 |
US $1,142.96 |
||
|
71440S
|
71440S
71440-52190-B0 Back Assy, Front Seat, Lh(For Separate Type)[08.1999 - 08.2002] NCP20,25..J ***,ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
71440-52190-B0 |
US $844.48 |
||
|
71440S
|
71440S
71440-52190-H0 Back Assy, Front Seat, Lh(For Separate Type)[08.1999 - 08.2002] NCP20,25..J ***,ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71440-52190-H0 |
US $844.48 |
||
|
71440S
|
71440S
71440-52210-B0 Back Assy, Front Seat, Lh(For Separate Type)[08.1999 - 08.2002] NCP20,25..J ***,ｼ-ﾄ = TYPE B-*104,GRAY,TRIM9# |
71440-52210-B0 |
US $891.07 |
||
|
71440S
|
71440S
71440-52210-H0 Back Assy, Front Seat, Lh(For Separate Type)[08.1999 - 08.2002] NCP20,25..J ***,ｼ-ﾄ = TYPE B-*104,TORQUOISE,TRIM7# |
71440-52210-H0 |
US $891.07 |
||
|
71440S
|
71440S
71440-5C240-B0 Back Assy, Front Seat, Lh(For Separate Type)[08.2002 - 09.2005] NCP20,25..J,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DARK GRAY,TRIM1# |
71440-5C240-B0 |
US $1,142.96 |
||
|
71512S
|
71512S
71502-52010 Pad, Front Seat Cushion, Lh (For Separate Type)[08.1999 - 08.2002] NCP2# |
71502-52010 |
US $157.25 |
||
|
71518B
|
71518B
71518-52350-B0 Pad, Front Seat Cushion W/cover, Rh[08.1999 - 08.2002] NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
71518-52350-B0 |
US $388.75 |
||
|
71518B
|
71518B
71518-52350-H0 Pad, Front Seat Cushion W/cover, Rh[08.1999 - 08.2002] NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71518-52350-H0 |
US $388.75 |
||
|
71518B
|
71518B
71518-52370-B0
Pad, Front Seat Cushion W/cover, Rh
[08.1999 - 08.2002] NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,GRAY,TRIM9# |
71518-52370-B0 |
— | ||
|
71518B
|
71518B
71518-52370-H0 Pad, Front Seat Cushion W/cover, Rh[08.1999 - 08.2002] NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,TORQUOISE,TRIM7# |
71518-52370-H0 |
US $398.94 |
||
|
71518B
|
71518B
71518-5C330-B0 Pad, Front Seat Cushion W/cover, Rh[08.2002 - 09.2005] NCP20,25..J DARK GRAY,TRIM1# |
71518-5C330-B0 |
US $398.94 |
||
|
71518B
|
71518B
71518-5C340-B0 Pad, Front Seat Cushion W/cover, Rh[08.2002 - 09.2005] NCP20,25..J,X ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DARK GRAY,TRIM1# |
71518-5C340-B0 |
US $398.94 |
||
|
71518B
|
71518B
71518-5C830-B0 Pad, Front Seat Cushion W/cover, Rh[08.2002 - 09.2005] NCP20,25..J,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DARK GRAY,TRIM1# |
71518-5C830-B0 |
US $398.94 |
||
|
71528
|
71528
71528-52370-B0 Pad, Front Seat Cushion W/cover, Lh[08.1999 - 08.2002] NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
71528-52370-B0 |
US $473.20 |
||
|
71528
|
71528
71528-52370-H0 Pad, Front Seat Cushion W/cover, Lh[08.1999 - 08.2002] NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71528-52370-H0 |
US $473.20 |
||
|
71528
|
71528
71528-52390-B0 Pad, Front Seat Cushion W/cover, Lh[08.1999 - 08.2002] NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,GRAY,TRIM9# |
71528-52390-B0 |
US $483.39 |
||
|
71528
|
71528
71528-52390-H0 Pad, Front Seat Cushion W/cover, Lh[08.1999 - 08.2002] NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,TORQUOISE,TRIM7# |
71528-52390-H0 |
US $483.39 |
||
|
71528
|
71528
71528-5C620-B0 Pad, Front Seat Cushion W/cover, Lh[08.2002 - 09.2005] NCP20,25..J,X DARK GRAY,TRIM1# |
71528-5C620-B0 |
US $483.39 |
||
|
71528
|
71528
71528-5C630-B0 Pad, Front Seat Cushion W/cover, Lh[08.2002 - 09.2005] NCP20,25..J,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DARK GRAY,TRIM1# |
71528-5C630-B0 |
US $483.39 |
||
|
71558B
|
71558B
71558-52270-B0 Pad, Front Seat Back W/cover, Rh[08.1999 - 08.2002] NCP20,25..J ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
71558-52270-B0 |
US $513.97 |
||
|
71558B
|
71558B
71558-52270-H0 Pad, Front Seat Back W/cover, Rh[08.1999 - 08.2002] NCP20,25..J ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71558-52270-H0 |
US $513.97 |
||
|
71558B
|
71558B
71558-52300-B0 Pad, Front Seat Back W/cover, Rh[08.1999 - 08.2002] NCP20,25..J ｼ-ﾄ = TYPE B-*104,GRAY,TRIM9# |
71558-52300-B0 |
US $537.26 |
||
|
71558B
|
71558B
71558-52300-H0 Pad, Front Seat Back W/cover, Rh[08.1999 - 08.2002] NCP20,25..J ｼ-ﾄ = TYPE B-*104,TORQUOISE,TRIM7# |
71558-52300-H0 |
US $537.26 |
||
|
71558B
|
71558B
71558-5C120-B0 Pad, Front Seat Back W/cover, Rh[08.2002 - 09.2005] NCP20,25..J,X DARK GRAY,TRIM1# |
71558-5C120-B0 |
US $537.26 |
||
|
71558B
|
71558B
71558-5C140-B0 Pad, Front Seat Back W/cover, Rh[08.2002 - 09.2005] NCP20,25..J,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DARK GRAY,TRIM1# |
71558-5C140-B0 |
US $537.26 |
||
|
71558B
|
71558B
71558-5C260-B0 Pad, Front Seat Back W/cover, Rh[08.2002 - 09.2005] NCP20,25..J ﾅｼ(ｱ-ﾑﾚｽﾄ),DARK GRAY,TRIM1# |
71558-5C260-B0 |
US $537.26 |
||
|
71568A
|
71568A
71558-52360-B0 Pad, Front Seat Back W/cover, Lh[08.1999 - 08.2002] NCP20,25..J ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
71558-52360-B0 |
US $513.97 |
||
|
71568A
|
71568A
71558-52360-H0 Pad, Front Seat Back W/cover, Lh[08.1999 - 08.2002] NCP20,25..J ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71558-52360-H0 |
US $513.97 |
||
|
71568A
|
71568A
71558-52380-B0 Pad, Front Seat Back W/cover, Lh[08.1999 - 08.2002] NCP20,25..J ｼ-ﾄ = TYPE B-*104,GRAY,TRIM9# |
71558-52380-B0 |
US $537.26 |
||
|
71568A
|
71568A
71558-52380-H0 Pad, Front Seat Back W/cover, Lh[08.1999 - 08.2002] NCP20,25..J ｼ-ﾄ = TYPE B-*104,TORQUOISE,TRIM7# |
71558-52380-H0 |
US $537.26 |
||
|
71568A
|
71568A
71568-5C020-B0 Pad, Front Seat Back W/cover, Lh[08.2002 - 09.2005] NCP20,25..J,X DARK GRAY,TRIM1# |
71568-5C020-B0 |
US $537.26 |
||
|
71568A
|
71568A
71568-5C040-B0 Pad, Front Seat Back W/cover, Lh[08.2002 - 09.2005] NCP20,25..J,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DARK GRAY,TRIM1# |
71568-5C040-B0 |
US $537.26 |
||
|
71630S
|
71630S
71630-52040 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.1999 - 08.2000] NCP2# |
71630-52040 |
US $250.43 |
||
| replacement | |||||
|
71630S
|
71630S
71630-52160 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.1999 - 08.2000] NCP2# |
71630-52160 |
US $250.43 |
||
|
71630S
|
71630S
71630-52140 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.2002 - 09.2005] NCP2# |
71630-52140 |
US $266.45 |
||
|
71630S
|
71630S
71630-52160 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.2002 - 09.2005] NCP20,25..J ﾅｼ(ｱ-ﾑﾚｽﾄ) |
71630-52160 |
US $250.43 |
||
|
71640S
|
71640S
71630-52050 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.1999 - 08.2002] NCP2# |
71630-52050 |
US $250.43 |
||
| replacement | |||||
|
71640S
|
71640S
71630-52150 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.1999 - 08.2002] NCP2# |
71630-52150 |
US $250.43 |
||
|
71640S
|
71640S
71630-52150 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.2002 - 09.2005] NCP2# |
71630-52150 |
US $250.43 |
||
|
71759B
|
71759B
71759-13020-B0 Hook, Front Seat Back[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71759-13020-B0 |
US $12.67 |
||
|
71910A
|
71910A
71910-52010-B0 Headrest Assy, Front Seat[08.1999 - 08.2000] NCP20,25..J,X ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ,SHADOW GRAY,TRIM9# |
71910-52010-B0 |
US $189.28 |
||
|
71910A
|
71910A
71910-52010-H0 Headrest Assy, Front Seat[08.1999 - 08.2000] NCP20,25..J,X ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ,FRENCH TURQUOISE,TRIM7# |
71910-52010-H0 |
US $189.28 |
||
|
71910A
|
71910A
71910-52310-B0 Headrest Assy, Front Seat[08.2002 - 09.2005] NCP20,25..J,X DARK GRAY,TRIM1# |
71910-52310-B0 |
US $371.28 |
||
|
71931
|
71931
71930-47010-B2 Support, Front Seat Headrest[08.2002 - 09.2005] NCP20,25..J ロック付,DK.GRAY,TRIM1#; NCP2#..G,X ロック付,ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
71930-47010-B2 |
US $13.98 |
||
|
71931
|
71931
71930-52010-B0 Support, Front Seat Headrest[08.1999 - 08.2000] NCP2# ロック付,ｳｴﾙｷﾔﾌﾞ,SHADOW GRAY,TRIM7#,9# |
71930-52010-B0 |
US $16.60 |
||
|
71931
|
71931
71931-47010-B2 Support Assy, Front Seat Headrest[08.2002 - 09.2005] NCP20,25..J ロック無,DK.GRAY,TRIM1#; NCP2#..G,X ロック無,ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
71931-47010-B2 |
US $6.99 |
||
|
71931
|
71931
71931-52010-B0 Support, Front Seat Headrest[08.1999 - 08.2000] NCP2# ロック無,ｳｴﾙｷﾔﾌﾞ,SHADOW GRAY,TRIM7#,9# |
71931-52010-B0 |
US $9.90 |
||
|
72849
|
72849
72849-13010-B0 Cap, Seat Armrest, No.2[05.2003 - 09.2005] NCP2# DK.GRAY,TRIM1# |
72849-13010-B0 |
US $5.24 |
||
|
72849
|
72849
72849-63010-B2 Cap, Seat Armrest, No.2[08.2002 - 05.2003] NCP2# DK.GRAY,TRIM1# |
72849-63010-B2 |
US $5.24 |
||
|
72880
|
72880
72880-52040-B0 Armrest Assy, Seat, C Rh[08.2002 - 10.2002] NCP20,25..J,X DARK GRAY,TRIM1# |
72880-52040-B0 |
US $174.72 |
||
| replacements | |||||
|
72880
|
72880
72849-13010-B0 Cap, Seat Armrest, No.2[08.2002 - 10.2002] NCP20,25..J,X DARK GRAY,TRIM1# |
72849-13010-B0 |
US $5.24 |
||
|
72880
|
72880
72880-52041-B1 Armrest Assy, Seat, C Rh[08.2002 - 10.2002] NCP20,25..J,X DARK GRAY,TRIM1# |
72880-52041-B1 |
US $174.72 |
||
|
72880
|
72880
72880-52040-B1 Armrest Assy, Seat, C Rh[10.2002 - 05.2003] NCP20,25..J,X DARK GRAY,TRIM1# |
72880-52040-B1 |
US $174.72 |
||
| replacements | |||||
|
72880
|
72880
72849-13010-B0 Cap, Seat Armrest, No.2[10.2002 - 05.2003] NCP20,25..J,X DARK GRAY,TRIM1# |
72849-13010-B0 |
US $5.24 |
||
|
72880
|
72880
72880-52041-B1 Armrest Assy, Seat, C Rh[10.2002 - 05.2003] NCP20,25..J,X DARK GRAY,TRIM1# |
72880-52041-B1 |
US $174.72 |
||
|
72880
|
72880
72880-52041-B1 Armrest Assy, Seat, C Rh[05.2003 - 09.2005] NCP20,25..J,X DK. GRAY,TRIM1# |
72880-52041-B1 |
US $174.72 |
||
|
7270252040
|
7270252040
72702-52040 Bracket Sub-assy, Rear Seat Back Striker |
72702-52040 |
US $11.07 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
