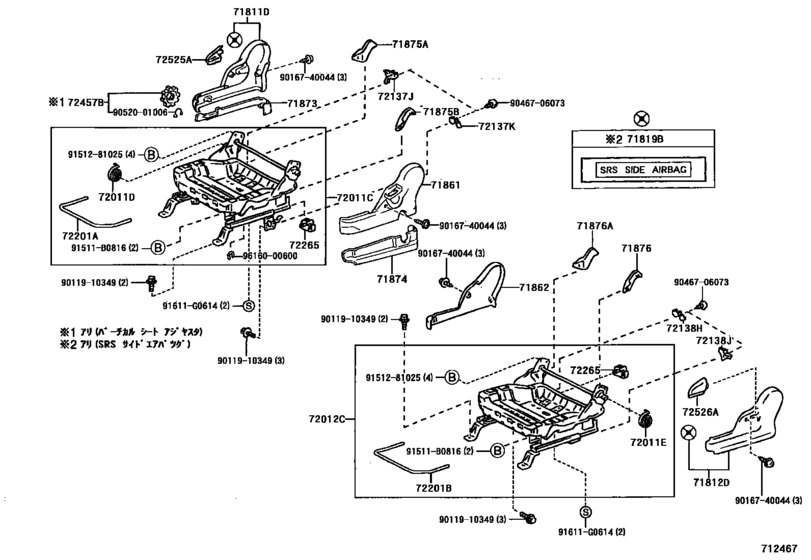

Front Seat & Seat Track ([08.2002 - ] (0208- )) Diagram Toyota FUN CARGO
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP20
- grade
- J
- ENGINE
- 2NZFE
- From
- 08.1999
- To
- 09.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-52050-B0 Shield, Front Seat Cushion, Rh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
71811-52050-B0 |
US $52.42 |
||
|
71811D
|
71811D
71811-52050-B1 Shield, Front Seat Cushion, Rh[08.2002 - 09.2005] NCP20,25..J DK.GRAY,TRIM1# |
71811-52050-B1 |
US $52.42 |
||
|
71811D
|
71811D
71811-52050-H0 Shield, Front Seat Cushion, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
71811-52050-H0 |
US $52.42 |
||
|
71811D
|
71811D
71811-52160-B0 Shield, Front Seat Cushion, Rh[08.2002 - 09.2005] NCP2# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
71811-52160-B0 |
US $55.33 |
||
|
71811D
|
71811D
71811-52170-B0 Shield, Front Seat Cushion, Rh[08.2002 - 09.2005] NCP2# ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
71811-52170-B0 |
US $55.76 |
||
|
71812D
|
71812D
71812-52050-B0 Shield, Front Seat Cushion, Lh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
71812-52050-B0 |
US $52.42 |
||
|
71812D
|
71812D
71812-52050-B1 Shield, Front Seat Cushion, Lh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71812-52050-B1 |
US $52.42 |
||
|
71812D
|
71812D
71812-52050-H0 Shield, Front Seat Cushion, Lh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
71812-52050-H0 |
US $52.42 |
||
|
71812D
|
71812D
71812-52100-B1 Shield, Front Seat Cushion, Lh[08.2002 - 09.2005] NCP2# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DK.GRAY,TRIM1# |
71812-52100-B1 |
US $52.42 |
||
|
71819B
|
71819B
71819-12020-P3 Label, Side Air Bag Name[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71819-12020-P3 |
US $2.62 |
||
|
71861
|
71861
71861-52040-B0 Shield, Front Seat Cushion, Inner Rh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
71861-52040-B0 |
US $49.94 |
||
|
71861
|
71861
71861-52040-B1 Shield, Front Seat Cushion, Inner Rh[08.2002 - 09.2005] NCP20,25..J DK.GRAY,TRIM1# |
71861-52040-B1 |
US $49.80 |
||
|
71861
|
71861
71861-52040-H0 Shield, Front Seat Cushion, Inner Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
71861-52040-H0 |
US $49.94 |
||
|
71861
|
71861
71861-52120-B0 Shield, Front Seat Cushion, Inner Rh[08.2002 - 09.2005] NCP2# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
71861-52120-B0 |
US $48.34 |
||
|
71862
|
71862
71862-52040-B0 Shield, Front Seat Cushion, Inner Lh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
71862-52040-B0 |
US $49.94 |
||
|
71862
|
71862
71862-52040-B1 Shield, Front Seat Cushion, Inner Lh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71862-52040-B1 |
US $49.80 |
||
|
71862
|
71862
71862-52040-H0 Shield, Front Seat Cushion, Inner Lh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
71862-52040-H0 |
US $49.94 |
||
|
71873
|
71873
71873-52050-B0 Shield, Front Seat Cushion, Lower Rh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71873-52050-B0 |
US $21.55 |
||
|
71874
|
71874
71874-52060-B0 Shield, Front Seat Cushion, Lower Lh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71874-52060-B0 |
US $24.02 |
||
|
71875A
|
71875A
71875-52010-B0 Cover, Reclining Adjuster Inside, Rh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
71875-52010-B0 |
US $11.50 |
||
|
71875A
|
71875A
71875-52010-B2 Cover, Reclining Adjuster Inside, Rh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71875-52010-B2 |
US $11.65 |
||
|
71875A
|
71875A
71875-52010-H0 Cover, Reclining Adjuster Inside, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
71875-52010-H0 |
US $11.50 |
||
|
71875B
|
71875B
71876-52010-B0 Cover, Reclining Adjuster Inside, Rh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
71876-52010-B0 |
US $11.50 |
||
|
71875B
|
71875B
71876-52010-B2 Cover, Reclining Adjuster Inside, Rh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71876-52010-B2 |
US $11.65 |
||
|
71875B
|
71875B
71876-52010-H0 Cover, Reclining Adjuster Inside, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
71876-52010-H0 |
US $11.50 |
||
|
71876
|
71876
71875-52010-B0 Cover, Reclining Adjuster Inside, Rh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
71875-52010-B0 |
US $11.50 |
||
|
71876
|
71876
71875-52010-B2 Cover, Reclining Adjuster Inside, Rh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71875-52010-B2 |
US $11.65 |
||
|
71876
|
71876
71875-52010-H0 Cover, Reclining Adjuster Inside, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
71875-52010-H0 |
US $11.50 |
||
|
71876A
|
71876A
71876-52010-B0 Cover, Reclining Adjuster Inside, Rh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
71876-52010-B0 |
US $11.50 |
||
|
71876A
|
71876A
71876-52010-B2 Cover, Reclining Adjuster Inside, Rh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
71876-52010-B2 |
US $11.65 |
||
|
71876A
|
71876A
71876-52010-H0 Cover, Reclining Adjuster Inside, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
71876-52010-H0 |
US $11.50 |
||
|
72011C
|
72011C
72010-52170 Adjuster Sub-Assy, Front Seat, Rh[08.1999 - 08.2000] NCP20,21 |
72010-52170 |
US $679.95 |
||
| replacement | |||||
|
72011C
|
72011C
72010-52171 Adjuster Sub-Assy, Front Seat, Rh[08.1999 - 08.2000] NCP20,21 |
72010-52171 |
US $679.95 |
||
|
72011C
|
72011C
72010-52171 Adjuster Sub-Assy, Front Seat, Rh[08.2001 - 08.2002] NCP20..J |
72010-52171 |
US $679.95 |
||
|
72011C
|
72011C
72010-52241 Adjuster Sub-Assy, Front Seat, Rh[08.2002 - 09.2005] NCP20..J |
72010-52241 |
US $681.41 |
||
|
72011C
|
72011C
72010-52450 Adjuster Sub-Assy, Front Seat, Rh[08.2002 - 10.2002] NCP20,21 ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
72010-52450 |
US $816.82 |
||
| replacement | |||||
|
72011C
|
72011C
72010-52451 Adjuster Sub-Assy, Front Seat, Rh[08.2002 - 10.2002] NCP20,21 ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
72010-52451 |
US $818.27 |
||
|
72011C
|
72011C
72010-52451 Adjuster Sub-Assy, Front Seat, Rh[10.2002 - 09.2005] NCP20,21 ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
72010-52451 |
US $818.27 |
||
|
72011D
|
72011D
72637-52020 Spring, Tension, Rh(For Front Seat Adjuster Outer)[08.1999 - 08.2000] NCP2# |
72637-52020 |
US $13.69 |
||
|
72011D
|
72011D
72637-52030 Spring, Tension, Rh(For Front Seat Adjuster Outer)[10.2002 - 09.2005] NCP20,25..J ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
72637-52030 |
US $13.69 |
||
|
72011E
|
72011E
72637-52020 Spring, Tension, Rh(For Front Seat Adjuster Outer)[08.1999 - 08.2002] NCP2# |
72637-52020 |
US $13.69 |
||
|
72012C
|
72012C
72020-52160 Adjuster Sub-Assy, Front Seat, Lh[08.1999 - 08.2001] NCP2# |
72020-52160 |
US $679.95 |
||
| replacement | |||||
|
72012C
|
72012C
72020-52161 Adjuster Sub-Assy, Front Seat, Lh[08.1999 - 08.2001] NCP2# |
72020-52161 |
US $679.95 |
||
|
72012C
|
72012C
72020-52161 Adjuster Sub-Assy, Front Seat, Lh[08.2001 - 08.2002] NCP2# |
72020-52161 |
US $679.95 |
||
|
72012C
|
72012C
72020-52170 Adjuster Sub-Assy, Front Seat, Lh[08.1999 - 08.2000] NCP2# ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ) |
72020-52170 |
US $679.95 |
||
| replacement | |||||
|
72012C
|
72012C
72020-52171 Adjuster Sub-Assy, Front Seat, LhFRONT SEAT, LH [08.1999 - 08.2000] NCP2# ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ) |
72020-52171 |
US $681.41 |
||
|
72012C
|
72012C
72020-52201 Adjuster Sub-Assy, Front Seat, Lh[08.2002 - 09.2005] NCP20,21 |
72020-52201 |
US $681.41 |
||
|
72137J
|
72137J
72137-52040 Cover, Front Seat Track, Rh Rear Outer[08.1999 - 08.2002] NCP2# |
72137-52040 |
US $14.12 |
||
|
72137K
|
72137K
72157-52050 Cover, Front Seat Track, Rh Rear Inner[08.1999 - 10.2001] NCP2# |
72157-52050 |
US $19.07 |
||
| replacement | |||||
|
72137K
|
72137K
72157-52060 Cover, Front Seat Track, Rh Rear Inner[08.1999 - 10.2001] NCP2# |
72157-52060 |
US $18.93 |
||
|
72137K
|
72137K
72157-52060 Cover, Front Seat Track, Rh Rear Inner[10.2001 - 08.2002] NCP2# |
72157-52060 |
US $18.93 |
||
|
72138H
|
72138H
72158-52030 Cover, Front Seat Track, Lh Rear Inner[08.1999 - 10.2001] NCP2# |
72158-52030 |
US $19.07 |
||
| replacement | |||||
|
72138H
|
72138H
72158-52040 Cover, Front Seat Track, Lh Rear Inner[08.1999 - 10.2001] NCP2# |
72158-52040 |
US $18.93 |
||
|
72138H
|
72138H
72158-52040 Cover, Front Seat Track, Lh Rear Inner[10.2001 - 08.2002] NCP2# |
72158-52040 |
US $18.93 |
||
|
72138J
|
72138J
72138-52030 Cover, Front Seat Track, Lh Rear Outer[08.1999 - 08.2002] NCP2# |
72138-52030 |
US $14.12 |
||
|
72201A
|
72201A
72201-52010 Handle Sub-Assy, Seat Track Rh[08.2002 - 09.2005] NCP2# |
72201-52010 |
US $24.17 |
||
|
72201B
|
72201B
72201-52010 Handle Sub-Assy, Seat Track Rh[08.2002 - 09.2005] NCP20,21 |
72201-52010 |
US $24.17 |
||
|
72265
|
72265
72265-44070 Protector, Seat Track Lower Rail, No.2[10.2001 - 08.2002] NCP2# ｳｴﾙｷﾔﾌﾞ |
72265-44070 |
US $2.04 |
||
|
72265
|
72265
72265-63020 Protector, Seat Track Lower Rail, No.2[08.2001 - 10.2001] NCP2# |
72265-63020 |
US $7.28 |
||
|
72457B
|
72457B
72457-18010-S1 Knob, Vertical Seat Adjuster[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
72457-18010-S1 |
US $10.63 |
||
|
72525A
|
72525A
72525-16010-B0
Handle, Reclining Adjuster Release, Rh
[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
72525-16010-B0 |
— | ||
|
72525A
|
72525A
72525-16010-H0 Handle, Reclining Adjuster Release, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
72525-16010-H0 |
US $16.89 |
||
| replacement | |||||
|
72525A
|
72525A
72525-16010-S1 Handle, Reclining Adjuster Release, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
72525-16010-S1 |
US $17.47 |
||
|
72525A
|
72525A
72525-16010-S1 Handle, Reclining Adjuster Release, Rh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
72525-16010-S1 |
US $17.47 |
||
|
72526A
|
72526A
72526-16010-B0
Handle, Reclining Adjuster Release, Lh
[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
72526-16010-B0 |
— | ||
|
72526A
|
72526A
72526-16010-H0 Handle, Reclining Adjuster Release, Lh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
72526-16010-H0 |
US $16.89 |
||
| replacement | |||||
|
72526A
|
72526A
72526-16010-S1 Handle, Reclining Adjuster Release, Lh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
72526-16010-S1 |
US $13.63 |
||
|
72526A
|
72526A
72526-16010-S1 Handle, Reclining Adjuster Release, Lh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
72526-16010-S1 |
US $13.63 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
91611G0614
|
91611G0614
91611-G0614
New Genuine Part
|
91611-G0614 |
— | ||
|
9011910349
|
9011910349
90119-10349
BOLT
|
90119-10349 |
— | ||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.72 |
||
|
9046706073
|
9046706073
90467-06073 Clip (For Rear Seat Back) |
90467-06073 |
US $2.15 |
||
|
9052001006
|
9052001006
90520-01006 Ring, Shaft Snap(For Lumber Support Lever) |
90520-01006 |
US $1.43 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.13 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
