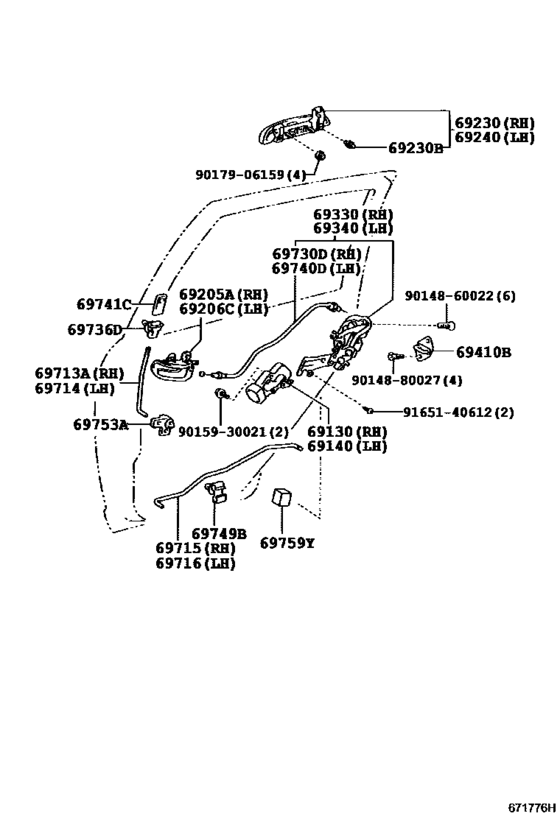

Rear Door Lock & Handle ([08.1999 - ] (9908- )) Diagram Toyota FUN CARGO
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP20
- grade
- J
- ENGINE
- 2NZFE
- From
- 08.1999
- To
- 09.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69130
|
69130
69130-52040 Actuator Assy, Rear Door Lock, Rh[08.1999 - 08.2002] NCP2# |
69130-52040 |
US $147.60 |
||
|
69140
|
69140
69140-52040 Actuator Assy, Rear Door Lock, Lh[08.1999 - 08.2002] NCP2# |
69140-52040 |
US $147.60 |
||
|
69205A
|
69205A
69205-52010-B0 Handle Sub-Assy, Front Door Inside, Rh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
69205-52010-B0 |
US $27.08 |
||
| replacement | |||||
|
69205A
|
69205A
69205-52010-B3 Handle Sub-Assy, Front Door Inside, Rh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
69205-52010-B3 |
US $26.94 |
||
|
69205A
|
69205A
69205-52010-B3 Handle Sub-Assy, Front Door Inside, Rh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
69205-52010-B3 |
US $26.94 |
||
|
69205A
|
69205A
69205-52010-H0 Handle Sub-Assy, Front Door Inside, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
69205-52010-H0 |
US $27.08 |
||
| replacement | |||||
|
69205A
|
69205A
69205-52010-B3 Handle Sub-Assy, Front Door Inside, Rh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
69205-52010-B3 |
US $26.94 |
||
|
69206C
|
69206C
69206-52010-B0 Handle Sub-Assy, Front Door Inside, Lh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
69206-52010-B0 |
US $27.08 |
||
| replacement | |||||
|
69206C
|
69206C
69206-52010-B3 Handle Sub-Assy, Front Door Inside, Lh[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
69206-52010-B3 |
US $26.94 |
||
|
69206C
|
69206C
69206-52010-B3 Handle Sub-Assy, Front Door Inside, Lh[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
69206-52010-B3 |
US $26.94 |
||
|
69206C
|
69206C
69206-52010-H0 Handle Sub-Assy, Front Door Inside, Lh[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
69206-52010-H0 |
US $27.08 |
||
|
69230
|
69230
69230-52030 Handle Assy, Rear Door Outside, Rh[08.1999 - 08.2002] NCP20,25..J ﾄｿｳ ﾅｼ |
69230-52030 |
US $55.62 |
||
|
69230B
|
69230B
90541-04028 Cushion(For Front Door Outside Handle)[08.1999 - 08.2002] NCP2# |
90541-04028 |
US $1.60 |
||
|
69240
|
69240
69240-52030 Handle Assy, Rear Door Outside, Lh[08.1999 - 08.2002] NCP20,25..J |
69240-52030 |
US $55.62 |
||
|
69330
|
69330
69330-52060 Lock Assy, Rear Door, Rh[08.1999 - 08.2002] NCP2# |
69330-52060 |
US $91.73 |
||
| replacement | |||||
|
69330
|
69330
69330-52170 Lock Assy, Rear Door, Rh[08.1999 - 08.2002] NCP2# |
69330-52170 |
US $78.62 |
||
|
69330
|
69330
69330-52170 Lock Assy, Rear Door, Rh[08.2002 - 09.2005] NCP2# |
69330-52170 |
US $78.62 |
||
|
69340
|
69340
69340-52060 Lock Assy, Rear Door, Lh[08.1999 - 08.2002] NCP2# |
69340-52060 |
US $91.73 |
||
| replacement | |||||
|
69340
|
69340
69340-52180 Lock Assy, Rear Door, Lh[08.1999 - 08.2002] NCP2# |
69340-52180 |
US $78.62 |
||
|
69340
|
69340
69340-52180 Lock Assy, Rear Door, Lh[08.2002 - 09.2005] NCP2# |
69340-52180 |
US $78.62 |
||
|
69410B
|
69410B
69410-47010 Plate Assy, Front Door Lock Striker[08.1999 - 08.2002] NCP2# |
69410-47010 |
US $17.81 |
||
|
69713A
|
69713A
69713-52010 Link, Rear Door Lock Remote Control, Rh[08.1999 - 08.2002] NCP2# |
69713-52010 |
US $9.32 |
||
|
69714
|
69714
69713-52010 Link, Rear Door Lock Remote Control, Rh[08.1999 - 08.2002] NCP2# |
69713-52010 |
US $9.32 |
||
|
69715
|
69715
69715-52020 Link, Rear Door Locking Control, No.2 Rh[08.1999 - 08.2002] NCP2# |
69715-52020 |
US $9.32 |
||
|
69716
|
69716
69716-52020 Link, Rear Door Locking Control, No.2 Lh[08.1999 - 08.2002] NCP2# |
69716-52020 |
US $9.32 |
||
|
69730D
|
69730D
69710-52030 Cable Assy, Front Door Lock Remote Control, Rh[08.1999 - 08.2002] NCP2# |
69710-52030 |
US $9.61 |
||
|
69736D
|
69736D
69736-12130 Guide, Front Door Locking Link[08.1999 - 08.2002] NCP2# |
69736-12130 |
US $8.67 |
||
|
69740D
|
69740D
69710-52030 Cable Assy, Front Door Lock Remote Control, Rh[08.1999 - 08.2002] NCP2# |
69710-52030 |
US $9.61 |
||
|
69741C
|
69741C
69741-87003-B8 Knob, Front Door Lock Control (Dark Gray)[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
69741-87003-B8 |
US $5.07 |
||
|
69741C
|
69741C
69741-87003-H0 Knob, Front Door Lock Control[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
69741-87003-H0 |
US $4.66 |
||
| replacement | |||||
|
69741C
|
69741C
69741-87003-B8 Knob, Front Door Lock Control (Dark Gray)[08.1999 - 08.2002] NCP2# FRENCH TURQUOISE,TRIM7# |
69741-87003-B8 |
US $5.07 |
||
|
69741C
|
69741C
69741-87003-P0 Knob, Front Door Lock Control[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
69741-87003-P0 |
US $4.37 |
||
| replacement | |||||
|
69741C
|
69741C
69741-87003-B8 Knob, Front Door Lock Control (Dark Gray)[08.1999 - 08.2002] NCP2# SHADOW GRAY,TRIM9# |
69741-87003-B8 |
US $5.07 |
||
|
69749B
|
69749B
69749-52010 Clamp, Front Door Lock Link[08.1999 - 08.2002] NCP2# |
69749-52010 |
US $0.55 |
||
|
69753A
|
69753A
69753-10010 Bellcrank, Door Lock Control[08.1999 - 08.2002] NCP2# |
69753-10010 |
US $8.26 |
||
|
69759Y
|
69759Y
69759-52010 Silencer, Roof, No.1[08.1999 - 08.2002] NCP2# |
69759-52010 |
US $3.93 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.49 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $8.06 |
||
|
9015930021
|
9015930021
90159-30021 New Genuine Part |
90159-30021 |
US $1.60 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
