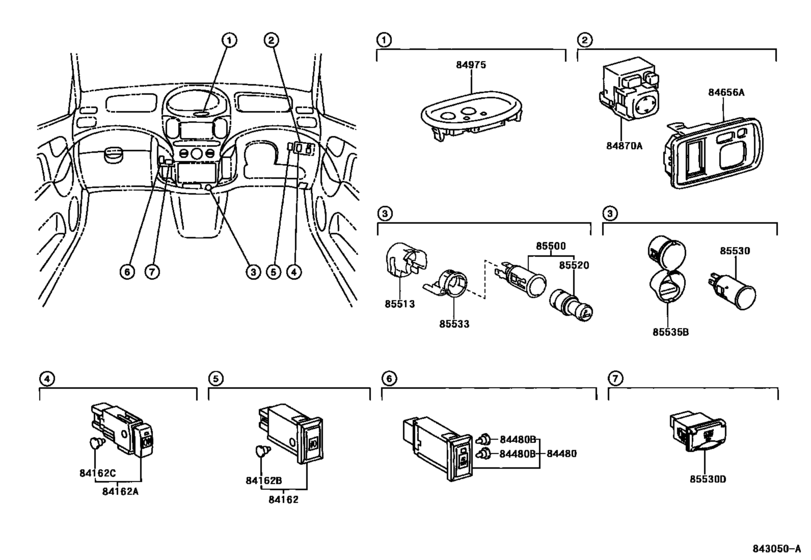

Switch & Relay & Computer ([08.1999 - 08.2002] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (9908-0208)) Diagram Toyota FUN CARGO
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP20
- grade
- J
- ENGINE
- 2NZFE
- From
- 08.1999
- To
- 09.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84162A
|
84162A
84165-12050 Switch, Rear Fog Lamp[08.2002 - 08.2003] NCP2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
84165-12050 |
US $49.65 |
||
|
84162A
|
84162A
84165-52010 Switch, Rear Fog Lamp[08.1999 - 08.2002] NCP2# |
84165-52010 |
US $57.31 |
||
|
84162A
|
84162A
84165-52020 Switch, Rear Fog Lamp[08.2003 - 09.2005] NCP2# ＴＹＰＥ Ｂ：イラスト参照 |
84165-52020 |
US $49.36 |
||
|
84162C
|
84162C
90010-09005 Bulb (For Rear Fog Lamp Switch)[08.2003 - 09.2005] NCP20,25..J １４Ｖ ４０ＭＡ，グリーン キャップ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-09005 |
US $3.64 |
||
|
84162C
|
84162C
90010-09009 Bulb (For Rear Fog Lamp Switch)[08.1999 - 08.2002] NCP2# １４Ｖ ４０ＭＡ |
90010-09009 |
US $4.37 |
||
| replacement | |||||
|
84162C
|
84162C
90010-09005 Bulb (For Rear Fog Lamp Switch)[08.1999 - 08.2002] NCP2# １４Ｖ ４０ＭＡ |
90010-09005 |
US $3.64 |
||
|
84162C
|
84162C
90010-09012 Bulb (For Rear Fog Lamp Switch)[08.2002 - 09.2005] NCP2# １４Ｖ ４０ＭＡ，グリーン キャップ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-09012 |
US $5.82 |
||
|
84480
|
84480
84480-52010 Switch Assy, Main[08.1999 - 08.2002] NCP2# |
84480-52010 |
US $64.65 |
||
|
84480B
|
84480B
84999-10310 Bulb, Air Conditioner Control[08.1999 - 08.2002] NCP2# １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.85 |
||
|
84480B
|
84480B
90010-01050 Bulb, Main Switch Assy[08.1999 - 08.2002] NCP2# １４Ｖ ０．９１Ｗ，イエローキャップ |
90010-01050 |
US $3.64 |
||
|
84656A
|
84656A
84656-52010-B0 Bezel, Switch[08.1999 - 08.2000] NCP20,25..J,X MD.GRAY,TRIM9#; NCP21,25..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-),MD.GRAY,TRIM9# |
84656-52010-B0 |
US $17.91 |
||
| replacement | |||||
|
84656A
|
84656A
84656-52010-B5 Bezel, Switch[08.1999 - 08.2000] NCP20,25..J,X MD.GRAY,TRIM9#; NCP21,25..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-),MD.GRAY,TRIM9# |
84656-52010-B5 |
US $17.91 |
||
|
84656A
|
84656A
84656-52010-B5 Bezel, Switch[08.2002 - 09.2005] NCP20,25..J TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1# |
84656-52010-B5 |
US $17.91 |
||
|
84656A
|
84656A
84656-52010-G0 Bezel, Switch[08.1999 - 08.2000] NCP20,25..J,X MIST GREEN,TRIM7#; NCP21,25..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-),MIST GREEN,TRIM7# |
84656-52010-G0 |
US $17.91 |
||
| replacement | |||||
|
84656A
|
84656A
84656-52010-B5 Bezel, Switch[08.1999 - 08.2000] NCP20,25..J,X MIST GREEN,TRIM7#; NCP21,25..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-),MIST GREEN,TRIM7# |
84656-52010-B5 |
US $17.91 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[08.1999 - 08.2000] NCP20,25..J,X; NCP21,25..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-) |
84872-52030 |
US $53.29 |
||
|
84975
|
84975
84975-52050 Switch, Trip[08.1999 - 08.2002] NCP2# |
84975-52050 |
US $61.30 |
||
| replacement | |||||
|
84975
|
84975
84975-52140-B1 Switch, Trip[08.1999 - 08.2002] NCP2# |
84975-52140-B1 |
US $61.44 |
||
|
84975
|
84975
84975-52140-B1 Switch, Trip[08.2002 - 09.2005] NCP2# DK.GRAY,TRIM1# |
84975-52140-B1 |
US $61.44 |
||
|
85500
|
85500
85500-28050 Lighter Assy, Cigarette[08.1999 - 08.2002] NCP2# |
85500-28050 |
from US $27.65 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[08.1999 - 08.2002] NCP2# |
85513-12020 |
from US $4.97 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[12.2002 - 09.2005] NCP2# |
85513-28010 |
from US $2.54 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[08.1999 - 08.2002] NCP2# |
85520-28010 |
from US $16.77 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[08.1999 - 08.2002] NCP2# |
85530-33020 |
from US $15.29 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[08.1999 - 08.2002] NCP2# |
85530-06010 |
from US $26.06 |
||
|
85530D
|
85530D
85530-26020 Socket Assy, Power Outlet, No.1[08.1999 - 08.2002] NCP2# |
85530-26020 |
US $37.56 |
||
|
85533
|
85533
85533-30060 Lens, Cigarette Lighter Indicator[08.1999 - 08.2002] NCP2# |
85533-30060 |
US $31.75 |
||
|
85535B
|
85535B
85535-52010 Cover, Power Outlet Socket, No.1[08.1999 - 08.2002] NCP2# |
85535-52010 |
US $11.36 |
||
| replacement | |||||
|
85535B
|
85535B
85535-47020 Cover, Power Outlet Socket, No.1[08.1999 - 08.2002] NCP2# |
85535-47020 |
US $15.23 |
||
|
85535B
|
85535B
85535-52050 Cover, Power Outlet Socket, No.1[12.2002 - 09.2005] NCP2# |
85535-52050 |
US $11.65 |
||
| replacement | |||||
|
85535B
|
85535B
85535-52051 Cover, Power Outlet Socket, No.1[12.2002 - 09.2005] NCP2# |
85535-52051 |
US $15.23 |
||
