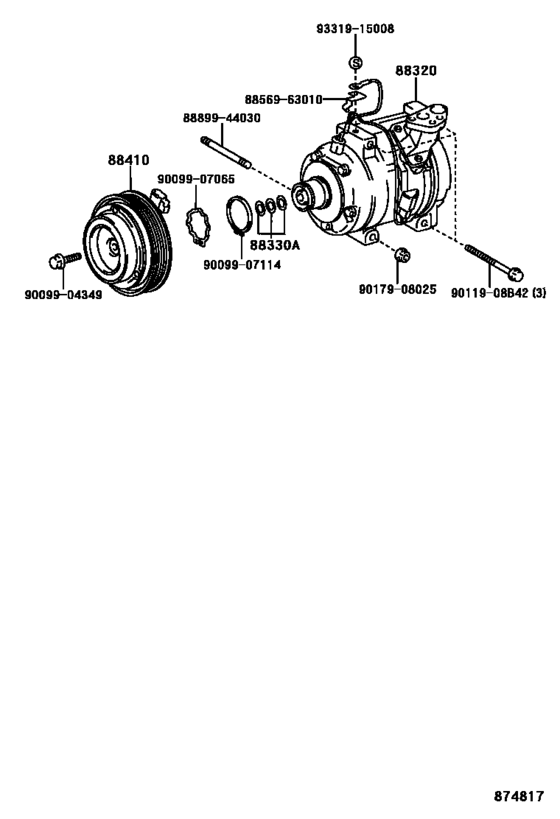

Heating & Air Conditioning - Compressor ([04.2001 - ] (0104- )ACM1#) Diagram Toyota GAIA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ACM10
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-44130
Compressor Assy, Cooler
[04.2001 -] ACM1# |
88320-44130 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[04.2001 -] ACM1#,CXM10,SXM15 |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-28200 Clutch Assy, Magnet[04.2001 -] ACM1# |
88410-28200 |
US $383.60 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8856963010
|
8856963010
88569-63010
Clamp (for Cooler Relay)
|
88569-63010 |
— | ||
|
8889944030
|
8889944030
88899-44030
Cover, Evaporator
|
88899-44030 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
