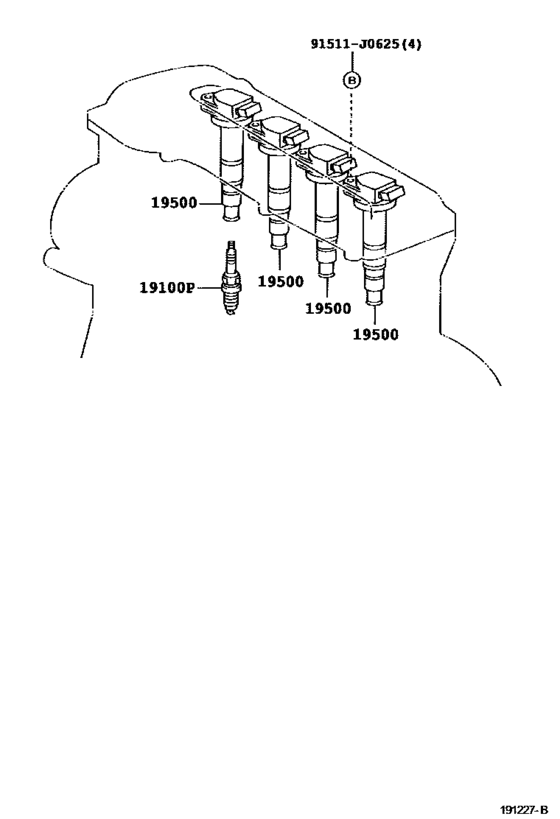

Ignition Coil & Spark Plug ([04.2001 - ] (0104- )1AZFSE) Diagram Toyota GAIA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ACM10
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100P
|
19100P
90919-01221 Spark Plug (Denso SK20BGR11)[04.2001 - 09.2004] 1AZFSE..ACM1# ＳＫ２０ＢＧＲ１１ |
90919-01221 |
from US $25.04 |
||
|
19500
|
19500
90919-02247
Coil Assy, Ignition
[04.2001 - 08.2002] 1AZFSE..ACM10 |
90919-02247 |
— | ||
| replacement | |||||
|
19500
|
19500
90919-02260 Coil Assy, Ignition[04.2001 - 08.2002] 1AZFSE..ACM10 |
90919-02260 |
from US $96.90 |
||
|
19500
|
19500
90919-02248
Coil Assy, Ignition
[09.2002 - 09.2004] 1AZFSE..ACM1# |
90919-02248 |
— | ||
| replacement | |||||
|
19500
|
19500
90919-02260 Coil Assy, Ignition[09.2002 - 09.2004] 1AZFSE..ACM1# |
90919-02260 |
from US $96.90 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.92 |
||
