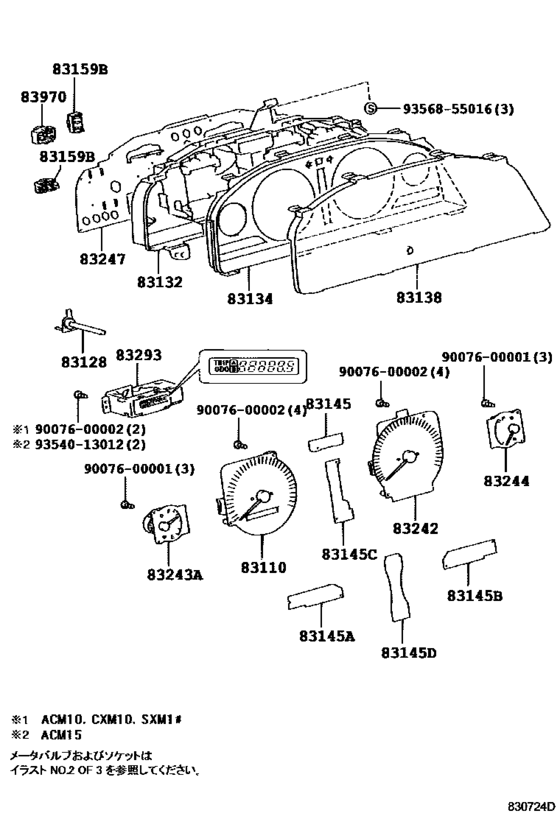

Meter ([04.2001 - ] ｱﾅﾛｸﾞﾒｰﾀ (0104- )) Diagram Toyota GAIA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ACM10
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83220-44150 Speedometer Assy[04.2001 -] ACM1#,CXM10,SXM15 |
83220-44150 |
US $374.19 |
||
|
83110
|
83110
83220-44180 Speedometer Assy[04.2001 -] ACM1#,SXM15 ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83220-44180 |
US $374.19 |
||
|
83110
|
83110
83220-44200 Speedometer Assy[04.2001 -] ACM10 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83220-44200 |
US $851.76 |
||
|
83110
|
83110
83220-44260 Speedometer Assy[08.2002 - 05.2004] ACM10 S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T) |
83220-44260 |
US $851.76 |
||
|
83128
|
83128
83224-44010 Knob, Trip Counter[04.2001 -] ACM1#,CXM10,SXM15 |
83224-44010 |
US $5.82 |
||
|
83132
|
83132
83841-44160 Case, Combination Meter[04.2001 -] ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83841-44160 |
US $28.25 |
||
|
83132
|
83132
83841-44620 Case, Combination Meter[04.2001 -] ACM1#,CXM10,SXM15 |
83841-44620 |
US $28.25 |
||
|
83134
|
83134
83821-44620 Cover, Combination Meter, No.1[04.2001 -] ACM1#,CXM10,SXM15 |
83821-44620 |
US $47.47 |
||
|
83134
|
83134
83821-44650 Cover, Combination Meter, No.1[04.2001 -] ACM1#,SXM15 ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83821-44650 |
US $47.47 |
||
|
83134
|
83134
83821-44670 Cover, Combination Meter, No.1[04.2001 -] ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83821-44670 |
US $47.47 |
||
|
83138
|
83138
83852-20130 Glass, Speedometer[04.2001 -] ACM1#,CXM10,SXM15 |
83852-20130 |
US $28.25 |
||
|
83138
|
83138
83852-20590 Glass, Speedometer[04.2001 -] ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83852-20590 |
US $28.25 |
||
|
83145
|
83145
83831-20130 Lens, Meter, No.1[04.2001 -] ACM1#,CXM10,SXM15 |
83831-20130 |
US $7.43 |
||
|
83145A
|
83145A
83831-44620 Lens, Meter, No.2[04.2001 -] ACM1# |
83831-44620 |
US $7.57 |
||
|
83145B
|
83145B
83831-20150 Lens, Meter, No.3[04.2001 -] ACM10 |
83831-20150 |
US $7.57 |
||
| replacement | |||||
|
83145B
|
83145B
83831-20140 Lens, Meter, No.3[04.2001 -] ACM10 |
83831-20140 |
US $7.43 |
||
|
83145C
|
83145C
83831-44010 Lens, Meter, No.4[04.2001 -] ACM1#,CXM10,SXM15 |
83831-44010 |
US $7.57 |
||
|
83145D
|
83145D
83887-44010
Lens, Meter, No.5
[04.2001 -] ACM1#,CXM10,SXM15 |
83887-44010 |
— | ||
|
83159B
|
83159B
83159-22170 Switch, Meter, No.1[04.2001 -] ACM1#,CXM10,SXM15 |
83159-22170 |
US $54.69 |
||
|
83242
|
83242
83881-44620 Tachometer Assy, Engine[04.2001 -] ACM1# |
83881-44620 |
US $529.98 |
||
|
83242
|
83242
83881-44650 Tachometer Assy, Engine[04.2001 -] ACM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83881-44650 |
US $529.98 |
||
|
83243A
|
83243A
83882-44590 Gauge Sub-Assy, Fuel Receiver[04.2001 -] ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83882-44590 |
US $77.17 |
||
|
83243A
|
83243A
83882-44620 Gauge Sub-Assy, Fuel Receiver[04.2001 -] ACM1#,CXM10,SXM15 |
83882-44620 |
US $70.76 |
||
|
83243A
|
83243A
83882-44650 Gauge Sub-Assy, Fuel Receiver[04.2001 -] ACM1#,SXM15 ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83882-44650 |
US $70.76 |
||
|
83243A
|
83243A
83882-44810 Gauge Sub-Assy, Fuel Receiver[08.2002 - 05.2004] ACM1# S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T) |
83882-44810 |
US $70.76 |
||
|
83244
|
83244
83883-44590 Gauge Sub-Assy, Water Temperature Receiver[04.2001 -] ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83883-44590 |
US $70.76 |
||
|
83244
|
83244
83883-44620 Gauge Sub-Assy, Water Temperature Receiver[04.2001 -] ACM1#,CXM10,SXM15 |
83883-44620 |
US $70.76 |
||
|
83244
|
83244
83883-44650 Gauge Sub-Assy, Water Temperature Receiver[04.2001 -] ACM1#,SXM15 ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83883-44650 |
US $70.76 |
||
|
83244
|
83244
83883-44810 Gauge Sub-Assy, Water Temperature Receiver[08.2002 - 05.2004] ACM1# S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T) |
83883-44810 |
US $70.76 |
||
|
83247
|
83247
83861-44160 Plate, Meter Circuit[04.2001 -] ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83861-44160 |
US $55.62 |
||
|
83247
|
83247
83861-44620 Plate, Meter Circuit[04.2001 -] ACM10 |
83861-44620 |
US $55.62 |
||
|
83293
|
83293
83293-44010 Computer, Total Counter Module[04.2001 -] ACM1#,SXM15 |
83293-44010 |
US $347.98 |
||
|
83970
|
83970
83970-12020 Buzzer Assy, Reverse Warning[04.2001 -] ACM1#,CXM10,SXM15 |
83970-12020 |
US $38.61 |
||
|
9007600001
|
9007600001
90076-00001 SCREW WITH WASHER |
90076-00001 |
US $3.06 |
||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $4.08 |
||
|
9354013012
|
9354013012
93540-13012 SCREWTAPPING |
93540-13012 |
US $1.12 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
