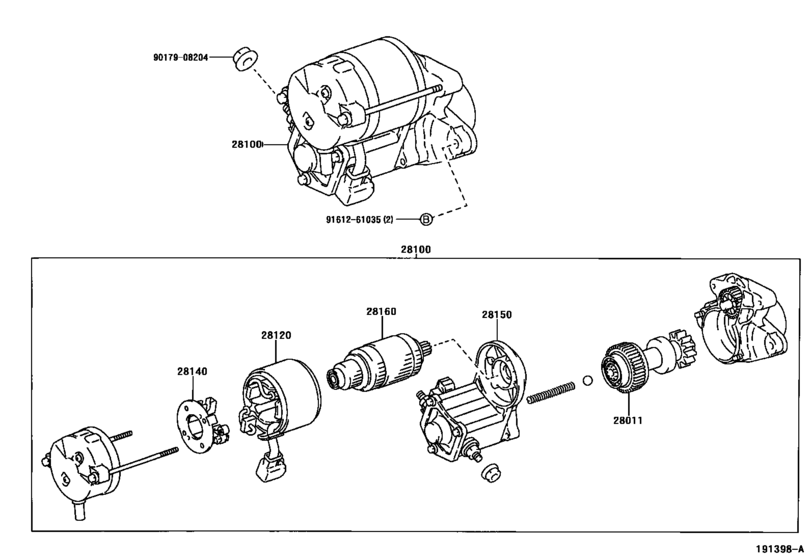

Starter ([04.2001 - ] 12V 1.2KW (0104- )1AZFSE,3SFE) Diagram Toyota GAIA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ACM10
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[04.2001 -] 1AZFSE,3SFE..ACM1#,SXM15 |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-74130 Starter Assy[04.2001 -] 1AZFSE,3SFE..ACM1#,SXM15 １２Ｖ １．２ＫＷ |
28100-74130 |
US $1,352.62 |
||
| replacement | |||||
|
28100
|
28100
28100-74140 Starter Assy[04.2001 -] 1AZFSE,3SFE..ACM1#,SXM15 １２Ｖ １．２ＫＷ |
28100-74140 |
US $1,415.23 |
||
|
28120
|
28120
28120-16180
Yoke Assy, Starter
[04.2001 -] 1AZFSE,3SFE..ACM1#,SXM15 |
28120-16180 |
— | ||
|
28140
|
28140
28140-74120 Holder Assy, Starter Brush[04.2001 -] 1AZFSE,3SFE..ACM1#,SXM15 |
28140-74120 |
US $18.04 |
||
|
28150
|
28150
28150-74140 Switch Assy, Magnet Starter[04.2001 -] 1AZFSE,3SFE..ACM1#,SXM15 |
28150-74140 |
US $208.21 |
||
|
28160
|
28160
28160-76060 Armature Assy, Starter[04.2001 -] 1AZFSE,3SFE..ACM1#,SXM15 |
28160-76060 |
US $318.86 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
