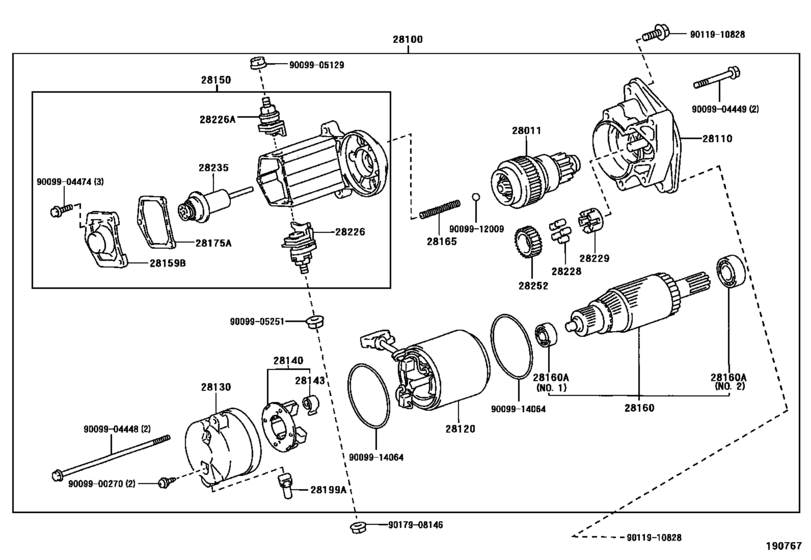

Starter ([05.1998 - 04.2001] 12V 1.4KW (9805-0104)3CTE) Diagram Toyota GAIA
- Year
- 1998 - 2004
- Sales region
- Japan
- Frame
- CXM10
- ENGINE
- 3CTE
- From
- 05.1998
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64010 Clutch Sub-Assy, Starter[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28011-64010 |
US $310.13 |
||
| replacement | |||||
|
28011
|
28011
28011-67030 Clutch Sub-Assy, Starter[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28011-67030 |
from US $208.88 |
||
|
28011
|
28011
28011-64130 Clutch Sub-Assy, Starter[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28011-64130 |
US $189.28 |
||
|
28100
|
28100
28100-64300 Starter Assy[05.1998 - 04.2001] 3CTE..CXM10 １２Ｖ １．４ＫＷ |
28100-64300 |
US $1,415.23 |
||
|
28100
|
28100
28100-64310 Starter Assy[05.1998 - 04.2001] 3CTE..CXM10 １２Ｖ ２．２ＫＷ |
28100-64310 |
US $1,994.72 |
||
|
28110
|
28110
28110-64170 Housing Assy, Starter Drive[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28110-64170 |
US $94.64 |
||
|
28110
|
28110
28115-64040
Housing Assy, Starter Drive
[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28115-64040 |
— | ||
|
28120
|
28120
28120-55050
Yoke Assy, Starter
[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28120-55050 |
— | ||
|
28120
|
28120
28120-64040
Yoke Assy, Starter
[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28120-64040 |
— | ||
|
28130
|
28130
28130-64130
Frame Assy, Starter Commutator End
[05.1998 - 04.2001] 3CTE..CXM10 |
28130-64130 |
— | ||
|
28140
|
28140
28140-64040 Holder Assy, Starter Brush[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28140-64040 |
from US $37.19 |
||
|
28140
|
28140
28140-64130
Holder Assy, Starter Brush
[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28140-64130 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[05.1998 - 04.2001] 3SFE..SXM1#; 3CTE..CXM10 12V 1.4KW |
90099-17112 |
— | ||
|
28143
|
28143
90099-17115
Spring, Starter Brush
[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
90099-17115 |
— | ||
|
28150
|
28150
28150-64310 Switch Assy, Magnet Starter[04.1999 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28150-64310 |
US $311.58 |
||
|
28150
|
28150
28150-64341 Switch Assy, Magnet Starter[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28150-64341 |
US $154.34 |
||
|
28150
|
28150
28150-64390 Switch Assy, Magnet Starter[05.1998 - 04.1999] 3CTE..CXM10 12V 2.2KW |
28150-64390 |
US $311.58 |
||
| replacement | |||||
|
28150
|
28150
28150-64310 Switch Assy, Magnet Starter[05.1998 - 04.1999] 3CTE..CXM10 12V 2.2KW |
28150-64310 |
US $311.58 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[05.1998 - 04.2001] 3SFE..SXM1#; 3CTE..CXM10 12V 2.2KW |
28159-10040 |
— | ||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28159-55050 |
— | ||
|
28160
|
28160
28160-64041 Armature Assy, Starter[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28160-64041 |
US $242.86 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28160-74070 |
— | ||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW,ＮＯ．１ |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW,ＮＯ．２ |
90099-10143 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW,ＮＯ．１ |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW,ＮＯ．２ |
90099-10197 |
US $7.34 |
||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28165-26040 |
— | ||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28165-76070 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[05.1998 - 04.2001] 3SFE..SXM1#; 3CTE..CXM10 12V 2.2KW |
28175-10040 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28175-55050 |
US $1.92 |
||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28199-46080 |
from US $2.97 |
||
|
28199A
|
28199A
28199-74110 Cover, Starter End Frame[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28199-74110 |
US $2.97 |
||
|
28226
|
28226
28226-54330
Starter Kit, Battery Terminal
[04.1999 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28226-54330 |
— | ||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28226-64370 |
from US $7.12 |
||
|
28226
|
28226
28226-76100 Starter Kit, Battery Terminal[05.1998 - 04.1999] 3CTE..CXM10 12V 2.2KW |
28226-76100 |
from US $13.63 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[05.1998 - 04.2001] 3SFE..SXM1#; 3CTE..CXM10 12V 2.2KW |
28226-72010 |
from US $10.49 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28226-74070 |
US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[05.1998 - 04.2001] 3CTE,3SFE..CXM10,SXM1# |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[05.1998 - 04.2001] 3SFE..SXM1#; 3CTE..CXM10 12V 2.2KW |
28229-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28229-74070 |
US $1.50 |
||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28235-35080 |
from US $25.68 |
||
|
28235
|
28235
28235-55050 Plunger, Magnet Switch[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28235-55050 |
from US $20.27 |
||
|
28252
|
28252
28254-64040
Pinion, Starter Drive
[05.1998 - 04.2001] 3CTE..CXM10 12V 2.2KW |
28254-64040 |
— | ||
|
28252
|
28252
28254-64130
Pinion, Starter Drive
[05.1998 - 04.2001] 3CTE..CXM10 12V 1.4KW |
28254-64130 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9011910828
|
9011910828
90119-10828 New Genuine Part |
90119-10828 |
US $3.06 |
||
| replacement | |||||
|
9011910828
|
9011910828
90119-10938 New Genuine Part |
90119-10938 |
US $1.40 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
