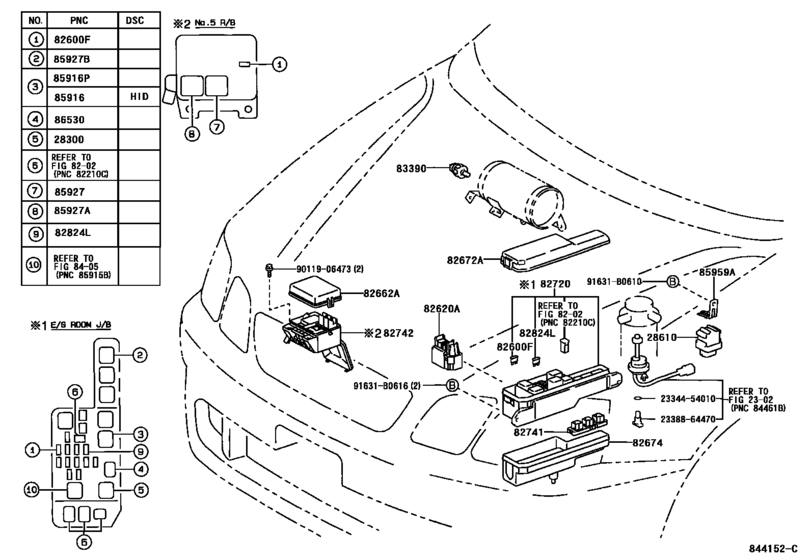

Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )CXM10) Diagram Toyota GAIA
- Year
- 1998 - 2004
- Sales region
- Japan
- Frame
- CXM10
- ENGINE
- 3CTE
- From
- 05.1998
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[05.1998 - 04.2001] 3CTE,3SFE..CXM10,SXM1# |
28300-10020 |
from US $55.30 |
||
|
28610
|
28610
28610-67010 Relay Assy, Glow Plug[05.1998 - 04.2001] 3CTE..CXM10 |
28610-67010 |
from US $42.71 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[05.1998 - 04.2001] CXM10,SXM1# ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[05.1998 - 04.2001] CXM10,SXM1# ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[05.1998 - 04.2001] CXM10,SXM10 １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[05.1998 - 04.2001] CXM10,SXM1# １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[05.1998 - 04.2001] CXM10,SXM1# ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[05.1998 - 04.2001] CXM10,SXM1# ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[04.2001 -] ACM1#,CXM10,SXM15 ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82620A
|
82620A
82620-20170 Block Assy, Fusible Link[05.1998 - 04.2001] CXM10,SXM1# |
82620-20170 |
US $51.40 |
||
|
82662A
|
82662A
82662-44060 Cover, Relay Block, Upper, No.1[05.1998 - 04.2001] CXM10 |
82662-44060 |
US $19.66 |
||
|
82662A
|
82662A
82662-44140 Cover, Relay Block, Upper, No.1[04.2001 -] CXM10 |
82662-44140 |
US $16.60 |
||
|
82672A
|
82672A
82672-44030 Cover, Junction Block[05.1998 - 04.2001] CXM10 |
82672-44030 |
US $38.58 |
||
|
82672A
|
82672A
82672-44090 Cover, Junction Block[04.2001 -] CXM10 |
82672-44090 |
US $34.65 |
||
|
82674
|
82674
82674-20040 Cover, Junction Block[05.1998 - 04.2001] CXM10,SXM1# |
82674-20040 |
from US $25.19 |
||
|
82720
|
82720
82720-44030 Block Assy, Engine Room Junction[05.1998 - 04.2001] CXM10 |
82720-44030 |
US $273.73 |
||
|
82741
|
82741
82741-20030 Block, Engine Room Relay[05.1998 - 04.2001] CXM10 |
82741-20030 |
US $16.02 |
||
|
82742
|
82742
82742-44010 Block, Engine Room Relay, No.2[05.1998 - 04.2001] CXM10 |
82742-44010 |
US $68.87 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[05.1998 - 04.2001] CXM10,SXM1# |
82824-20140 |
US $3.32 |
||
|
83390
|
83390
83390-32100 Switch Assy, Vacuum Warning[05.1998 - 04.2001] CXM10 |
83390-32100 |
US $69.54 |
||
|
85916
|
85916
85916-30060 Relay, Light Control[04.2001 -] ACM1#,CXM10,SXM15 |
85916-30060 |
from US $86.89 |
||
|
85916P
|
85916P
90987-02006 Relay[05.1998 - 04.2001] CXM10,SXM1# |
90987-02006 |
from US $27.28 |
||
|
85927
|
85927
90987-02006 Relay[05.1998 - 04.2001] CXM10 |
90987-02006 |
from US $27.28 |
||
|
85927A
|
85927A
90987-04002 Relay, Ignition, No.1[05.1998 - 04.2001] CXM10 |
90987-04002 |
from US $24.67 |
||
|
85927B
|
85927B
90987-02006 Relay[05.1998 - 04.2001] CXM10 |
90987-02006 |
from US $27.28 |
||
|
85959A
|
85959A
85959-44010 Holder, Relay[05.1998 - 04.2001] CXM10 |
85959-44010 |
US $4.95 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[05.1998 - 04.2001] CXM10,SXM1# |
86530-20070 |
from US $15.20 |
||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.68 |
||
|
2334454010
|
2334454010
23344-54010 O-Ring (For Drain Plug) |
23344-54010 |
from US $1.70 |
||
|
2338864470
|
2338864470
23388-64470 Plug, Drain(For Fuel Filter) |
23388-64470 |
from US $4.93 |
||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.12 |
