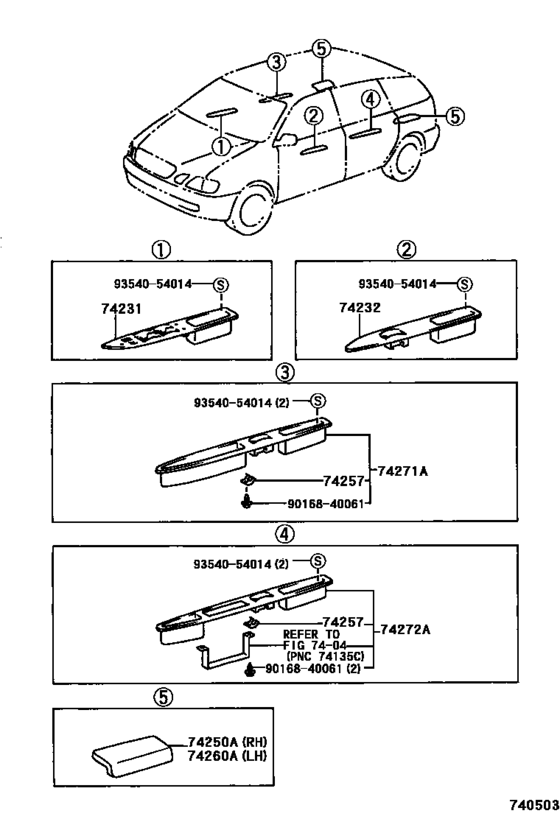

Armrest & Visor ([05.1998 - ] (9805- )) Diagram Toyota GAIA
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXM10
- ENGINE
- 3SFE
- From
- 05.1998
- To
- 04.2001
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74231
|
74231
74231-44040 Panel, Front Armrest Base, Upper Rh[05.1998 - 04.2001] CXM10,SXM1# ﾓｸﾒ |
74231-44040 |
US $72.22 |
||
|
74231
|
74231
74231-44050 Panel, Front Armrest Base, Upper Rh[05.1998 - 04.2001] CXM10,SXM1# ﾓｸﾒ & ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ) |
74231-44050 |
US $72.22 |
||
|
74231
|
74231
74231-44120 Panel, Front Armrest Base, Upper Rh[04.2000 - 04.2001] SXM1# ﾓｸﾒ(ﾌﾞﾗﾂｸ) |
74231-44120 |
US $91.73 |
||
|
74231
|
74231
74231-44130 Panel, Front Armrest Base, Upper Rh[04.2000 - 04.2001] SXM1# ﾓｸﾒ(ﾌﾞﾗﾂｸ) & ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ) |
74231-44130 |
US $91.73 |
||
|
74232
|
74232
74232-44040 Panel, Front Armrest Base, Upper Lh[05.1998 - 04.2001] CXM10,SXM1# ﾓｸﾒ |
74232-44040 |
US $72.22 |
||
|
74232
|
74232
74232-44080 Panel, Front Armrest Base, Upper Lh[04.2000 - 04.2001] SXM1# ﾓｸﾒ(ﾌﾞﾗﾂｸ) |
74232-44080 |
US $72.36 |
||
|
74250A
|
74250A
74250-44080-A0 Armrest Assy, Quarter, Rh[05.1998 - 04.2001] CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
74250-44080-A0 |
US $74.26 |
||
|
74250A
|
74250A
74250-44090-A0 Armrest Assy, Quarter, Rh[05.1998 - 04.2000] CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
74250-44090-A0 |
US $74.26 |
||
| replacement | |||||
|
74250A
|
74250A
74250-44090-A1 Armrest Assy, Quarter, Rh[05.1998 - 04.2000] CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
74250-44090-A1 |
US $74.26 |
||
|
74250A
|
74250A
74250-44090-A1 Armrest Assy, Quarter, Rh[04.2000 - 04.2001] CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
74250-44090-A1 |
US $74.26 |
||
|
74250A
|
74250A
74250-44120-A0 Armrest Assy, Quarter, Rh[05.1998 - 04.2001] SXM1# TECS=ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ,IVORY,TRIM01 |
74250-44120-A0 |
US $74.26 |
||
|
74250A
|
74250A
74250-44140-A0 Armrest Assy, Quarter, Rh[10.1998 - 03.1999] SXM1# ﾘﾐﾃﾂﾄﾞ *(A),IVORY,TRIM01 |
74250-44140-A0 |
US $74.26 |
||
| replacement | |||||
|
74250A
|
74250A
74250-44140-A1 Armrest Assy, Quarter, Rh[10.1998 - 03.1999] SXM1# ﾘﾐﾃﾂﾄﾞ *(A),IVORY,TRIM01 |
74250-44140-A1 |
US $74.26 |
||
|
74250A
|
74250A
74250-44140-A1 Armrest Assy, Quarter, Rh[04.1999 - 09.2000] SXM1# ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM01 |
74250-44140-A1 |
US $74.26 |
||
|
74250A
|
74250A
74250-44140-B0 Armrest Assy, Quarter, Rh[04.2000 - 04.2001] SXM1# ﾄﾘﾑ = TYPE C-*104,MOON MIST,TRIM1# |
74250-44140-B0 |
US $74.26 |
||
|
74250A
|
74250A
74250-44230-A0 Armrest Assy, Quarter, Rh[10.2000 - 04.2001] SXM1# ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E),IVORY,TRIM01 |
74250-44230-A0 |
US $74.26 |
||
|
74257
|
74257
74257-44010 Spring, Armrest, No.1[05.1998 - 04.2001] CXM10,SXM1# |
74257-44010 |
US $1.75 |
||
|
74260A
|
74260A
74260-44050-A0 Armrest Assy, Quarter, Lh[05.1998 - 04.2001] CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
74260-44050-A0 |
US $74.26 |
||
|
74260A
|
74260A
74260-44060-A0 Armrest Assy, Quarter, Lh[05.1998 - 04.2000] CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
74260-44060-A0 |
US $74.26 |
||
| replacement | |||||
|
74260A
|
74260A
74260-44060-A1 Armrest Assy, Quarter, Lh[05.1998 - 04.2000] CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
74260-44060-A1 |
US $74.26 |
||
|
74260A
|
74260A
74260-44060-A1 Armrest Assy, Quarter, Lh[04.2000 - 04.2001] CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
74260-44060-A1 |
US $74.26 |
||
|
74260A
|
74260A
74260-44090-A0 Armrest Assy, Quarter, Lh[05.1998 - 04.2001] SXM1# TECS=ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ,IVORY,TRIM01 |
74260-44090-A0 |
US $74.26 |
||
|
74260A
|
74260A
74260-44100-A0 Armrest Assy, Quarter, Lh[10.1998 - 03.1999] SXM1# ﾘﾐﾃﾂﾄﾞ *(A),IVORY,TRIM01 |
74260-44100-A0 |
US $74.26 |
||
| replacement | |||||
|
74260A
|
74260A
74260-44100-A1 Armrest Assy, Quarter, Lh[10.1998 - 03.1999] SXM1# ﾘﾐﾃﾂﾄﾞ *(A),IVORY,TRIM01 |
74260-44100-A1 |
US $74.26 |
||
|
74260A
|
74260A
74260-44100-A1 Armrest Assy, Quarter, Lh[04.1999 - 09.2000] SXM1# ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM01 |
74260-44100-A1 |
US $74.26 |
||
|
74260A
|
74260A
74260-44100-B0 Armrest Assy, Quarter, Lh[04.2000 - 04.2001] SXM1# ﾄﾘﾑ = TYPE C-*104,MOON MIST,TRIM1# |
74260-44100-B0 |
US $74.26 |
||
|
74260A
|
74260A
74260-44180-A0 Armrest Assy, Quarter, Lh[10.2000 - 04.2001] SXM1# ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E),IVORY,TRIM01 |
74260-44180-A0 |
US $74.26 |
||
|
74271A
|
74271A
74271-44040 Panel, Rear Door Armrest Base, Upper Rh[05.1998 - 04.2001] CXM10,SXM1# ﾓｸﾒ |
74271-44040 |
US $91.73 |
||
|
74271A
|
74271A
74271-44090 Panel, Rear Door Armrest Base, Upper Rh[04.2000 - 04.2001] SXM1# ﾓｸﾒ(ﾌﾞﾗﾂｸ) |
74271-44090 |
US $91.73 |
||
|
74272A
|
74272A
74272-44030 Panel, Rear Door Armrest Base, Upper Lh[05.1998 - 04.2001] CXM10,SXM1# ﾓｸﾒ |
74272-44030 |
US $91.73 |
||
|
74272A
|
74272A
74272-44080 Panel, Rear Door Armrest Base, Upper Lh[04.2000 - 04.2001] SXM1# ﾓｸﾒ(ﾌﾞﾗﾂｸ) |
74272-44080 |
US $91.73 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
US $1.12 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.05 |
||
