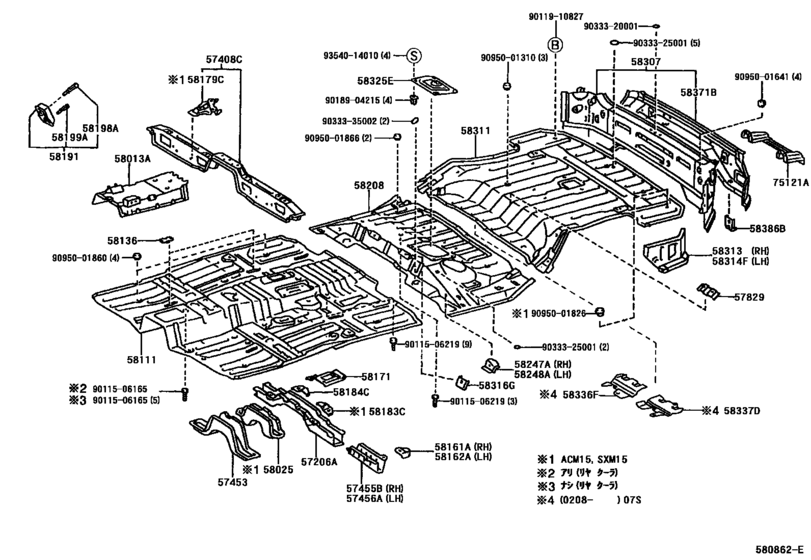

Floor Pan & Lower Back Panel ([05.1998 - ] (9805- )) Diagram Toyota GAIA
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXM10
- ENGINE
- 3SFE
- From
- 05.1998
- To
- 04.2001
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57206A
|
57206A
57459-44902 Member Sub-Assy, Front Floor Cross, No.2[05.1998 - 04.2001] CXM10,SXM1# |
57459-44902 |
US $88.82 |
||
|
57408C
|
57408C
57408-44900
Member Sub-Assy, Front Floor Cross
[05.1998 - 04.2001] CXM10,SXM10 |
57408-44900 |
— | ||
| replacement | |||||
|
57408C
|
57408C
57408-44903
Member Sub-Assy, Front Floor Cross
[05.1998 - 04.2001] CXM10,SXM10 |
57408-44903 |
— | ||
|
57453
|
57453
57453-44010 Member, Front Floor Cross, No.3[05.1998 - 04.2001] CXM10,SXM1# |
57453-44010 |
US $48.92 |
||
|
57455B
|
57455B
57455-44010 Gusset, Front Floor Crossmember, Rh[05.1998 - 04.2001] CXM10,SXM1# |
57455-44010 |
US $53.14 |
||
|
57456A
|
57456A
57456-44010 Gusset, Front Floor Crossmember, Lh[05.1998 - 04.2001] CXM10,SXM1# |
57456-44010 |
US $53.14 |
||
|
57829
|
57829
57829-44010 Reinforcement, Seat Leg[05.1998 - 04.2001] CXM10,SXM1# |
57829-44010 |
US $34.07 |
||
|
58013A
|
58013A
58013-44010 Panel Sub-Assy, Front Floor, Rear Upper[05.1998 - 04.2001] CXM10,SXM1# |
58013-44010 |
US $90.27 |
||
|
58111
|
58111
58111-44050 Pan, Front Floor[05.1998 - 04.2001] CXM10,SXM1# |
58111-44050 |
US $612.98 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[05.1998 - 04.2001] CXM10,SXM1# |
58136-33010 |
US $3.06 |
||
|
58161A
|
58161A
58161-44010 Reinforcement, Belt Anchor To Floor Pan, Rh[05.1998 - 04.2001] CXM10,SXM1# |
58161-44010 |
US $18.20 |
||
|
58162A
|
58162A
58162-44010 Reinforcement, Belt Anchor To Floor Pan, Lh[05.1998 - 04.2001] CXM10,SXM1# |
58162-44010 |
US $18.20 |
||
|
58171
|
58171
58171-44011 Reinforcement, Parking Brake Base[05.1998 - 04.2001] CXM10,SXM10 |
58171-44011 |
US $54.60 |
||
|
58184C
|
58184C
58184-44010 Bracket, Front Seat Mounting, Inner Lh[05.1998 - 04.2001] CXM10,SXM1# |
58184-44010 |
US $13.69 |
||
|
58191
|
58191
58191-44010 Footrest, Front Floor[05.1998 - 04.2001] CXM10,SXM1# |
58191-44010 |
US $26.64 |
||
|
58198A
|
58198A
58198-44011 Clip, Footrest, No.1[05.1998 - 04.2001] CXM10,SXM1# |
58198-44011 |
US $4.95 |
||
|
58199A
|
58199A
58198-44021 Clip, Footrest, No.2[05.1998 - 04.2001] CXM10,SXM1# |
58198-44021 |
US $4.95 |
||
|
58208
|
58208
58211-44040 Pan, Center Floor[05.1998 - 04.2001] CXM10,SXM1#..06S |
58211-44040 |
US $382.93 |
||
|
58247A
|
58247A
58247-44010 Reinforcement, Rear Seat Cushion Hinge, Rh[05.1998 - 04.2001] CXM10,SXM1# |
58247-44010 |
US $16.02 |
||
|
58248A
|
58248A
58248-44010 Reinforcement, Rear Seat Cushion Hinge, Lh[05.1998 - 04.2001] CXM10,SXM1# |
58248-44010 |
US $16.02 |
||
|
58307
|
58307
58307-44901 Panel Sub-Assy, Body Lower Back[05.1998 - 04.2001] CXM10,SXM1# |
58307-44901 |
US $460.10 |
||
|
58311
|
58311
58311-44030 Pan, Rear Floor[05.1998 - 04.2001] CXM10,SXM1# |
58311-44030 |
US $503.78 |
||
|
58313
|
58313
58313-44010 Panel, Rear Floor Side, Rh[05.1998 - 04.2001] CXM10,SXM1# |
58313-44010 |
US $28.54 |
||
|
58314F
|
58314F
58314-44010 Extension, Rear Floor Pan To Quarter Panel, Lh[05.1998 - 04.2001] CXM10,SXM1# |
58314-44010 |
US $28.54 |
||
|
58316G
|
58316G
58316-44010 Retainer, Rear Seat, No.1[05.1998 - 04.2001] CXM10,SXM1#..06S |
58316-44010 |
US $8.44 |
||
|
58325E
|
58325E
58325-44010 Cover, Rear Floor Service Hole[05.1998 - 04.2001] CXM10,SXM1# |
58325-44010 |
US $28.54 |
||
|
58371B
|
58371B
58371-44020 Panel, Body Lower Back, Outer[05.1998 - 04.2001] CXM10,SXM1# |
58371-44020 |
US $235.87 |
||
|
58386B
|
58386B
58386-44010 Bracket, Rear Bumper Cover, No.2[05.1998 - 04.2001] CXM10,SXM1# |
58386-44010 |
US $5.97 |
||
|
75121A
|
75121A
75121-32020 Bracket, Rear License Plate[05.1998 - 04.2001] CXM10,SXM1# |
75121-32020 |
US $17.33 |
||
|
9011506165
|
9011506165
90115-06165 New Genuine Part |
90115-06165 |
US $1.38 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011910827
|
9011910827
90119-10827 New Genuine Part |
90119-10827 |
US $1.75 |
||
|
9018904215
|
9018904215
90189-04215 New Genuine Part |
90189-04215 |
US $2.24 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.31 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9095001310
|
9095001310
90950-01310 Plug, Hole |
90950-01310 |
from US $7.04 |
||
|
9095001641
|
9095001641
90950-01641 New Genuine Part |
90950-01641 |
US $3.20 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001860
|
9095001860
90950-01860
PLUG HOLE
|
90950-01860 |
— | ||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.96 |
||
