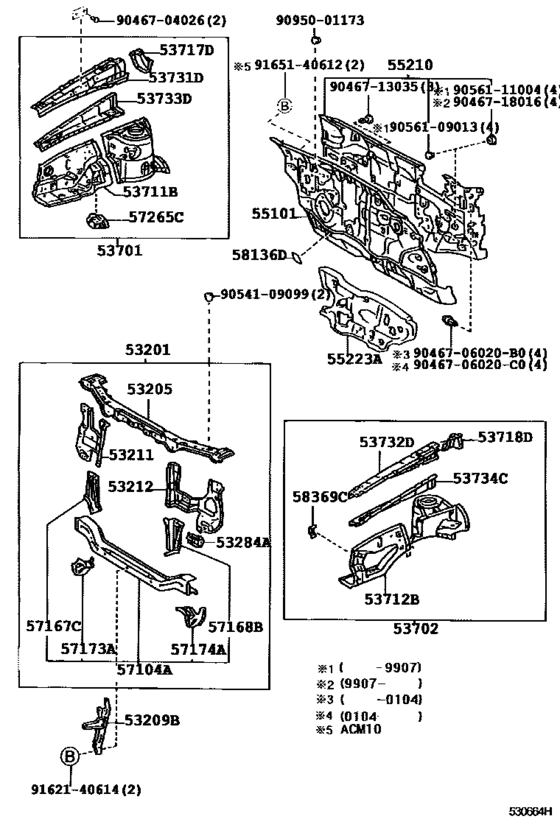

Front Fender Apron & Dash Panel ([05.1998 - ] (9805- )) Diagram Toyota GAIA
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXM10
- ENGINE
- 3SFE
- From
- 05.1998
- To
- 04.2001
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-44020 Support Sub-Assy, Radiator[05.1998 - 04.2001] CXM10,SXM1# |
53201-44020 |
from US $314.46 |
||
|
53205
|
53205
53205-44011 Support Sub-Assy, Radiator, Upper[05.1998 - 04.2001] CXM10,SXM1# |
53205-44011 |
US $129.25 |
||
|
53209B
|
53209B
53209-44020 Brace Sub-Assy, Hood Lock Support[05.1998 - 04.2001] CXM10,SXM1# |
53209-44020 |
US $35.38 |
||
|
53211
|
53211
53211-44020 Support, Radiator, Rh[05.1998 - 04.2001] CXM10,SXM1# |
53211-44020 |
US $41.06 |
||
|
53212
|
53212
53212-44020 Support, Radiator, Lh[05.1998 - 04.2001] CXM10,SXM1# |
53212-44020 |
US $41.06 |
||
|
53284A
|
53284A
53284-44020 Retainer, Front Body Mounting[05.1998 - 04.2001] CXM10,SXM1# |
53284-44020 |
US $7.72 |
||
|
53701
|
53701
53701-44010 Apron Sub-Assy, Front Fender, Rh[05.1998 - 04.2001] CXM10,SXM1# |
53701-44010 |
US $371.28 |
||
|
53702
|
53702
53702-44010 Apron Sub-Assy, Front Fender, Lh[05.1998 - 04.2001] CXM10,SXM1# |
53702-44010 |
US $371.28 |
||
|
53711B
|
53711B
53711-44010 Apron, Front Fender, Front Rh[05.1998 - 04.2001] CXM10,SXM1# |
53711-44010 |
US $67.12 |
||
|
53712B
|
53712B
53712-44010 Apron, Front Fender, Front Lh[05.1998 - 04.2001] CXM10,SXM1# |
53712-44010 |
US $67.12 |
||
|
53717D
|
53717D
53717-44010 Gusset, Fender Apron, Rh[05.1998 - 04.2001] CXM10,SXM1# |
53717-44010 |
US $22.28 |
||
|
53718D
|
53718D
53718-44010 Gusset, Fender Apron, Lh[05.1998 - 04.2001] CXM10,SXM1# |
53718-44010 |
US $22.28 |
||
|
53731D
|
53731D
53731-44010 Member, Front Apron To Cowl Side, Upper Rh[05.1998 - 04.2001] CXM10,SXM1# |
53731-44010 |
US $53.14 |
||
|
53732D
|
53732D
53732-44010 Member, Front Apron To Cowl Side, Upper Lh[05.1998 - 04.2001] CXM10,SXM1# |
53732-44010 |
US $53.14 |
||
|
53733D
|
53733D
53733-44010 Member, Front Apron To Cowl Side, Lower Front Rh[05.1998 - 04.2001] CXM10,SXM1# |
53733-44010 |
US $48.92 |
||
|
53734C
|
53734C
53734-44010 Member, Front Apron To Cowl Side, Lower Front Lh[05.1998 - 04.2001] CXM10,SXM1# |
53734-44010 |
US $48.92 |
||
|
55101
|
55101
55101-44090 Panel Sub-Assy, Dash[05.1998 - 04.2001] SXM1# ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
55101-44090 |
US $467.38 |
||
|
55101
|
55101
55101-49025 Panel Sub-Assy, Dash[05.1998 - 04.2001] SXM1# |
55101-49025 |
US $467.38 |
||
|
55210
|
55210
55210-44040 Insulator Assy, Dash Panel[05.1998 - 04.2001] CXM10,SXM1# |
55210-44040 |
US $343.62 |
||
|
57104A
|
57104A
57104-20140 Member Sub-Assy, Front Cross[05.1998 - 04.2001] CXM10,SXM1# |
57104-20140 |
US $195.10 |
||
|
57167C
|
57167C
57167-20160 Gusset, Front Crossmember Side, Rh[05.1998 - 04.2001] CXM10,SXM1# |
57167-20160 |
US $24.17 |
||
|
57168B
|
57168B
57168-20150 Gusset, Front Crossmember Side, Lh[05.1998 - 04.2001] CXM10,SXM1# |
57168-20150 |
US $24.17 |
||
|
57173A
|
57173A
57173-20050 Reinforcement, Front Crossmember, No.3 Rh[05.1998 - 04.2001] CXM10,SXM1# |
57173-20050 |
US $26.94 |
||
|
57174A
|
57174A
57174-20050 Reinforcement, Front Crossmember, No.3 Lh[05.1998 - 04.2001] CXM10,SXM1# |
57174-20050 |
US $26.94 |
||
|
57265C
|
57265C
57265-20110 Bracket, Engine Mounting, Rh[05.1998 - 04.2001] CXM10,SXM1# |
57265-20110 |
US $18.20 |
||
|
58136D
|
58136D
58136-44010 Cover, Dash Panel Service Hole[05.1998 - 04.2001] CXM10,SXM1# ＫＯＪＩＭＡ |
58136-44010 |
US $2.18 |
||
|
58136D
|
58136D
90950-06098 Cover, Dash Panel Service Hole[05.1998 - 04.2001] CXM10,SXM1# |
90950-06098 |
US $3.36 |
||
|
58369C
|
58369C
58369-32010 Bracket, Insulator Heat[05.1998 - 04.2001] CXM10,SXM1# |
58369-32010 |
US $3.32 |
||
|
9046704026
|
9046704026
90467-04026 New Genuine Part |
90467-04026 |
US $1.75 |
||
|
9046706020B0
|
9046706020B0
90467-06020-B0 Clip, No.2(For Parking Brake) |
90467-06020-B0 |
US $1.31 |
||
|
9046706020C0
|
9046706020C0
90467-06020-C0 Clip |
90467-06020-C0 |
from US $1.42 |
||
|
9046713035
|
9046713035
90467-13035 Clip |
90467-13035 |
US $1.22 |
||
|
9046718016
|
9046718016
90467-18016 Clip |
90467-18016 |
US $1.31 |
||
|
9054109099
|
9054109099
90541-09099 New Genuine Part |
90541-09099 |
US $3.49 |
||
|
9056109013
|
9056109013
90561-09013 SPACER |
90561-09013 |
US $1.02 |
||
|
9056111004
|
9056111004
90561-11004 SPACER |
90561-11004 |
US $1.28 |
||
|
9095001173
|
9095001173
90950-01173 New Genuine Part |
90950-01173 |
US $2.18 |
||
| replacement | |||||
|
9095001173
|
9095001173
90950-01684 PLUG HOLE |
90950-01684 |
from US $2.79 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.80 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
