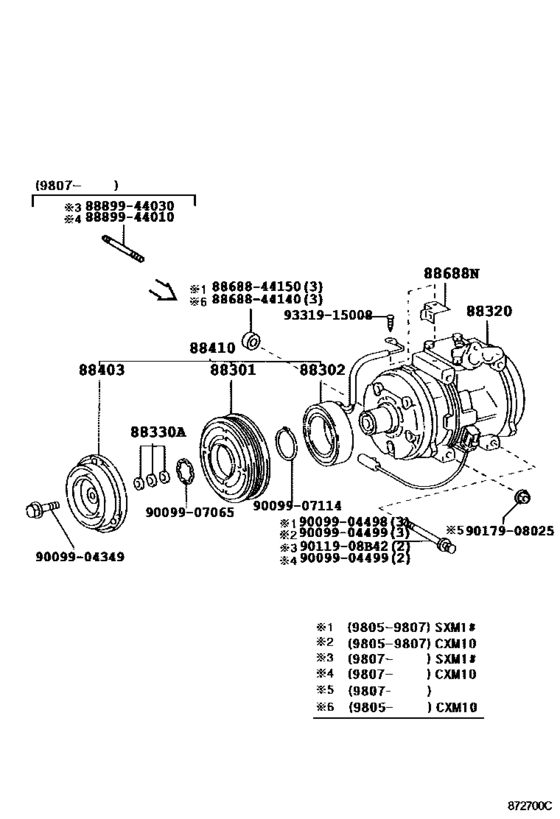

Heating & Air Conditioning - Compressor ([05.1998 - 04.2001] (9805-0104)) Diagram Toyota GAIA
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXM10
- ENGINE
- 3SFE
- From
- 05.1998
- To
- 04.2001
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-44050
Rotor Sub-Assy, Magnet Clutch
[05.1998 - 04.2001] CXM10,SXM1# |
88412-44050 |
— | ||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[05.1998 - 04.2001] CXM10,SXM1# |
88411-2A030 |
US $79.67 |
||
| replacement | |||||
|
88302
|
88302
88411-02030 Stator Sub-Assy, Magnet Clutch[05.1998 - 04.2001] CXM10,SXM1# |
88411-02030 |
US $294.80 |
||
|
88320
|
88320
88320-48040
Compressor Assy, Cooler
[05.1998 - 04.2001] CXM10,SXM1# |
88320-48040 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.1998 - 04.2001] CXM10,SXM1# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[05.1998 - 04.2001] CXM10,SXM1# |
88403-16011 |
US $82.47 |
||
|
88410
|
88410
88410-44050 Clutch Assy, Magnet[05.1998 - 04.2001] CXM10,SXM1# |
88410-44050 |
US $556.19 |
||
|
88688N
|
88688N
88688-32670 Bracket, Cooler Compressor[05.1998 - 04.2001] CXM10,SXM1# |
88688-32670 |
US $5.77 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8868844140
|
8868844140
88688-44140
Bracket, Cooler Compressor
|
88688-44140 |
— | ||
|
8868844150
|
8868844150
88688-44150
Bracket, Cooler Diaphragm
|
88688-44150 |
— | ||
|
8889944010
|
8889944010
88899-44010
Bolt, Stud(For Fc Cooling Water Pump)
|
88899-44010 |
— | ||
|
8889944030
|
8889944030
88899-44030
Cover, Evaporator
|
88899-44030 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904498
|
9009904498
90099-04498 New Genuine Part |
90099-04498 |
US $2.20 |
||
|
9009904499
|
9009904499
90099-04499 New Genuine Part |
90099-04499 |
US $3.06 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
