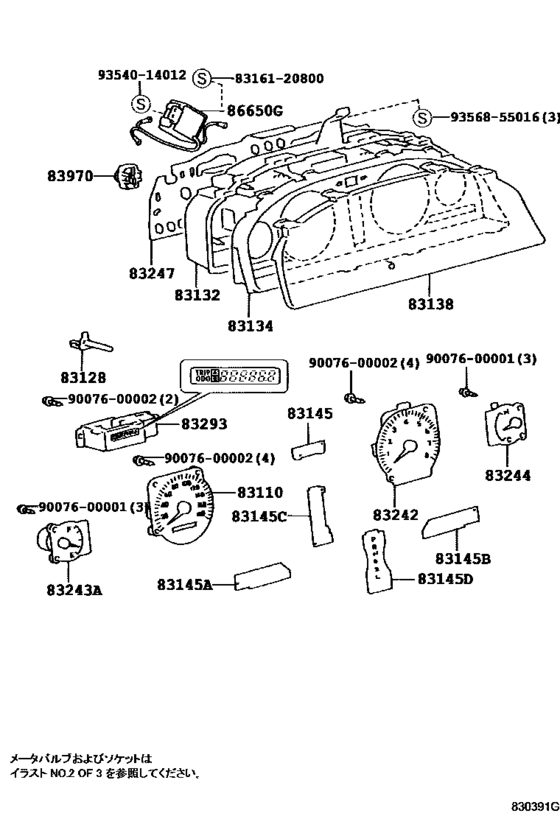

Meter ([05.1998 - 04.2001] ｱﾅﾛｸﾞﾒｰﾀ (9805-0104)) Diagram Toyota GAIA
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXM10
- ENGINE
- 3SFE
- From
- 05.1998
- To
- 04.2001
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83220-44060 Speedometer Assy[08.1998 - 04.2001] SXM1# TECS ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ |
83220-44060 |
US $381.47 |
||
|
83110
|
83110
83220-44070 Speedometer Assy[05.1998 - 04.2001] CXM10,SXM1# |
83220-44070 |
US $381.47 |
||
|
83110
|
83110
83220-44080 Speedometer Assy[05.1998 - 04.2001] SXM10 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83220-44080 |
US $850.30 |
||
|
83110
|
83110
83220-44120 Speedometer Assy[04.2000 - 04.2001] SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83220-44120 |
US $381.47 |
||
|
83110
|
83110
83220-44230 Speedometer Assy[10.2000 - 04.2001] SXM10 ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) |
83220-44230 |
US $850.30 |
||
|
83128
|
83128
83224-44010 Knob, Trip Counter[05.1998 - 04.2001] CXM10,SXM1# |
83224-44010 |
US $5.82 |
||
|
83132
|
83132
83841-44010 Case, Combination Meter[05.1998 - 04.2001] CXM10,SXM1# |
83841-44010 |
US $28.10 |
||
|
83132
|
83132
83841-44070 Case, Combination Meter[08.1998 - 04.2001] SXM1# TECS ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ |
83841-44070 |
US $28.10 |
||
|
83132
|
83132
83841-44160 Case, Combination Meter[05.1998 - 04.2001] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83841-44160 |
US $28.25 |
||
|
83134
|
83134
83821-20590 Cover, Combination Meter, No.1[05.1998 - 04.2001] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83821-20590 |
US $84.45 |
||
|
83134
|
83134
83821-44010 Cover, Combination Meter, No.1[08.1998 - 04.2001] SXM1# TECS ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ |
83821-44010 |
US $84.45 |
||
|
83134
|
83134
83821-44120 Cover, Combination Meter, No.1[05.1998 - 04.2001] CXM10,SXM1# |
83821-44120 |
US $47.32 |
||
|
83134
|
83134
83821-44350 Cover, Combination Meter, No.1[04.2000 - 04.2001] SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83821-44350 |
US $47.32 |
||
|
83138
|
83138
83852-20130 Glass, Speedometer[05.1998 - 04.2001] CXM10,SXM1# |
83852-20130 |
US $28.25 |
||
|
83138
|
83138
83852-20590 Glass, Speedometer[05.1998 - 04.2001] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83852-20590 |
US $28.25 |
||
|
83145
|
83145
83831-20130 Lens, Meter, No.1[05.1998 - 04.2001] CXM10,SXM1# |
83831-20130 |
US $7.43 |
||
|
83145A
|
83145A
83832-20130 Lens, Meter, No.2[05.1998 - 04.2001] CXM10,SXM1# |
83832-20130 |
US $7.57 |
||
| replacement | |||||
|
83145A
|
83145A
83831-20610 Lens, Meter, No.2[05.1998 - 04.2001] CXM10,SXM1# |
83831-20610 |
US $7.43 |
||
|
83145B
|
83145B
83831-20150 Lens, Meter, No.3[05.1998 - 04.2001] SXM10 |
83831-20150 |
US $7.57 |
||
| replacement | |||||
|
83145B
|
83145B
83831-20140 Lens, Meter, No.3[05.1998 - 04.2001] SXM10 |
83831-20140 |
US $7.43 |
||
|
83145C
|
83145C
83831-44010 Lens, Meter, No.4[05.1998 - 04.2001] CXM10,SXM1# |
83831-44010 |
US $7.57 |
||
|
83145D
|
83145D
83887-44010
Lens, Meter, No.5
[05.1998 - 04.2001] CXM10,SXM1# |
83887-44010 |
— | ||
|
83242
|
83242
83881-44070 Tachometer Assy, Engine[08.1998 - 04.2001] SXM1# TECS ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ |
83881-44070 |
US $521.25 |
||
|
83242
|
83242
83881-44120 Tachometer Assy, Engine[05.1998 - 04.2001] SXM1# |
83881-44120 |
US $528.53 |
||
|
83242
|
83242
83881-44350 Tachometer Assy, Engine[04.2000 - 04.2001] SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83881-44350 |
US $528.53 |
||
|
83243A
|
83243A
83882-44070 Gauge Sub-Assy, Fuel Receiver[08.1998 - 04.2001] SXM1# TECS ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ |
83882-44070 |
US $70.76 |
||
|
83243A
|
83243A
83882-44120 Gauge Sub-Assy, Fuel Receiver[05.1998 - 04.2001] CXM10,SXM1# |
83882-44120 |
US $70.76 |
||
|
83243A
|
83243A
83882-44160 Gauge Sub-Assy, Fuel Receiver[05.1998 - 09.2000] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83882-44160 |
US $70.76 |
||
| replacement | |||||
|
83243A
|
83243A
83882-44161 Gauge Sub-Assy, Fuel Receiver[05.1998 - 09.2000] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83882-44161 |
US $70.76 |
||
|
83243A
|
83243A
83882-44161 Gauge Sub-Assy, Fuel Receiver[09.2000 - 04.2001] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83882-44161 |
US $70.76 |
||
|
83243A
|
83243A
83882-44350 Gauge Sub-Assy, Fuel Receiver[04.2000 - 04.2001] SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83882-44350 |
US $70.76 |
||
|
83243A
|
83243A
83882-44590 Gauge Sub-Assy, Fuel Receiver[10.2000 - 04.2001] SXM1# ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) |
83882-44590 |
US $77.17 |
||
|
83244
|
83244
83883-44070 Gauge Sub-Assy, Water Temperature Receiver[08.1998 - 04.2001] SXM1# TECS ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ |
83883-44070 |
US $70.76 |
||
|
83244
|
83244
83883-44120 Gauge Sub-Assy, Water Temperature Receiver[05.1998 - 04.2001] CXM10,SXM1# |
83883-44120 |
US $70.76 |
||
|
83244
|
83244
83883-44160 Gauge Sub-Assy, Water Temperature Receiver[05.1998 - 09.2000] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83883-44160 |
US $70.76 |
||
| replacement | |||||
|
83244
|
83244
83883-44161 Gauge Sub-Assy, Water Temperature Receiver[05.1998 - 09.2000] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83883-44161 |
US $70.76 |
||
|
83244
|
83244
83883-44161 Gauge Sub-Assy, Water Temperature Receiver[09.2000 - 04.2001] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83883-44161 |
US $70.76 |
||
|
83244
|
83244
83883-44350 Gauge Sub-Assy, Water Temperature Receiver[04.2000 - 04.2001] SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
83883-44350 |
US $70.76 |
||
|
83244
|
83244
83883-44590 Gauge Sub-Assy, Water Temperature Receiver[10.2000 - 04.2001] SXM1# ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) |
83883-44590 |
US $70.76 |
||
|
83247
|
83247
83861-44120 Plate, Meter Circuit[05.1998 - 04.2001] SXM10 |
83861-44120 |
US $55.62 |
||
|
83247
|
83247
83861-44160 Plate, Meter Circuit[05.1998 - 04.2001] CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83861-44160 |
US $55.62 |
||
|
83247
|
83247
83861-44220 Plate, Meter Circuit[08.1998 - 04.2001] SXM10 TECS ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ |
83861-44220 |
US $55.62 |
||
|
83293
|
83293
83293-44010 Computer, Total Counter Module[05.1998 - 04.2001] SXM1# |
83293-44010 |
US $347.98 |
||
|
83970
|
83970
83970-12020 Buzzer Assy, Reverse Warning[05.1998 - 04.2001] CXM10,SXM1# |
83970-12020 |
US $38.61 |
||
|
86650G
|
86650G
86650-33020 Chime, Speed Warning[05.1998 - 04.2001] CXM10,SXM1# |
86650-33020 |
US $39.60 |
||
|
8316120800
|
8316120800
83161-20800 Case, Combination Meter Mirror, No.1 |
83161-20800 |
US $1.46 |
||
|
9007600001
|
9007600001
90076-00001 SCREW WITH WASHER |
90076-00001 |
US $3.06 |
||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $4.08 |
||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
