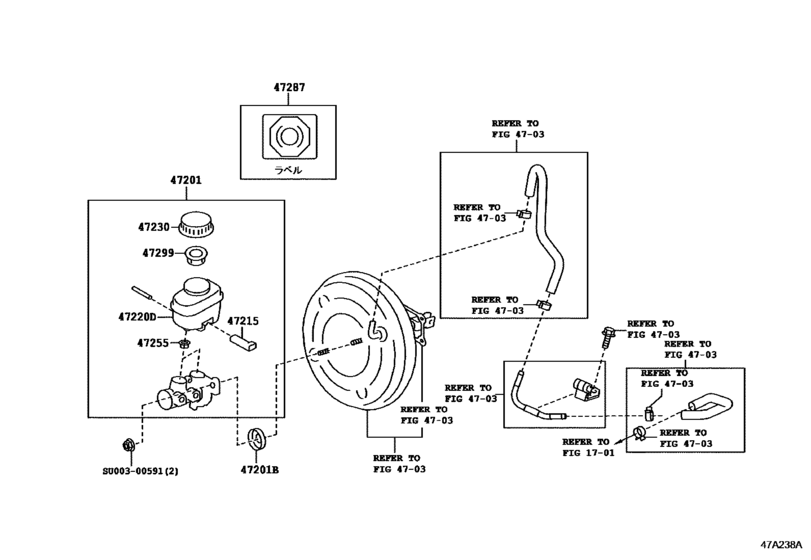

Brake Master Cylinder ([02.2016 - ] (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
SU003-04241 Cylinder Sub-Assy, Brake Master[02.2016 -] GRMN86 |
SU003-04241 |
US $371.28 |
||
|
47201B
|
47201B
SU003-00593 Ring, O(For Brake Master Cylinder)[02.2016 -] GRMN86 |
SU003-00593 |
US $12.11 |
||
|
47215
|
47215
SU003-04246 Indicator, Brake Fluid[02.2016 -] GRMN86 |
SU003-04246 |
US $35.38 |
||
|
47220D
|
47220D
SU003-04288
Reservoir Assy, Brake Master Cylinder
[02.2016 -] GRMN86 |
SU003-04288 |
— | ||
| replacement | |||||
|
47220D
|
47220D
SU003-10515 Reservoir Assy, Brake Master Cylinder[02.2016 -] GRMN86 |
SU003-10515 |
US $16.77 |
||
|
47230
|
47230
SU003-04244
Cap Assy, Brake Master Cylinder Reservoir Filler
[02.2016 -] GRMN86 |
SU003-04244 |
— | ||
| replacement | |||||
|
47230
|
47230
SU003-10494 Cap Assy, Brake Master Cylinder Reservoir Filler[02.2016 -] GRMN86 |
SU003-10494 |
US $24.53 |
||
|
47255
|
47255
SU003-04245 Grommet, Master Cylinder Reservoir[02.2016 -] GRMN86 |
SU003-04245 |
US $5.53 |
||
|
47287
|
47287
SU003-00565 Label, Brake Fluid Information[02.2016 -] GRMN86 |
SU003-00565 |
US $3.35 |
||
|
47299
|
47299
SU003-04243 Strainer, Brake Master Cylinder Reservoir[02.2016 -] GRMN86 |
SU003-04243 |
US $6.84 |
||
|
SU00300591
|
SU00300591
SU003-00591 New Genuine Part |
SU003-00591 |
US $0.72 |
||
