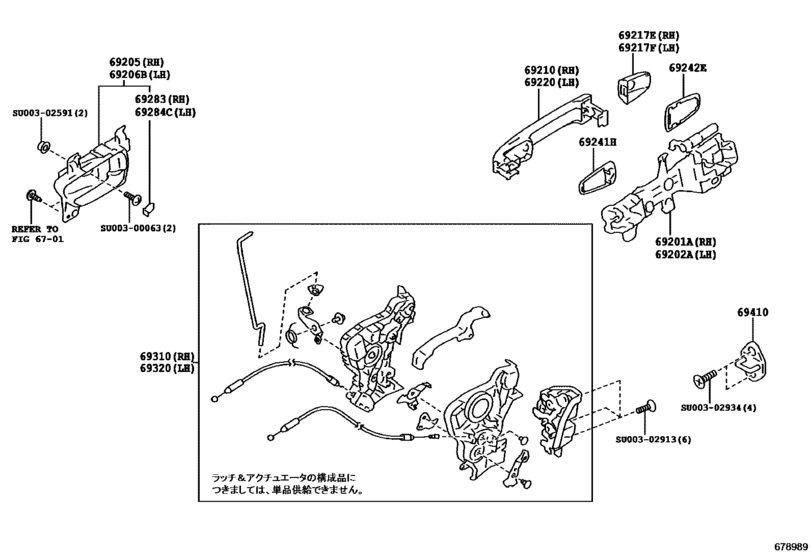

Front Door Lock & Handle ([02.2016 - ] (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69201A
|
69201A
SU003-01584 Frame Sub-Assy, Front Door Outside Handle, Rh[02.2016 -] GRMN86 |
SU003-01584 |
US $39.14 |
||
|
69202A
|
69202A
SU003-01585 Frame Sub-Assy, Front Door Outside Handle, Lh[02.2016 -] GRMN86 |
SU003-01585 |
US $39.14 |
||
|
69205
|
69205
SU003-04769
Handle Sub-Assy, Front Door Inside, Rh
[02.2016 -] GRMN86 |
SU003-04769 |
— | ||
| replacement | |||||
|
69205
|
69205
SU003-08369 REMOTE ASSY DR RH[02.2016 -] GRMN86 |
SU003-08369 |
from US $23.67 |
||
|
69206B
|
69206B
SU003-04770
Handle Sub-Assy, Front Door Inside, Lh
[02.2016 -] GRMN86 |
SU003-04770 |
— | ||
| replacement | |||||
|
69206B
|
69206B
SU003-08370 Handle, Inner, DR LH[02.2016 -] GRMN86 |
SU003-08370 |
from US $24.15 |
||
|
69210
|
69210
69210-52100
Handle Assy, Front Door, Outside Rh
[02.2016 -] GRMN86 |
69210-52100 |
— | ||
|
69217E
|
69217E
69217-52030
Cover, Front Door Outside Handle, Rh
[02.2016 -] GRMN86 |
69217-52030 |
— | ||
|
69217F
|
69217F
69217-52040
Cover, Front Door Outside Handle, Lh
[02.2016 -] GRMN86 |
69217-52040 |
— | ||
|
69220
|
69220
69210-52100
Handle Assy, Front Door, Outside Rh
[02.2016 -] GRMN86 |
69210-52100 |
— | ||
|
69241H
|
69241H
SU003-01614 Pad, Front Door Outside Handle, Front[02.2016 -] GRMN86 |
SU003-01614 |
US $1.08 |
||
|
69242E
|
69242E
SU003-01615 Pad, Front Door Outside Handle, Rear[02.2016 -] GRMN86 |
SU003-01615 |
US $1.08 |
||
|
69283
|
69283
SU003-01566 Plug, Front Door Inside Handle Bezel, Rh[02.2016 -] GRMN86 |
SU003-01566 |
US $1.97 |
||
|
69284C
|
69284C
SU003-01566 Plug, Front Door Inside Handle Bezel, Rh[02.2016 -] GRMN86 |
SU003-01566 |
US $1.97 |
||
|
69310
|
69310
SU003-04106 Lock Assy, Front Door, Rh[02.2016 -] GRMN86 |
SU003-04106 |
US $201.60 |
||
|
69320
|
69320
SU003-04107 Lock Assy, Front Door, Lh[02.2016 -] GRMN86 |
SU003-04107 |
US $201.60 |
||
|
69410
|
69410
SU003-04119 Plate Assy, Front Door Lock Striker[02.2016 -] GRMN86 |
SU003-04119 |
US $18.48 |
||
|
SU00300063
|
SU00300063
SU003-00063 New Genuine Part |
SU003-00063 |
US $0.36 |
||
|
SU00302591
|
SU00302591
SU003-02591 Grommet (For Front Assist Grip) |
SU003-02591 |
US $0.54 |
||
|
SU00302913
|
SU00302913
SU003-02913 New Genuine Part |
SU003-02913 |
US $0.72 |
||
|
SU00302934
|
SU00302934
SU003-02934 New Genuine Part |
SU003-02934 |
US $0.96 |
||
