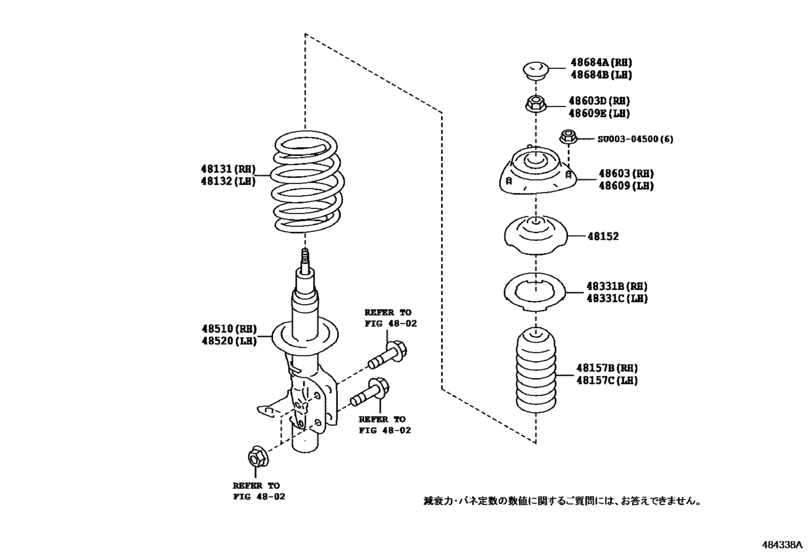

Front Spring & Shock Absorber ([02.2016 - ] (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-18050 Spring, Front Coil, Rh[02.2016 -] GRMN86 |
48131-18050 |
US $144.14 |
||
|
48132
|
48132
48131-18050 Spring, Front Coil, Rh[02.2016 -] GRMN86 |
48131-18050 |
US $144.14 |
||
|
48152
|
48152
SU003-00376 Seat, Front Spring[02.2016 -] GRMN86 |
SU003-00376 |
US $10.39 |
||
|
48157B
|
48157B
SU003-00375 Insulator, Front Coil Spring, Upper Rh[02.2016 -] GRMN86 |
SU003-00375 |
from US $12.45 |
||
|
48157C
|
48157C
SU003-00375 Insulator, Front Coil Spring, Upper Rh[02.2016 -] GRMN86 |
SU003-00375 |
from US $12.45 |
||
|
48331B
|
48331B
SU003-00377 Bumper, Front Spring, Rh[02.2016 -] GRMN86 |
SU003-00377 |
from US $7.79 |
||
|
48331C
|
48331C
SU003-00377 Bumper, Front Spring, Rh[02.2016 -] GRMN86 |
SU003-00377 |
from US $7.79 |
||
|
48510
|
48510
48510-18030 Absorber Assy, Shock, Front Rh[02.2016 -] GRMN86 マーク ４８５１０−１８０３０ |
48510-18030 |
US $608.61 |
||
|
48520
|
48520
48520-18030 Absorber Assy, Shock, Front Lh[02.2016 -] GRMN86 マーク ４８５２０−１８０３０ |
48520-18030 |
US $768.77 |
||
|
48603
|
48603
SU003-05801
Support Sub-Assy, Front Suspension, Rh
[02.2016 -] GRMN86 |
SU003-05801 |
— | ||
| replacement | |||||
|
48603
|
48603
SU003-09509 MOUNT STRUT F[02.2016 -] GRMN86 |
SU003-09509 |
from US $74.25 |
||
|
48603D
|
48603D
SU003-02868 Nut(For Front Support To Front Shock Absorber Rh)[02.2016 -] GRMN86 |
SU003-02868 |
US $2.33 |
||
|
48609
|
48609
SU003-05801
Support Sub-Assy, Front Suspension, Rh
[02.2016 -] GRMN86 |
SU003-05801 |
— | ||
| replacement | |||||
|
48609
|
48609
SU003-09509 MOUNT STRUT F[02.2016 -] GRMN86 |
SU003-09509 |
from US $74.25 |
||
|
48609E
|
48609E
SU003-02868 Nut(For Front Support To Front Shock Absorber Rh)[02.2016 -] GRMN86 |
SU003-02868 |
US $2.33 |
||
|
48684A
|
48684A
SU003-00378 Cover, Front Suspension Support Dust, Rh[02.2016 -] GRMN86 |
SU003-00378 |
US $5.38 |
||
|
48684B
|
48684B
SU003-00378 Cover, Front Suspension Support Dust, Rh[02.2016 -] GRMN86 |
SU003-00378 |
US $5.38 |
||
|
SU00304500
|
SU00304500
SU003-04500 New Genuine Part |
SU003-04500 |
US $1.97 |
||
