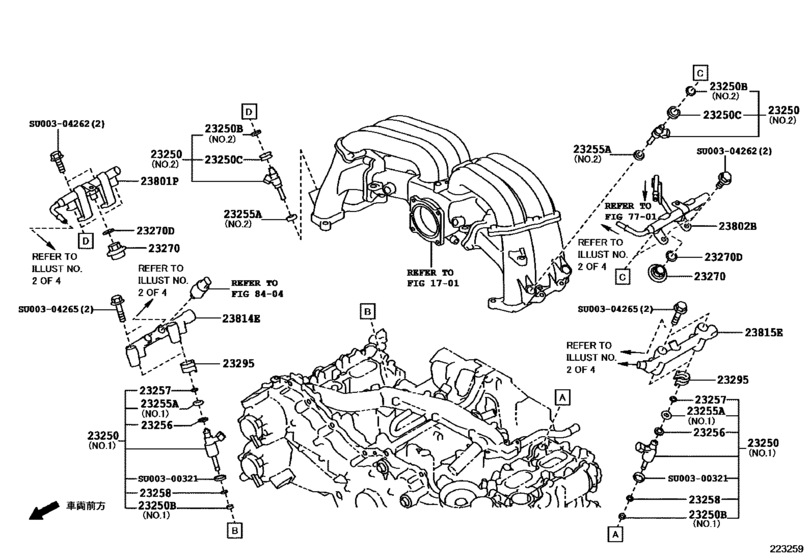

Fuel Injection System ([02.2016 - ] (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23250
|
23250
SU003-00325 Injector Assy, Fuel[02.2016 -] GRMN86 ＮＯ．２ |
SU003-00325 |
from US $187.44 |
||
|
23250
|
23250
SU003-04460 Injector Assy, Fuel[02.2016 -] GRMN86 マーク １，ＮＯ．１ |
SU003-04460 |
US $330.22 |
||
|
23250
|
23250
SU003-04461 Injector Assy, Fuel[02.2016 -] GRMN86 マーク ２，ＮＯ．１ |
SU003-04461 |
from US $283.63 |
||
|
23250
|
23250
SU003-04462 Injector Assy, Fuel[02.2016 -] GRMN86 マーク ３，ＮＯ．１ |
SU003-04462 |
from US $270.35 |
||
|
23250B
|
23250B
SU003-00322 Ring, O(For Fuel Injector)[02.2016 -] GRMN86 ＮＯ．１ |
SU003-00322 |
US $5.02 |
||
|
23250B
|
23250B
SU003-00335 Ring, O(For Fuel Injector)[02.2016 -] GRMN86 ＮＯ．２ |
SU003-00335 |
US $3.58 |
||
|
23250C
|
23250C
SU003-00317 Grommet(For Fuel Injector)[02.2016 -] GRMN86 |
SU003-00317 |
US $0.72 |
||
|
23255A
|
23255A
SU003-00323 Seal, Fuel Injector[02.2016 -] GRMN86 ＮＯ．１ |
SU003-00323 |
US $6.09 |
||
|
23255A
|
23255A
SU003-00324 Seal, Fuel Injector[02.2016 -] GRMN86 ＮＯ．２ |
SU003-00324 |
US $3.58 |
||
|
23256
|
23256
SU003-00333 Ring, Fuel Injector Back-Up, No.1[02.2016 -] GRMN86 |
SU003-00333 |
US $5.91 |
||
|
23257
|
23257
SU003-00334 Ring, Fuel Injector Back-Up, No.2[02.2016 -] GRMN86 |
SU003-00334 |
US $5.91 |
||
|
23258
|
23258
SU003-00632 Ring, Fuel Injector Back-Up, No.3[02.2016 -] GRMN86 |
SU003-00632 |
US $12.19 |
||
|
23270
|
23270
SU003-00331 Damper Assy, Fuel Pressure Pulsation[02.2016 -] GRMN86 |
SU003-00331 |
US $72.36 |
||
|
23270D
|
23270D
SU003-00346 Gasket(For Pulsation Damper)[02.2016 -] GRMN86 |
SU003-00346 |
US $2.51 |
||
|
23295
|
23295
SU003-00320 Holder, Injector, No.1[02.2016 -] GRMN86 |
SU003-00320 |
US $5.09 |
||
|
23801P
|
23801P
SU003-00338 Pipe Sub-Assy, Fuel, No.1[02.2016 -] GRMN86 |
SU003-00338 |
US $72.36 |
||
|
23802B
|
23802B
SU003-00339 Pipe Sub-Assy, Fuel, No.2[02.2016 -] GRMN86 |
SU003-00339 |
US $72.36 |
||
|
23814E
|
23814E
SU003-00336 Pipe, Fuel Delivery, Rh[02.2016 -] GRMN86 |
SU003-00336 |
US $200.93 |
||
|
23815E
|
23815E
SU003-00337 Pipe, Fuel Delivery, Lh[02.2016 -] GRMN86 |
SU003-00337 |
US $200.93 |
||
|
SU00300321
|
SU00300321
SU003-00321 New Genuine Part |
SU003-00321 |
US $7.88 |
||
|
SU00304262
|
SU00304262
SU003-04262 New Genuine Part |
SU003-04262 |
US $0.96 |
||
|
SU00304265
|
SU00304265
SU003-04265 Bolt(For Camshaft Housing To Cylinder Head, Rh) |
SU003-04265 |
US $2.15 |
