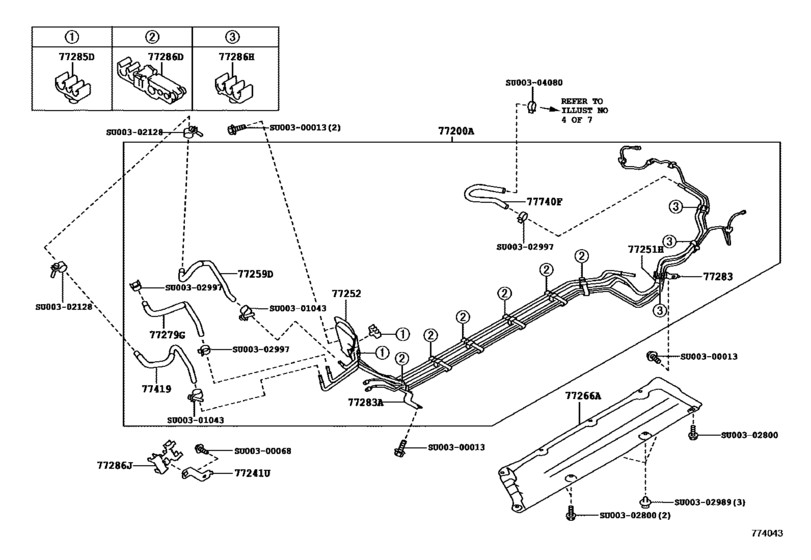

Fuel Tank & Tube ([02.2016 - ] ﾌｭｰｴﾙ(ﾌﾞﾚｰｷ)ﾁｭｰﾌﾞ (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77200A
|
77200A
SU003-01075
Pipe Assy, Center
[02.2016 -] GRMN86 |
SU003-01075 |
— | ||
| replacement | |||||
|
77200A
|
77200A
SU003-07285
Pipe Assy, Center
[02.2016 -] GRMN86 |
SU003-07285 |
— | ||
|
77241U
|
77241U
SU003-01057 Bracket, Fuel Clamp[02.2016 -] GRMN86 |
SU003-01057 |
US $3.06 |
||
|
77251H
|
77251H
SU003-00615 Cushion, Fuel Main Tube[02.2016 -] GRMN86 |
SU003-00615 |
US $3.20 |
||
|
77252
|
77252
SU003-01048 Protector, Fuel Tube[02.2016 -] GRMN86 |
SU003-01048 |
US $11.21 |
||
|
77259D
|
77259D
SU003-01096 Hose, Fuel, No.1[02.2016 -] GRMN86 |
SU003-01096 |
US $26.79 |
||
| replacement | |||||
|
77259D
|
77259D
SU003-07288 Hose, Fuel, No.1[02.2016 -] GRMN86 |
SU003-07288 |
US $47.04 |
||
|
77266A
|
77266A
SU003-01049 Cover, Engine Under, Rear Lh[02.2016 -] GRMN86 |
SU003-01049 |
US $43.34 |
||
|
77279G
|
77279G
SU003-01098 Hose, Fuel, No.2[02.2016 -] GRMN86 |
SU003-01098 |
US $13.40 |
||
|
77283
|
77283
SU003-01059 Bracket, Fuel Tube[02.2016 -] GRMN86 |
SU003-01059 |
US $3.79 |
||
|
77283A
|
77283A
SU003-01058 Bracket, Fuel Tube Clamp, No.1[02.2016 -] GRMN86 |
SU003-01058 |
US $11.21 |
||
|
77285D
|
77285D
SU003-01034 Clamp, Fuel Tube, No.1[02.2016 -] GRMN86 |
SU003-01034 |
US $1.75 |
||
|
77286D
|
77286D
SU003-01033 Clamp, Fuel Tube, No.2[02.2016 -] GRMN86 |
SU003-01033 |
US $12.19 |
||
|
77286H
|
77286H
SU003-01035 Clamp, Fuel Tube, No.3[02.2016 -] GRMN86 |
SU003-01035 |
US $1.60 |
||
|
77286J
|
77286J
SU003-01029 Clamp, Fuel Tube, No.4[02.2016 -] GRMN86 |
SU003-01029 |
US $3.20 |
||
|
77419
|
77419
SU003-01095 Hose, Fuel, No.3[02.2016 -] GRMN86 |
SU003-01095 |
US $26.79 |
||
| replacement | |||||
|
77419
|
77419
SU003-07287 Hose, Fuel, No.3[02.2016 -] GRMN86 |
SU003-07287 |
US $47.04 |
||
|
77740F
|
77740F
SU003-01102 Tube, Fuel, No.1(For Charcoal Canister)[02.2016 -] GRMN86 |
SU003-01102 |
US $6.70 |
||
|
SU00300013
|
SU00300013
SU003-00013 New Genuine Part |
SU003-00013 |
US $0.54 |
||
|
SU00300068
|
SU00300068
SU003-00068
New Genuine Part
|
SU003-00068 |
— | ||
| replacement | |||||
|
SU00300068
|
SU00300068
SU003-03446 New Genuine Part |
SU003-03446 |
US $0.54 |
||
|
SU00301043
|
SU00301043
SU003-01043 New Genuine Part |
SU003-01043 |
US $9.68 |
||
|
SU00302128
|
SU00302128
SU003-02128 New Genuine Part |
SU003-02128 |
US $6.27 |
||
|
SU00302800
|
SU00302800
SU003-02800 BOLT FLG 6X16 |
SU003-02800 |
from US $2.33 |
||
|
SU00302989
|
SU00302989
SU003-02989 Piece, Rear Bumper |
SU003-02989 |
from US $1.18 |
||
|
SU00302997
|
SU00302997
SU003-02997 New Genuine Part |
SU003-02997 |
US $0.87 |
||
|
SU00304080
|
SU00304080
SU003-04080 New Genuine Part |
SU003-04080 |
US $0.87 |
||
| replacement | |||||
|
SU00304080
|
SU00304080
SU003-04081 New Genuine Part |
SU003-04081 |
US $1.02 |
||
