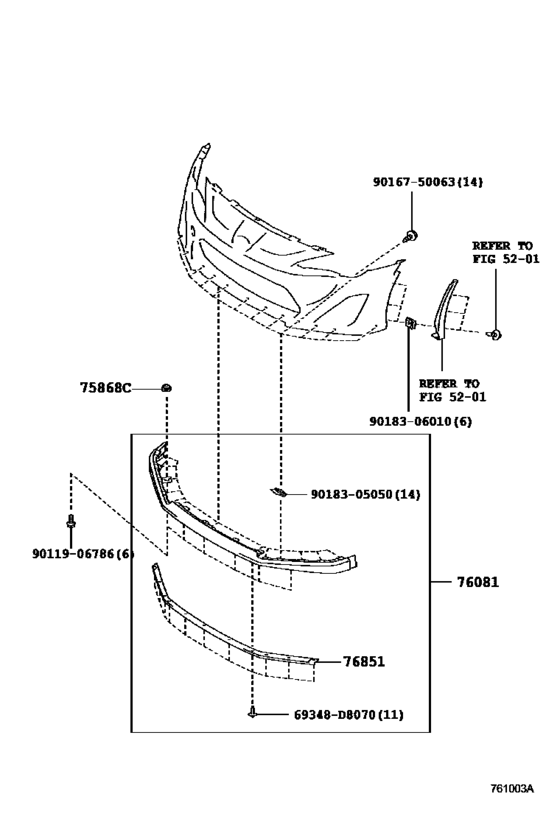

Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75868C
|
75868C
90467-06169 Clip[02.2016 -] GRMN86 |
90467-06169 |
from US $0.87 |
||
|
76081
|
76081
76081-18010 Spoiler Sub-Assy, Front[02.2016 -] GRMN86 |
76081-18010 |
US $965.33 |
||
|
76851
|
76851
76851-18010
Cover, Front Spoiler
[02.2016 -] GRMN86 |
76851-18010 |
— | ||
|
69348D8070
|
69348D8070
69348-D8070 Joint, Adjusting |
69348-D8070 |
US $6.05 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.61 |
||
|
9016750063
|
9016750063
90167-50063 SCREW PAN TAPPING |
90167-50063 |
from US $0.53 |
||
|
9018305050
|
9018305050
90183-05050 NUT SPRING |
90183-05050 |
from US $0.68 |
||
|
9018306010
|
9018306010
90183-06010 NUT |
90183-06010 |
US $2.51 |
