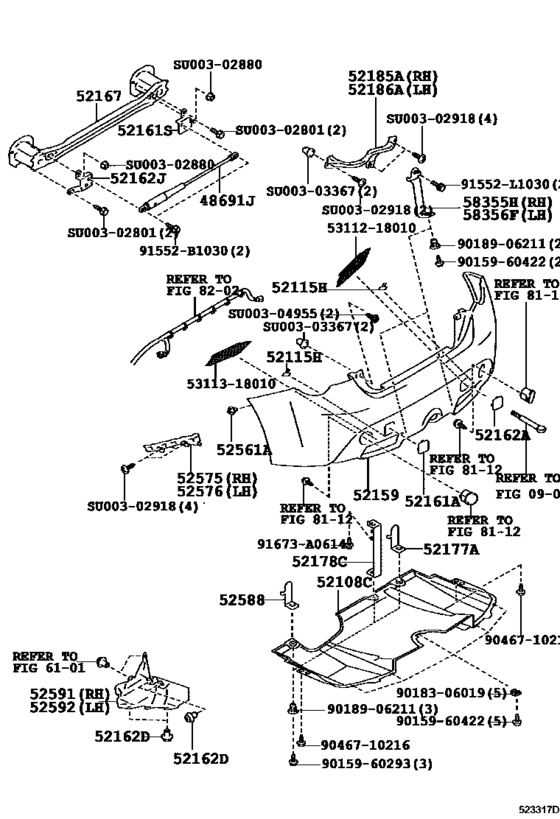

Rear Bumper & Bumper Stay ([02.2016 - ] (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48691J
|
48691J
48691-18010 Damper, Suspension Tower[02.2016 -] GRMN86 |
48691-18010 |
US $704.70 |
||
|
52108C
|
52108C
52108-18010 Extension Sub-Assy, Rear Bumper, Center[02.2016 -] GRMN86 |
52108-18010 |
US $848.85 |
||
|
52115H
|
52115H
52115-77010 Support, Rear Bumper Side[02.2016 -] GRMN86 |
52115-77010 |
US $8.96 |
||
|
52159
|
52159
52159-18901 Cover, Rear Bumper[02.2016 -] GRMN86 |
52159-18901 |
US $908.54 |
||
|
52161A
|
52161A
52161-18900 Piece, Rear Bumper, Rh[02.2016 -] GRMN86 |
52161-18900 |
US $18.20 |
||
|
52161S
|
52161S
52161-18010 Bracket, Rear Bumper Reinforcement, No.1[02.2016 -] GRMN86 |
52161-18010 |
US $308.67 |
||
|
52162A
|
52162A
52162-18900 Piece, Rear Bumper, Lh[02.2016 -] GRMN86 |
52162-18900 |
US $18.20 |
||
|
52162D
|
52162D
SU003-02984 Piece, Front Bumper[02.2016 -] GRMN86 |
SU003-02984 |
from US $2 |
||
|
52162J
|
52162J
52162-18010 Bracket, Rear Bumper Reinforcement, No.2[02.2016 -] GRMN86 |
52162-18010 |
US $308.67 |
||
|
52167
|
52167
SU003-01510
Reinforcement, Rear Bumper
[02.2016 -] GRMN86 |
SU003-01510 |
— | ||
| replacement | |||||
|
52167
|
52167
SU003-08594 BEAM COMPL R EU[02.2016 -] GRMN86 |
SU003-08594 |
US $244.80 |
||
|
52177A
|
52177A
52177-18010 Retainer, Rear Bumper Extension, Rh[02.2016 -] GRMN86 |
52177-18010 |
US $7.43 |
||
|
52178C
|
52178C
52178-18010 Retainer, Rear Bumper Extension, Lh[02.2016 -] GRMN86 |
52178-18010 |
US $11.94 |
||
|
52185A
|
52185A
SU003-01501 Bracket, Rear Bumper Side, Rh[02.2016 -] GRMN86 |
SU003-01501 |
from US $13.32 |
||
|
52186A
|
52186A
SU003-01502 Bracket, Rear Bumper Side, Lh[02.2016 -] GRMN86 |
SU003-01502 |
from US $12.64 |
||
|
52561A
|
52561A
SU003-02988 Clip(For Rear Bumper Retainer)[02.2016 -] GRMN86 |
SU003-02988 |
from US $1.46 |
||
|
52575
|
52575
SU003-01503
Retainer, Rear Bumper Side, Rh
[02.2016 -] GRMN86 |
SU003-01503 |
— | ||
| replacement | |||||
|
52575
|
52575
SU003-08223 BRKT SD R RH[02.2016 -] GRMN86 |
SU003-08223 |
from US $8.78 |
||
|
52576
|
52576
SU003-01504
Retainer, Rear Bumper Side, Lh
[02.2016 -] GRMN86 |
SU003-01504 |
— | ||
| replacement | |||||
|
52576
|
52576
SU003-08224 BRKT SD R LH[02.2016 -] GRMN86 |
SU003-08224 |
from US $8.74 |
||
|
52588
|
52588
52588-18010 Retainer, Rear Bumper End, Lh[02.2016 -] GRMN86 |
52588-18010 |
US $7.43 |
||
|
52591
|
52591
SU003-06126 Seal, Rear Bumper Side, Rh[02.2016 -] GRMN86 |
SU003-06126 |
US $27.22 |
||
|
52592
|
52592
SU003-06127 Seal, Rear Bumper Side, Lh[02.2016 -] GRMN86 |
SU003-06127 |
US $27.22 |
||
|
58355H
|
58355H
58355-18010 Bracket, Rear Bumper Arm, Rh[02.2016 -] GRMN86 |
58355-18010 |
US $15.72 |
||
|
58356F
|
58356F
58356-18010 Bracket, Rear Bumper Arm, Lh[02.2016 -] GRMN86 |
58356-18010 |
US $15.72 |
||
|
91552B1030
|
91552B1030
91552-B1030 BOLT, FLANGE |
91552-B1030 |
US $0.87 |
||
|
91552L1030
|
91552L1030
91552-L1030 New Genuine Part |
91552-L1030 |
US $1.31 |
||
|
91673A0614
|
91673A0614
91673-A0614 BOLT, FLANGE W-WASER |
91673-A0614 |
from US $0.63 |
||
|
5311218010
|
5311218010
53112-18010 Grille, Radiator, Rh Or Upper |
53112-18010 |
US $62.46 |
||
|
5311318010
|
5311318010
53113-18010 Grille, Radiator, Lh Or Lower |
53113-18010 |
US $62.46 |
||
|
9015960293
|
9015960293
90159-60293 New Genuine Part |
90159-60293 |
US $2.15 |
||
|
9015960422
|
9015960422
90159-60422 SCREW WWASHER |
90159-60422 |
from US $0.76 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.74 |
||
|
9018906211
|
9018906211
90189-06211 GROMMET SCREW |
90189-06211 |
from US $0.70 |
||
|
9046710216
|
9046710216
90467-10216 Clip, Engine Under Cover, No.2 |
90467-10216 |
from US $1.05 |
||
|
SU00302801
|
SU00302801
SU003-02801 New Genuine Part |
SU003-02801 |
US $1.79 |
||
|
SU00302880
|
SU00302880
SU003-02880 New Genuine Part |
SU003-02880 |
US $2.33 |
||
|
SU00302918
|
SU00302918
SU003-02918 New Genuine Part |
SU003-02918 |
US $0.72 |
||
|
SU00303367
|
SU00303367
SU003-03367 New Genuine Part |
SU003-03367 |
US $1.43 |
||
|
SU00304955
|
SU00304955
SU003-04955 New Genuine Part |
SU003-04955 |
US $2.15 |
||
